18

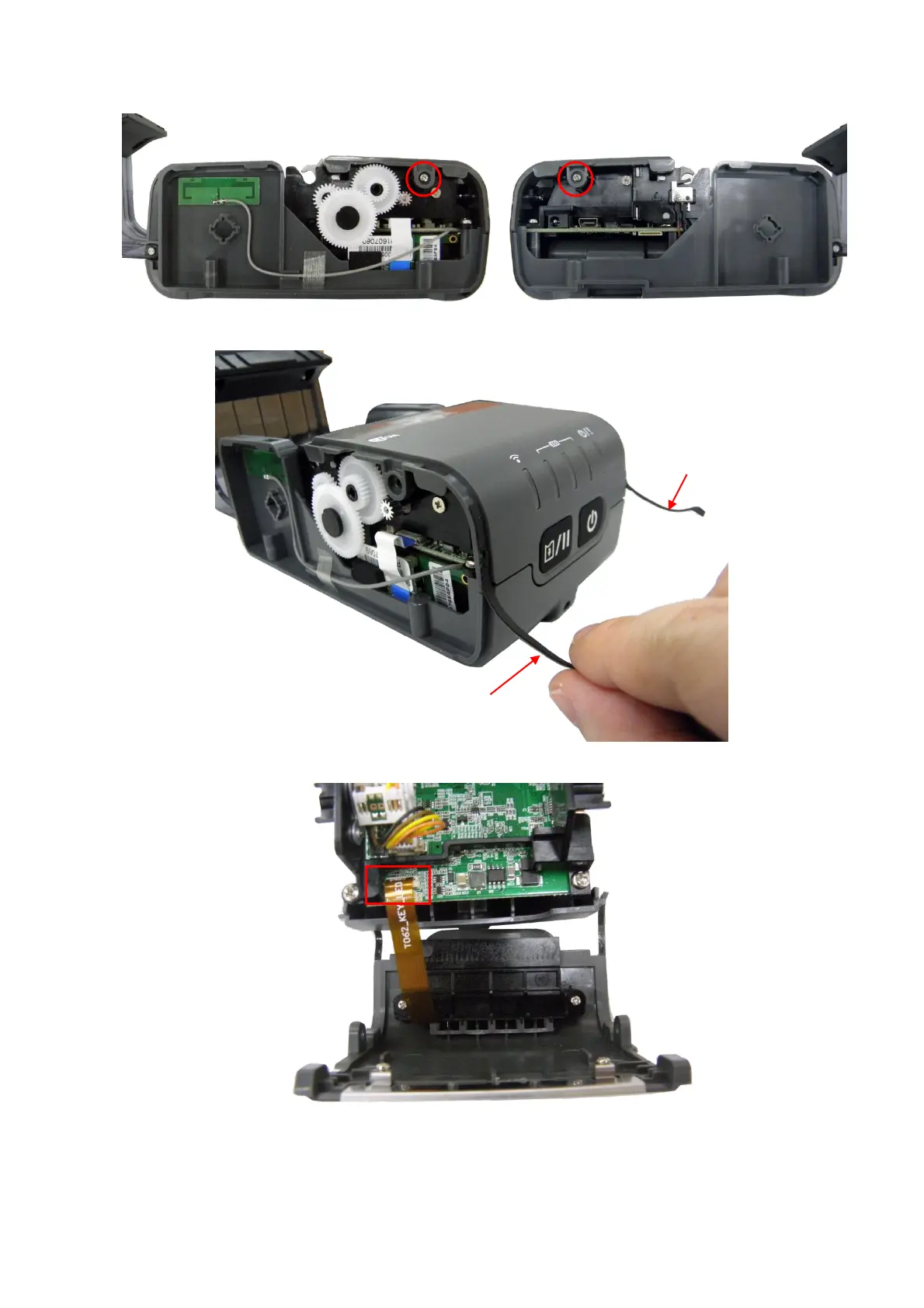

4. Remove the two screws on both side of the printer.
5. Peel off the waterproof labels on two sides of printer.
6. Disconnect the flat cable on the main board. Remove the top cover assembly.
Waterproof label
Waterproof label
