5

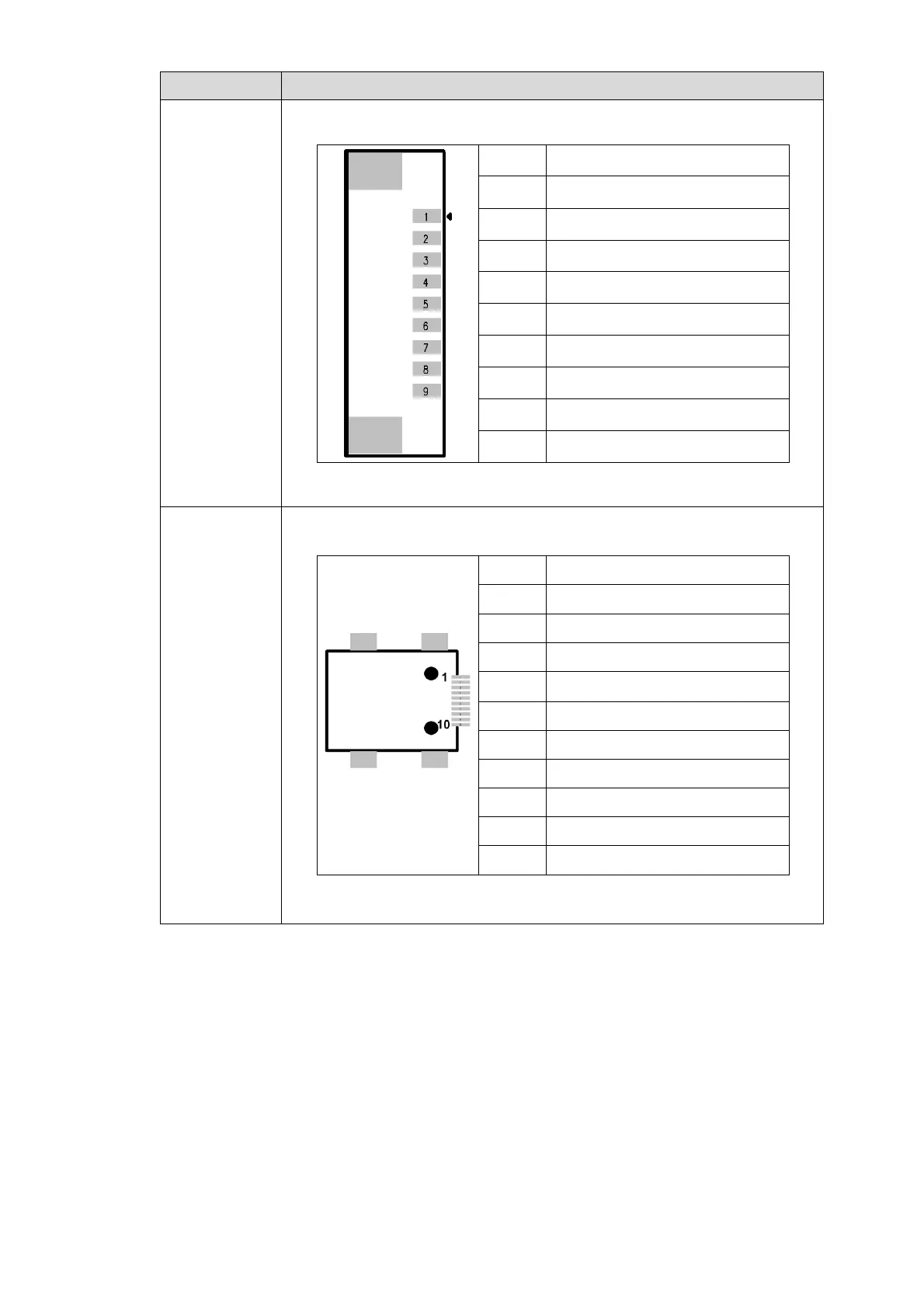

Connector
Description
CON1
Firmware download
Pin
Description
1
3.3V
2
Data0
3
Data1
4
Data2
5
Data3
6
Clock
7
Command
8
NC
9
GND
CON2
USB&RS-232
Pin
Description
1
NC
2
VBUS
3
TX
4
D-
5
RX
6
D+
7
RTS
8
NC
9
CTS
10
GND
