TSC DA310 Series User Manual

- 33 -
6. Select the printer in the left side of listed printers, the correspondent IP address will be shown in the right
side “IP address/Printer Name” field.

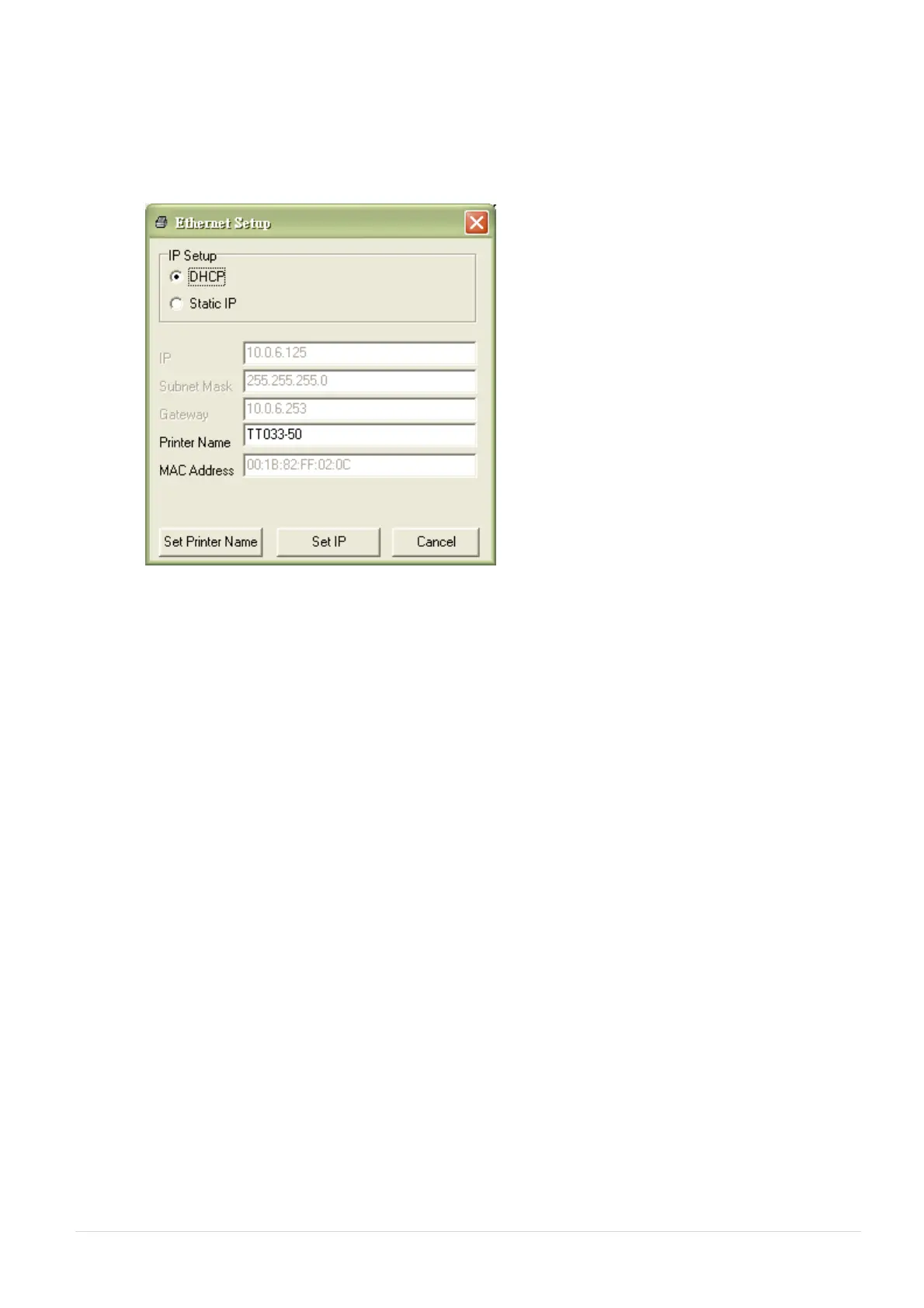

7. Click “Change IP Address” to configure the IP address obtained by DHCP or static.
The default IP address is obtained by DHCP. To change the setting to static IP address, click “Static IP”
radio button then enter the IP address, subnet mask and gateway. Click “Set IP” to take effect the
settings.
Users can also change the “Printer Name” by another model name in this fields then click “Set Printer
Name” to take effect this change.
Note: After clicking the “Set Printer Name” or “Set IP” button, printer will reset to take effect the
settings.
8. Click “Exit” button to exit the Ethernet interface setup and go back to Diagnostic Tool main screen.
Factory Default button
This function will reset the IP, subnet mask, gateway parameters obtained by DHCP and reset the printer
name.

TSC DA310 Series Specifications

General

Resolution	203 dpi
Memory	4 MB SDRAM
Interfaces	USB 2.0, Serial (RS-232), Ethernet
Interface	USB 2.0, Serial (RS-232), Ethernet
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF417, Data Matrix, QR Code
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40 ~ 60 °C (-40 ~ 140 °F)
Humidity	20% to 85% RH (non-condensing)
Power Supply	100-240V AC, 50/60Hz
Current Consumption	2.5A
