TSC DA320 Series User Manual
5
of 1
of 1 rating
49 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
-

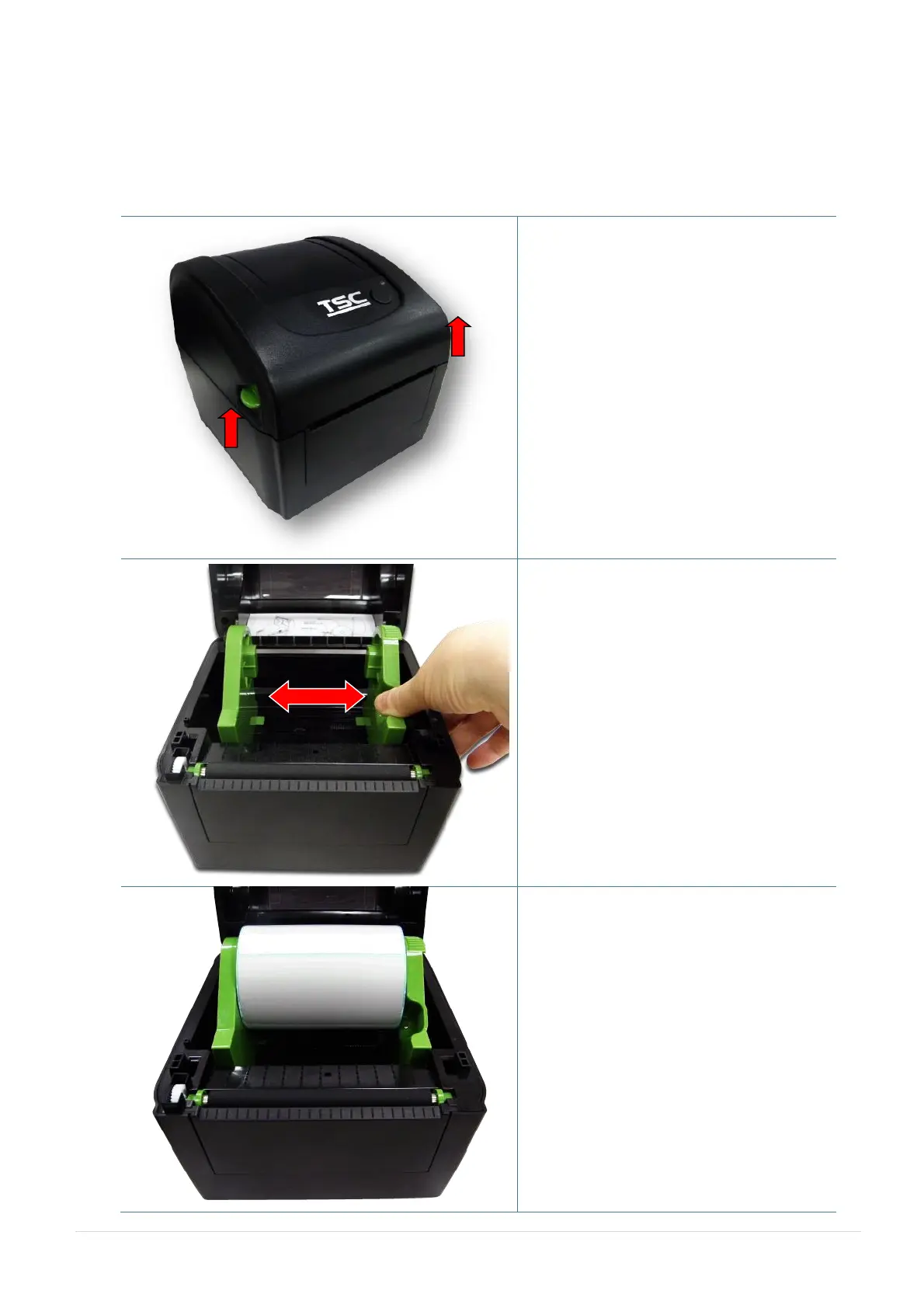

11
-
3.
2 Load
ing t
he
Media
3.2.
1 Loading t
he
Ro
ll Labels
1.
O
pe
n t
he printer
top cove
r by
pressing
up
th
e
to
p cover
o
pen tabs l
ocated on
ea
ch
sid
e
of the print
er.
2.
S
e
p
a
rate th
e media hold
e
rs t
o
the label
ro
ll
w
idth.
3.
P
l
ace the r
o
ll betwe
e
n
the holders and
clo
s
e
them
o
nto the c
ore.
19
21
Table of Contents
Table of Contents
8
Introduction
10
Product Introduction
10
Product Features
11
Printer Standard Features
11
Printer Optional Features
12
General Specifications
13
Print Specifications
13
Media Specifications
14
Operations Overview
15
Unpacking and Inspection
15
Printer Overview
16
Front & Rear
16
Interior View
17
LED and Button Function
18
LED Indication
18
Regular Button Function
18
Setup
19
Setting up the Printer
19
Loading the Media
20
Loading the Roll Labels
20
Loading External Media
22
Loading Media in Peel-Off Mode (Option for DA220 Series)
24
Loading Media in Cutter Mode (Option for DA220 Series)
26
Install the Adapter for 1.5" Paper Core (Option)
27
Power-On Utilities
28
Gap/Black Mark Sensor Calibration
29
Gap/Black Mark Calibration, Self-Test and Dump Mode
30
Self-Test
31
Dump Mode
33
Printer Initialization
34
Set Black Mark Sensor as Media Sensor and Calibrate the Black Mark Sensor
35
Set Gap Sensor as Media Sensor and Calibrate the Gap Sensor
35
Skip AUTO.BAS
36
Diagnostic Tool
37
Start the Diagnostic Tool
37
Printer Function
38
Setting Ethernet by Diagnostic Tool (for DA220 Series)
39
Using USB Interface to Setup Ethernet Interface
39
Using RS-232 Interface to Setup Ethernet Interface
40
Using Ethernet Interface to Setup Ethernet Interface
41
Troubleshooting
44
LED Status
44
Print Problem
45
Maintenance
46
Revise History
47
Other manuals for TSC DA320 Series
Service Manual
44 pages
5
Based on 1 rating
Ask a question
Give review
