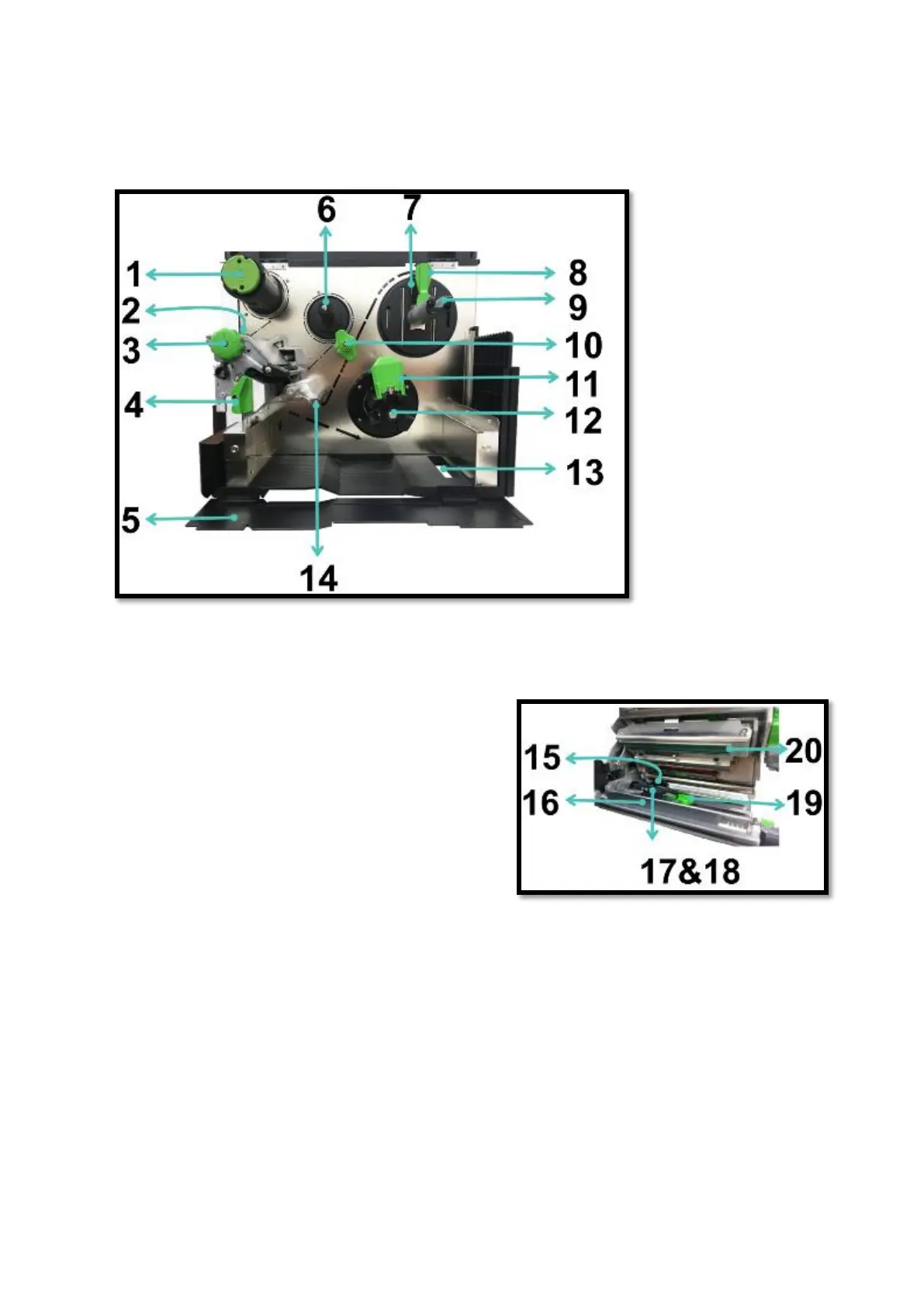

For MH241P Series
1. Ribbon rewind spindle
2. Print head pressure position adjustment knob
3. Print head pressure adjustment knob
4. Print head release lever
5. Printer lower cover
6. Ribbon supply spindle
7. Media near end sensor
(movable, MH241T/MH241P Series only)
8. Label roll guard
9. Label supply spindle
10. Media guide bar & rear label guide
11. Media rewind guide
12. Media rewind spindle
13. External label entrance chute
14. Damper
15. Ribbon sensor
16. Platen roller
17. Black mark sensor (shown as)
18. Gap sensor (shown as )
19. Label guide
