- 27 -

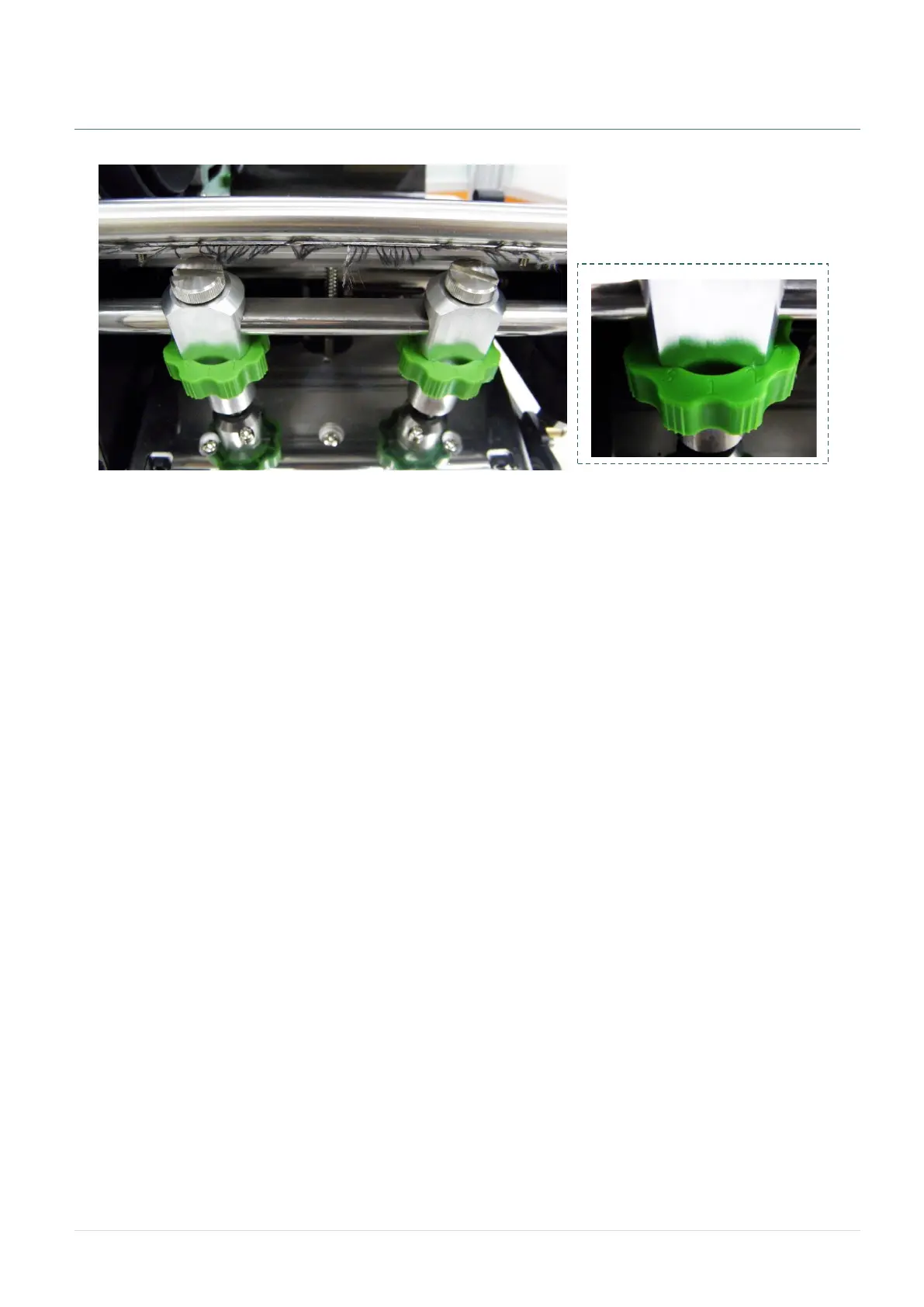

4. Moveable Print Head Pressure Adjustment Knob
The moveable print head pressure adjustment knob has 5 levels of adjustment. Because the printer’s paper
alignment is to the left side of mechanism, different media widths require different pressure to print correctly.
Therefore it may require to adjust the pressure knob to get your best print quality. For example, if the label width
is 4”, adjust both print head pressure adjustment knobs to the same level. If the label is less than 2” wide,
increase the left side print head pressure by rotating the adjustment knob clockwise and decrease the right side
pressure by rotating the adjustment knob counter-clockwise to level 1.
