25

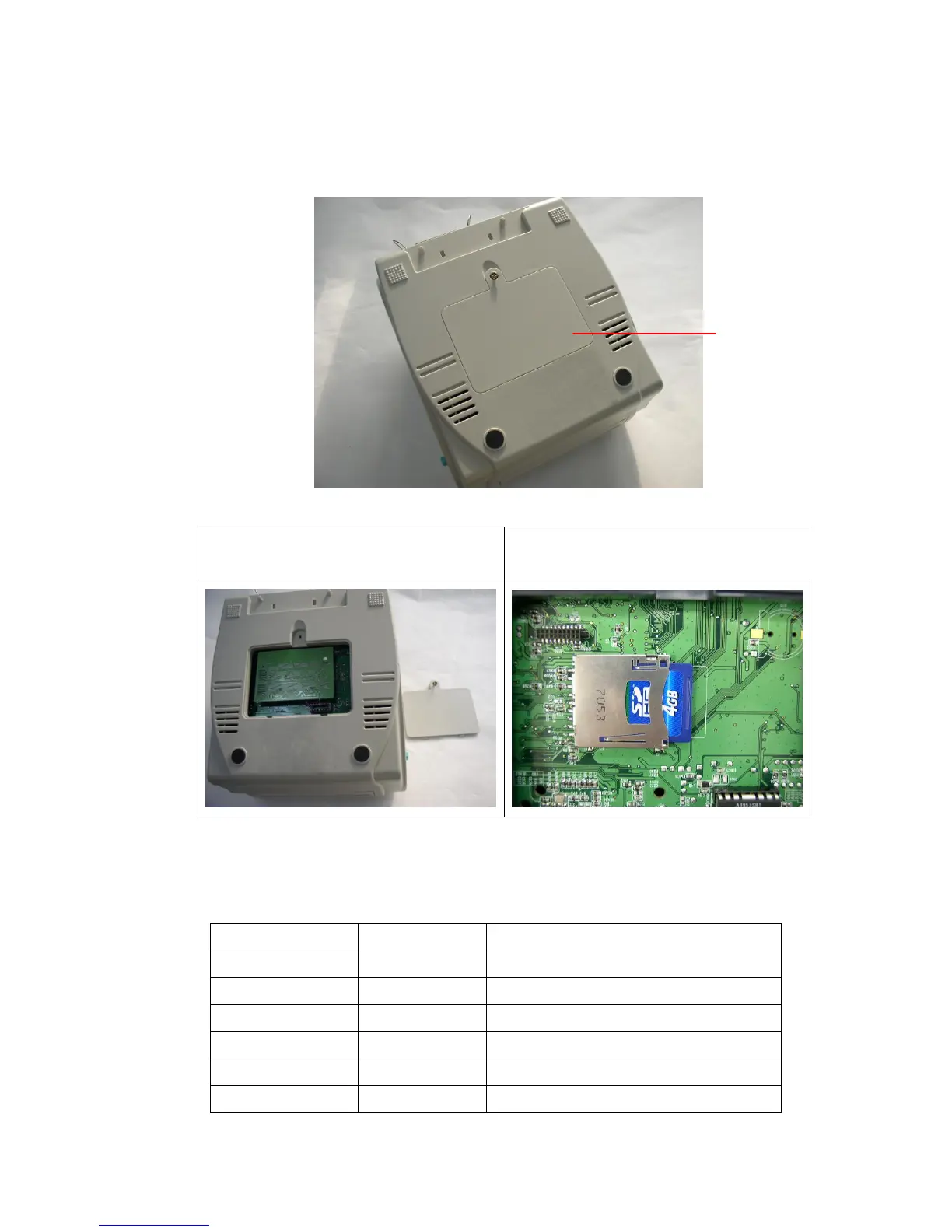

3.10
.
Inst
all Memo
r
y Card
1. Upside down the printer
.
2. Remove 1 screw and open the memory card cover
.
3. Plug the memory card on main board.
TDP-245 Model
(Option)
TDP-245 Plus/T
DP-247/TDP-
345 Model
(SD card)
4. Revert the memory card cover
.
* Recomm
ended SD card specificati
on.
SD card spec
SD card capacit
y
Approved SD card m
anufacturer
V1.0, V1.1
128 MB
SanDisk, Trans
cend
V1.0, V1.1
256 MB
SanDisk, Trans
cend, Panasonic
V1.0, V1.1
512 MB
SanDisk, Trans
cend, Panasonic
V1.0, V1.1
1 GB
SanDisk, Tr
anscend, Panasonic
V2.0 SDHC CLA
SS 4
4 GB
V2.0 SDHC CLA
SS 6
4 GB
SanDisk, Trans
cend, Panasonic
Memory Card
Co
v
er
S
D
Ca
r
d
27
29
Table of Contents
Default Chapter
2
Table of Contents
2
Copyright Declaration
4
Compliances
4
1 Introduction
6
2 Getting Started
6
Unpacking and Inspection
6
Equipment Checklist
6
Printer Parts
8
Front View
8
Rear View
8
Setup
9
Setting up the Printer
9
Loading Label Stock
10
Peel-Off Installation Assembly (Option)
12
Loading Label for Peel-Off Mode (Option)
15
External Label Roll Mount Installation (Option)
17
Cutter Module Installation (Option)
18
Loading Label in Cutter Mode
21
Diagnostic Tool
22
Start the Diagnostic Tool
22
Printer Function (Calibrate Sensor, Ethernet Setup, RTC Setup
23
Setting Ethernet by Diagnostic Utility (Option)
24
Using USB Interface to Setup Ethernet Interface
24
Using RS-232 Interface to Setup Ethernet Interface
25
Using Ethernet Interface to Setup Ethernet Interface
26
Install Memory Card
28
4 Power on Utilities
30
Gap/Black Mark Sensor Calibration
30
Gap/Black Mark Calibration, Self-Test, Dump Mode
31
Dump Mode
35
Printer Initialization
36
Set Black Mark Sensor as Media Sensor and Calibrate the Black Mark Sensor
37
Set Gap Sensor as Media Sensor and Calibrate the Gap Sensor
37
Skip AUTO.BAS
37
5 Maintenance
38
Cleaning
38
6 Troubleshooting
40
LED Status
40
Print Quality
41
7 LED and Button Operation
42
Led
42
Button Operation
42
Revise History
46
