Dump mode
Printer will enter dump mode after printing printer configuration. In the dump mode, all
characters w
ill be
printe
d
in
2 columns
as follow
ing.
The le
ft
side
characters
are received
from your system and right side data are the c
orresponding hexadecimal value of
the
characters. It allows users or engineers to verify and debug the program.

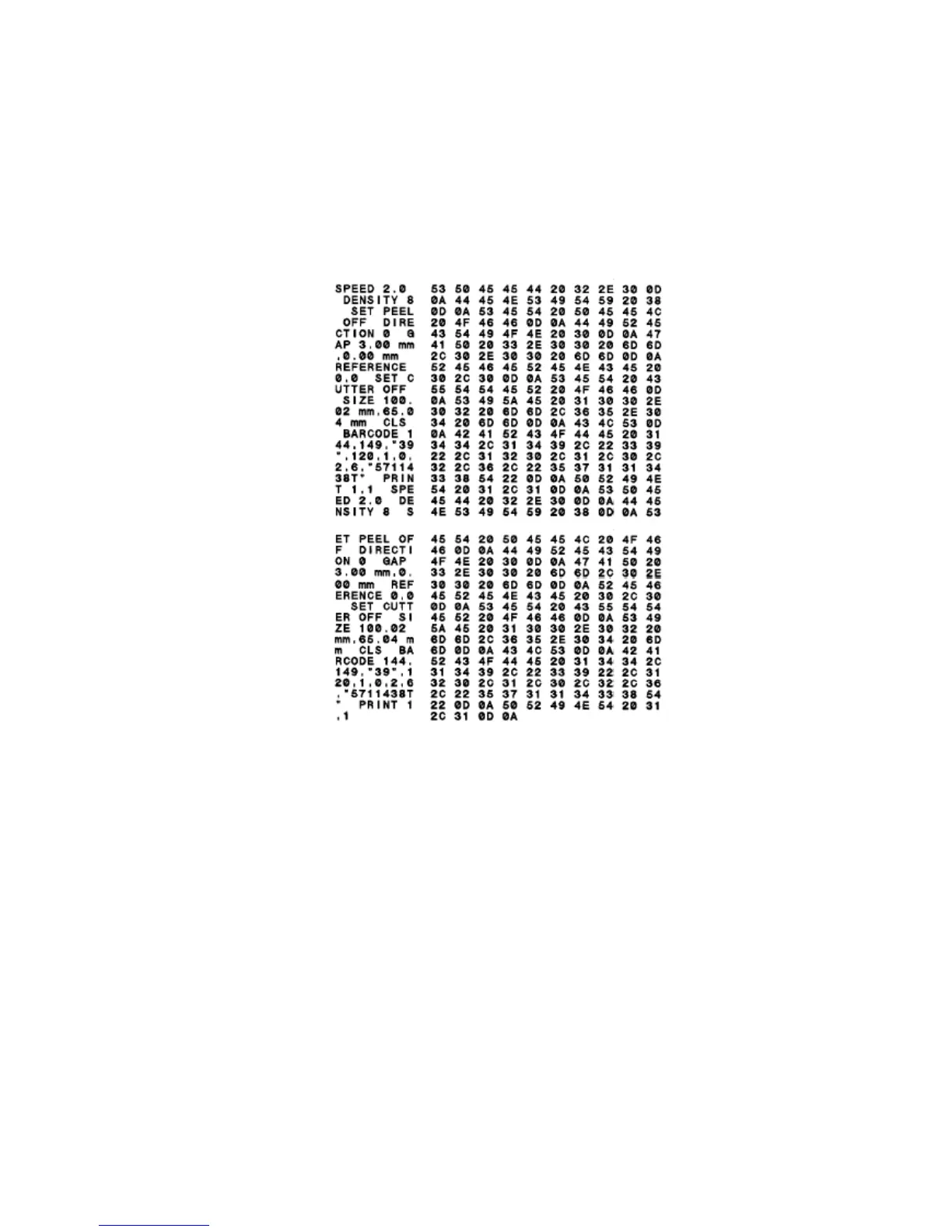

Dump mode printout
Note
：
T
urn off and on t
he power switch to reset the pr
inter
for norm
al printing.
