3.4 Loading Label for Peel-off Mode (Option)
1. Open the peel-off module by pulling it out.
2. Thread the label, printing side facing up, through the label guides and place it on top
of the platen.
3. Thread the label through the liner opening, which is beneath the roller.
4. Adjust the black center-biased label guides by turning adjustment knob to fit the
edge of the label backing.
5. Push the peel-off panel back to the printer.
6. Close the top cover.
Note:
Please refer to videos on TSC YouTube or driver CD.

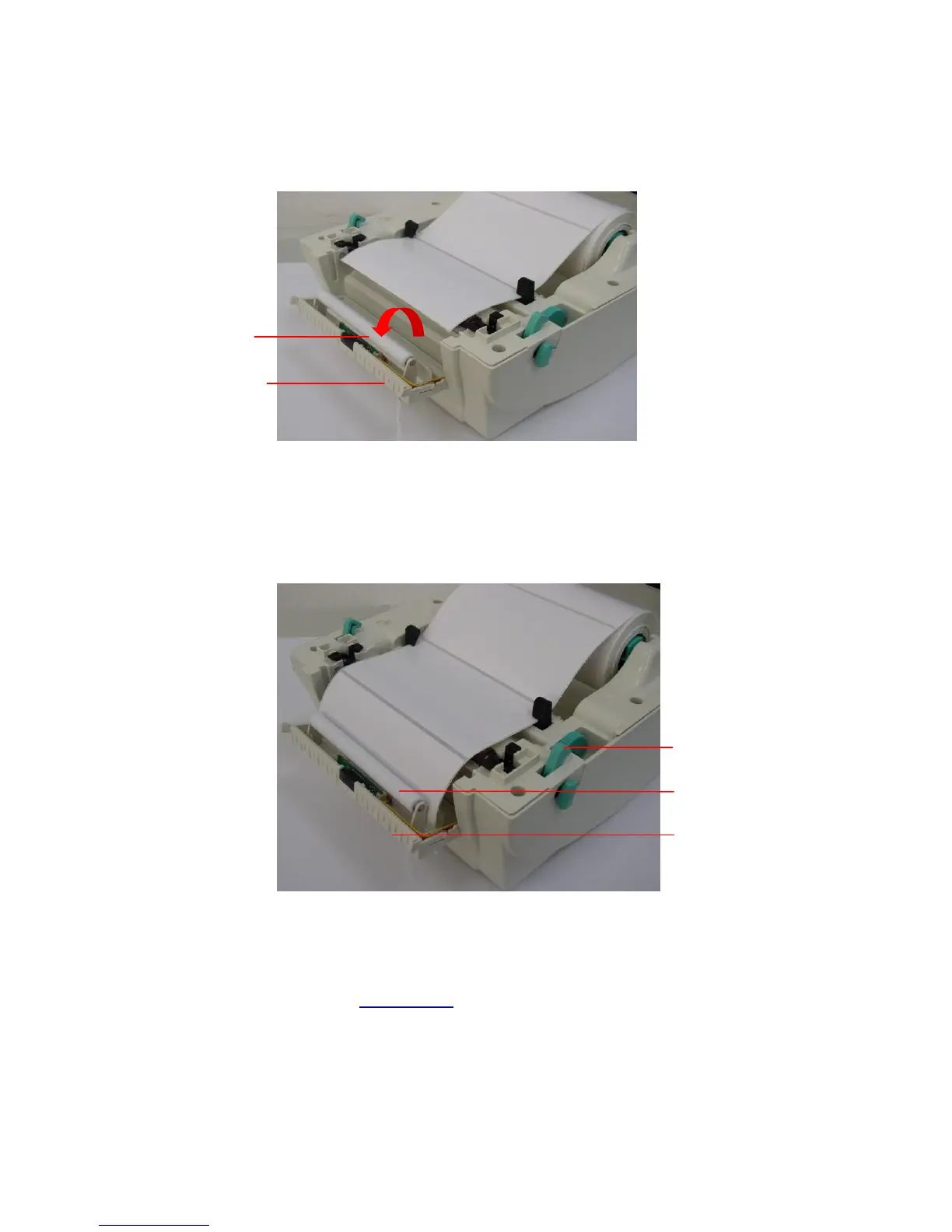

Peel-off Panel
Peel-off Roller
Roller
Adjustment Knob
Peel-off panel
