Dump mode

Printer will enter dump mode after printing printer configuration. In the dump mode, all

characters will be printed in 2 columns as following. The left side characters are received

from your system and right side data are the corresponding hexadecimal value of the

characters. It allows users or engineers to verify and debug the program.

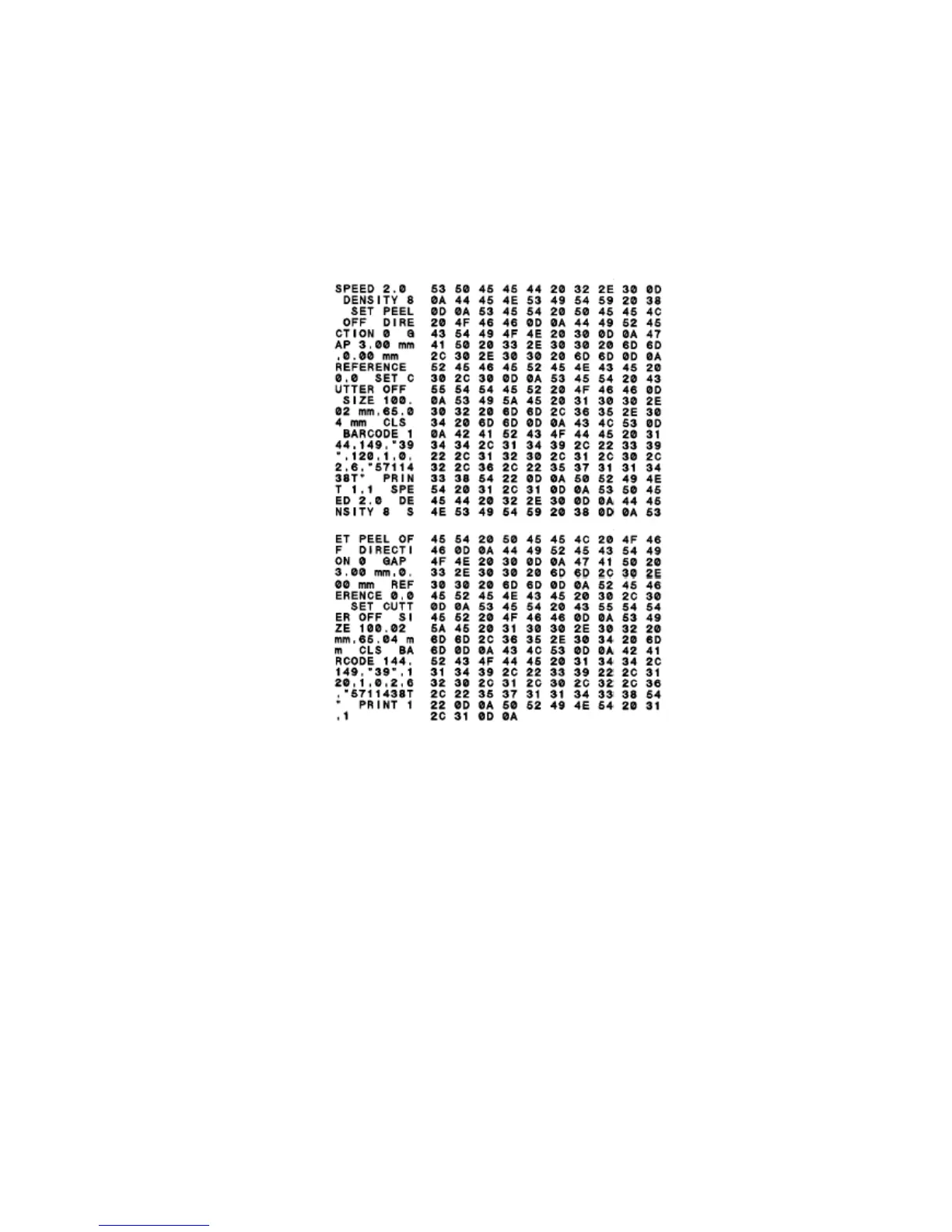

Dump mode printout

Note：

Turn off and on the power switch to reset the printer for normal printing.
