TSC TT045-50 Series User Manual

10

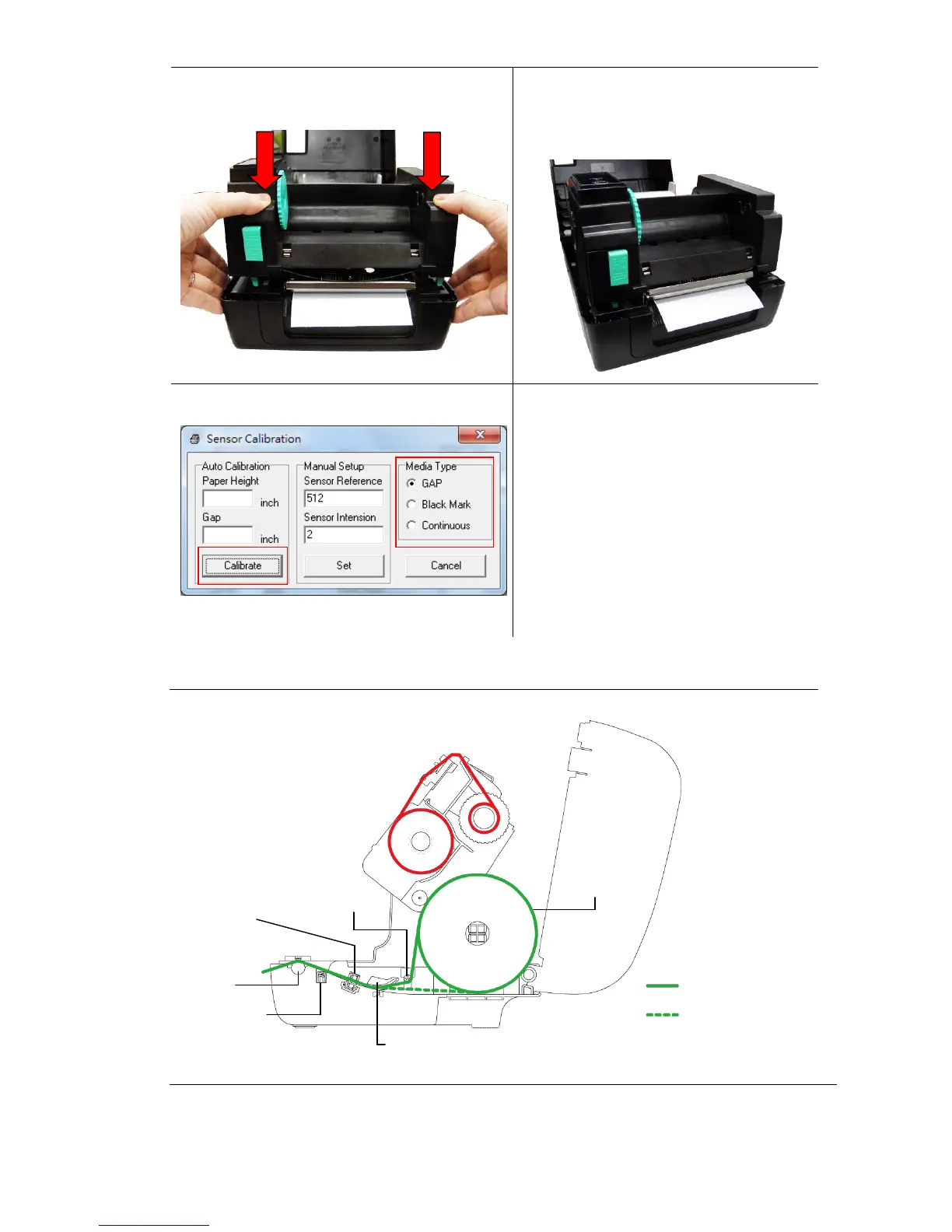

6. Close the print head mechanism by
both hands and make sure the
latches are engaged securely.
7. Use “Diagnostic Tool” to set the
media sensor type and calibrate the
selected sensor. (Start the
“Diagnostic tool”  Select the
“Printer Configuration” tab  Click
the “Calibrate Sensor” button )
Please refer to section 5.3.
Note: Please calibrate the gap/ black mark sensor when changing media.
 Media loading path
Media
Media bar
Media guide
Gap sensor
Platen roller
Black mark sensor
2
1
Path for outside wound
Path for inside wound
