14

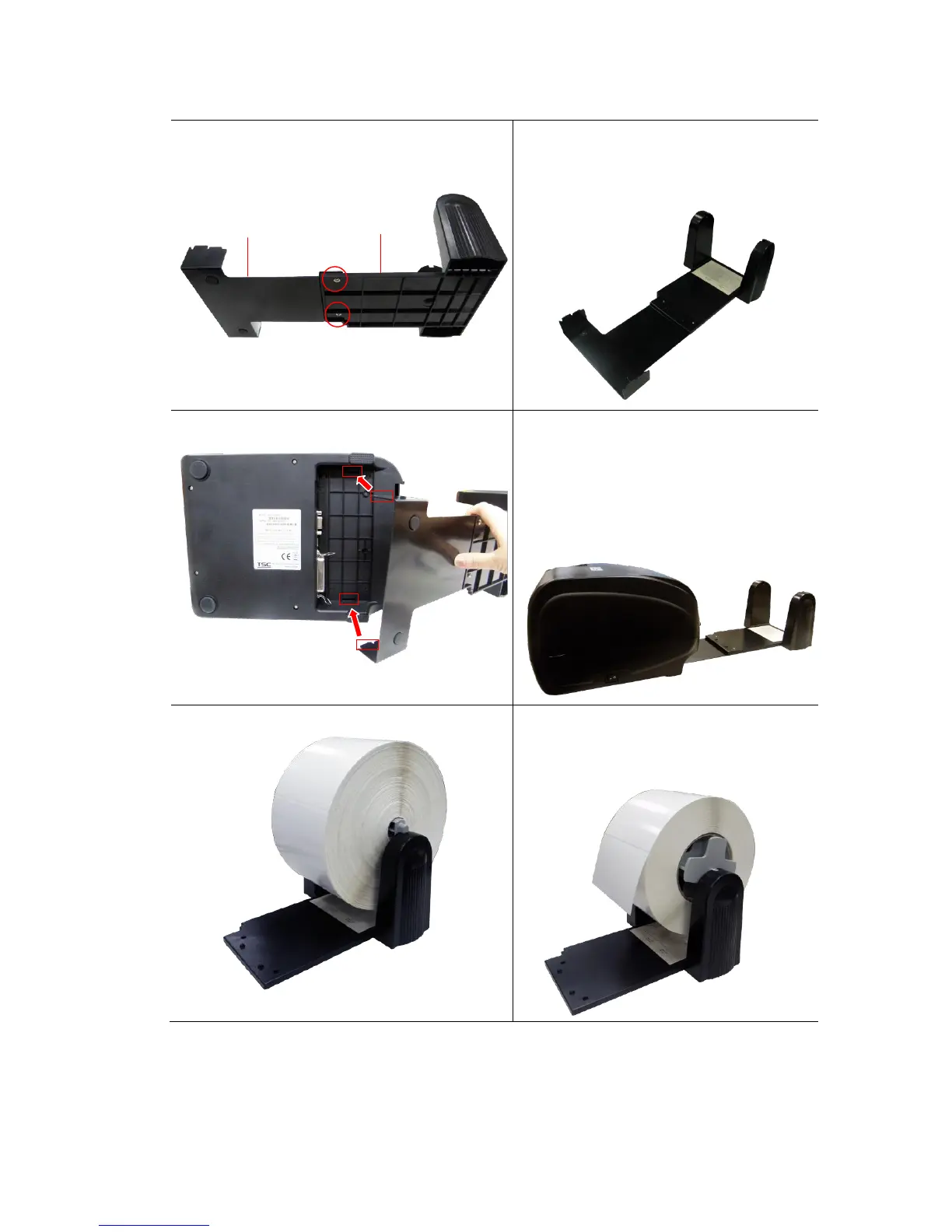

3.3.4 External Label Roll Mount Installation (Option)
1. Use two screws to install the
extended plate onto the external
label roll mount.
2. Attach the extended plate on the
bottom of the printer. (If you
purchase the external label roll
mount only, just need to put it on the
rear of printer for using.)
3. Insert a 3 (or 1) label spindle into a
paper roll. And install it on the
external paper roll mount.
External label
roll mount
Extended
plate
1 label
spindle
3 label
spindle
