7. Wind the label roll until it becomes adequately taut.
8. Close the printer cover and press the FEED button three or four times until the
green ON-LINE indicator illuminates.
9. When the printer is out of ribbon or media, the ON-LINE LED will not
illuminate and the ERR. LED will flash. Reload the ribbon or media without
turning off the printer power. Press the FEED button three or four times until
the ON-LINE LED illuminates. The printing job will be resumed without data
loss.

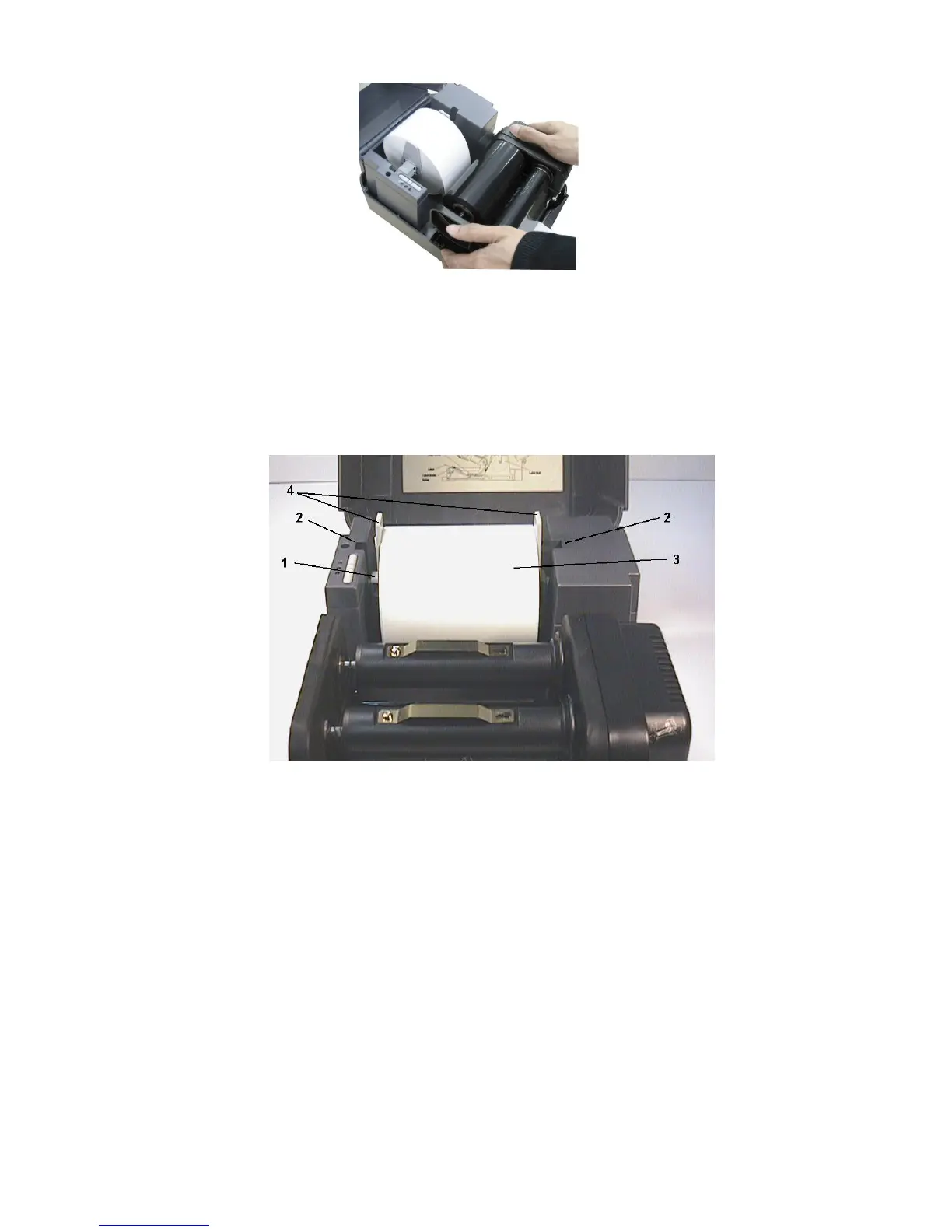

Inserting label supply roll into label roll mount
1. Label Supply Roll Spindle
2. Label Roll Mount
3. Label Roll
4. Fixing Tabs
To Next Page
