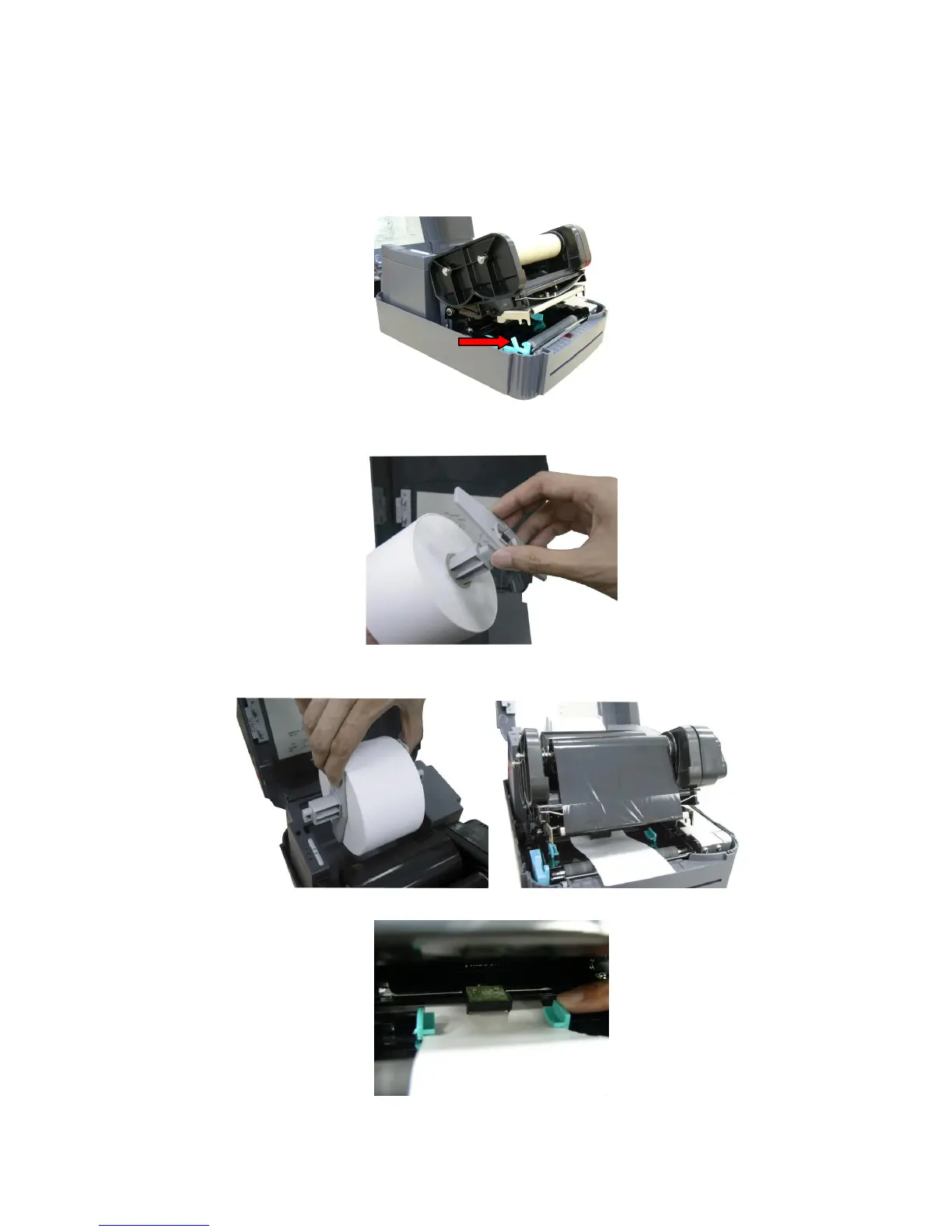

3.2 Loading Label and Tag Stock

1. Open the printer cover.

2. Disengage the printer carriage by pulling the printer carriage release lever on

the left side of the platen.

3. Slide the label supply roll spindle through the core of a label roll and attach the

fixing tabs onto the spindle.

4. Place the label roll into the label roll mount. Feed the label under the carriage

and over the platen.

5. Adjust the label guide to fit the width of the media.

6. Engage the printer carriage.

TSC TTP-342 Pro Series User Manual
