Back Panel
As shown in Figure 3-2, the back panel of the Model 3775 CPC has
power and data connections, analog input/output connections,
pump exhaust port, makeup air port, butanol fill and drain ports,
and cooling fan. The function of the ports and connectors are
clearly labeled.
AC Connector and Switch
Plug the supplied AC power cable into this receptacle. The
instrument power switch is integrated above the AC receptacle.
USB Communication Port
The Model 3775 CPC provides a USB port for use with the TSI
Aerosol Instrument Manager
®
software included with the
instrument. When USB communications are used with the
software, the computer automatically recognizes the CPC as a TSI
instrument. Additional information on USB communications is
found in
Chapter 7 and also in the Aerosol Instrument Manager
software manual.
Note: Up to three CPCs can be simultaneously connected to one
computer running Aerosol Instrument Manager software with
USB connections.

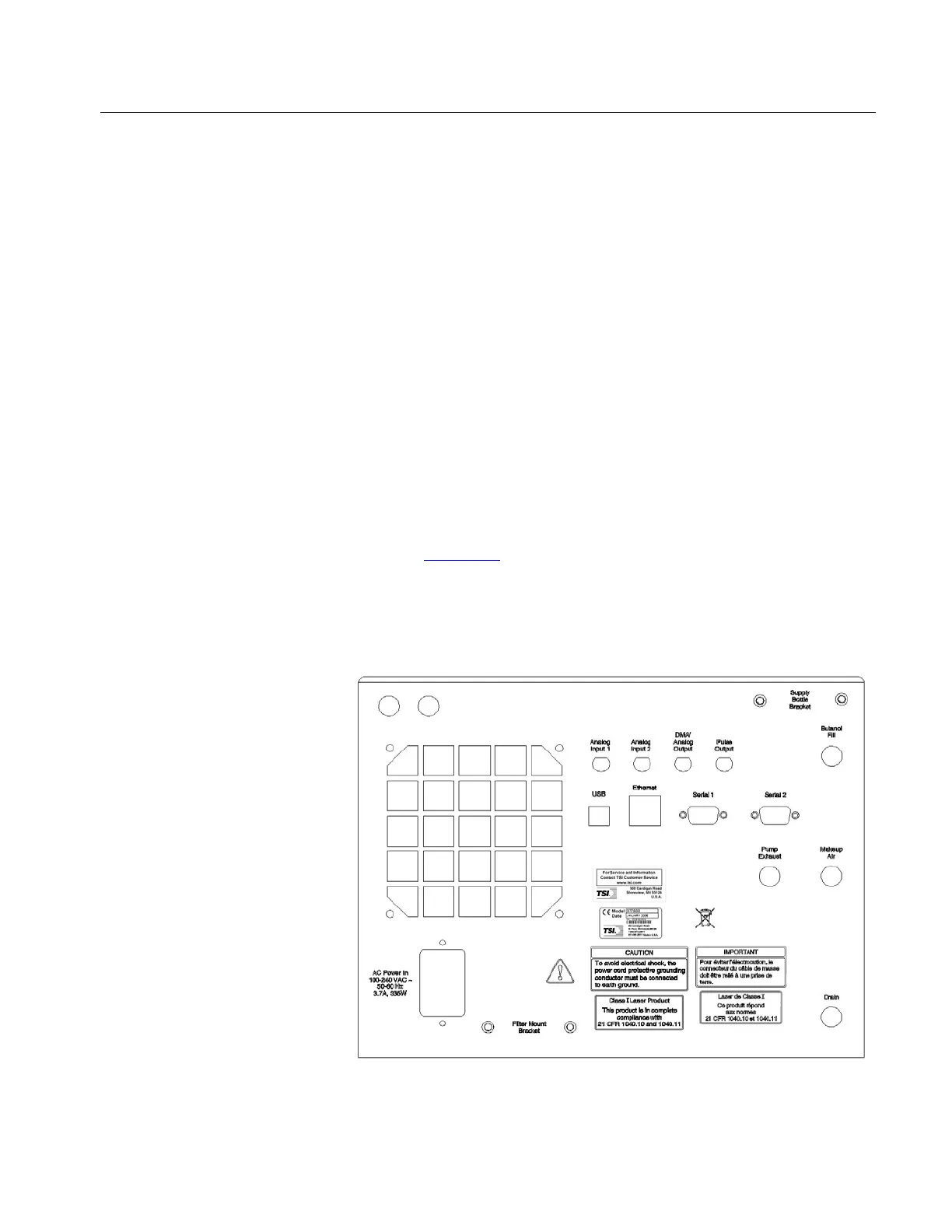

Figure 3-2
Back Panel of the Model 3775 CPC
