Unpacking and Setting Up 2-29

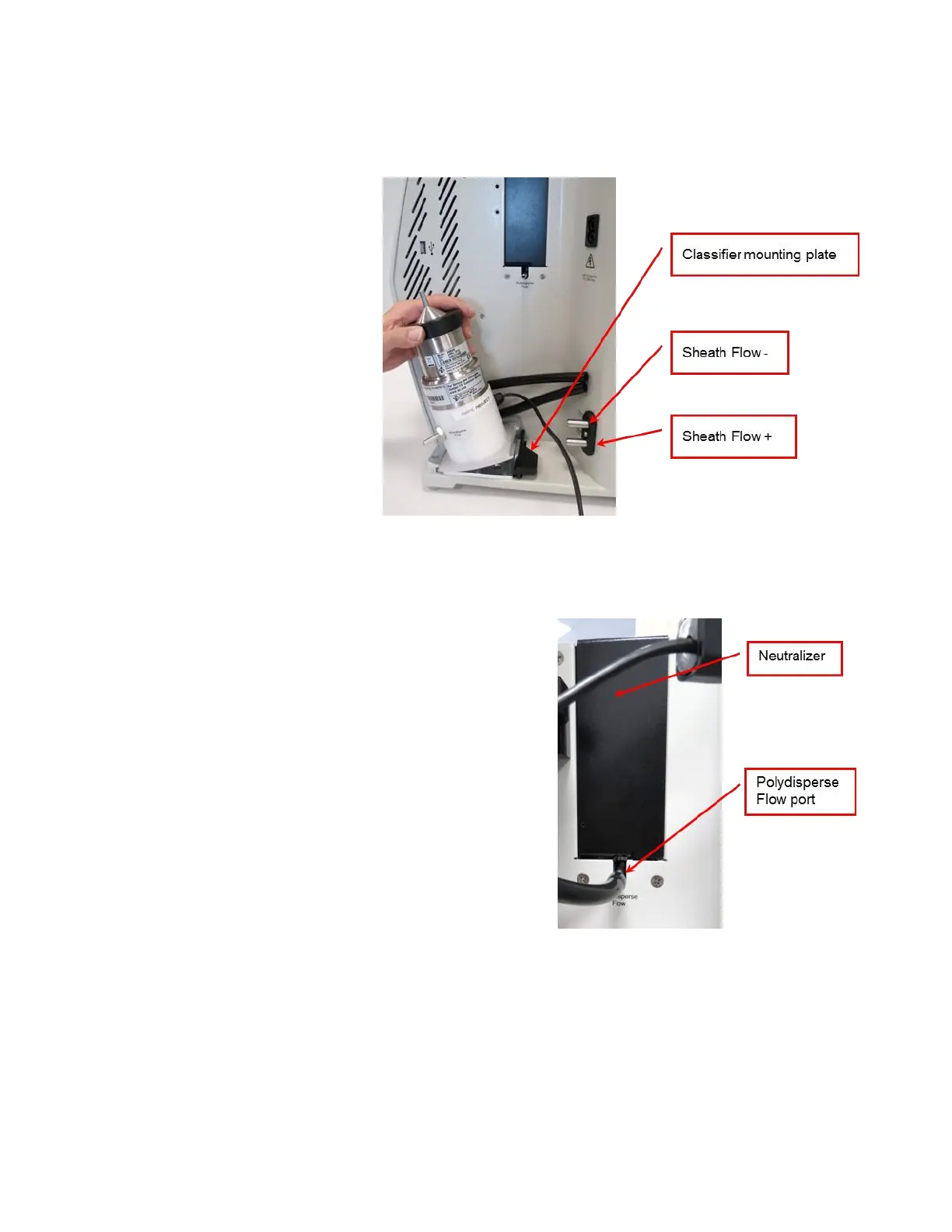

5. Place the base of the DMA at an angle over the classifier mounting
plate and snap the DMA into place. The curved side of the DMA base
faces away from the classifier.
6. Push the tubing connected to the Sheath Flow – fitting on the manifold
to the Sheath Flow – fitting on the classifier (the upper fitting).
7. Push the tubing connected to the Sheath Flow + fitting on the manifold
to the Sheath Flow + fitting on the classifier (the lower fitting).
8. If you are operating
the classifier with a
neutralizer installed,
you must connect the
Polydisperse flow.
Remove the ¼-inch
black conductive
tubing from the
Accessories Kit. Using
the provided tube
cutter, or a clean razor
blade, cut one 4-inch
of tubing.
9. Push one end of the
tubing onto the
Polydisperse Flow
port.
