TTK FG-SYS - Page 15

15

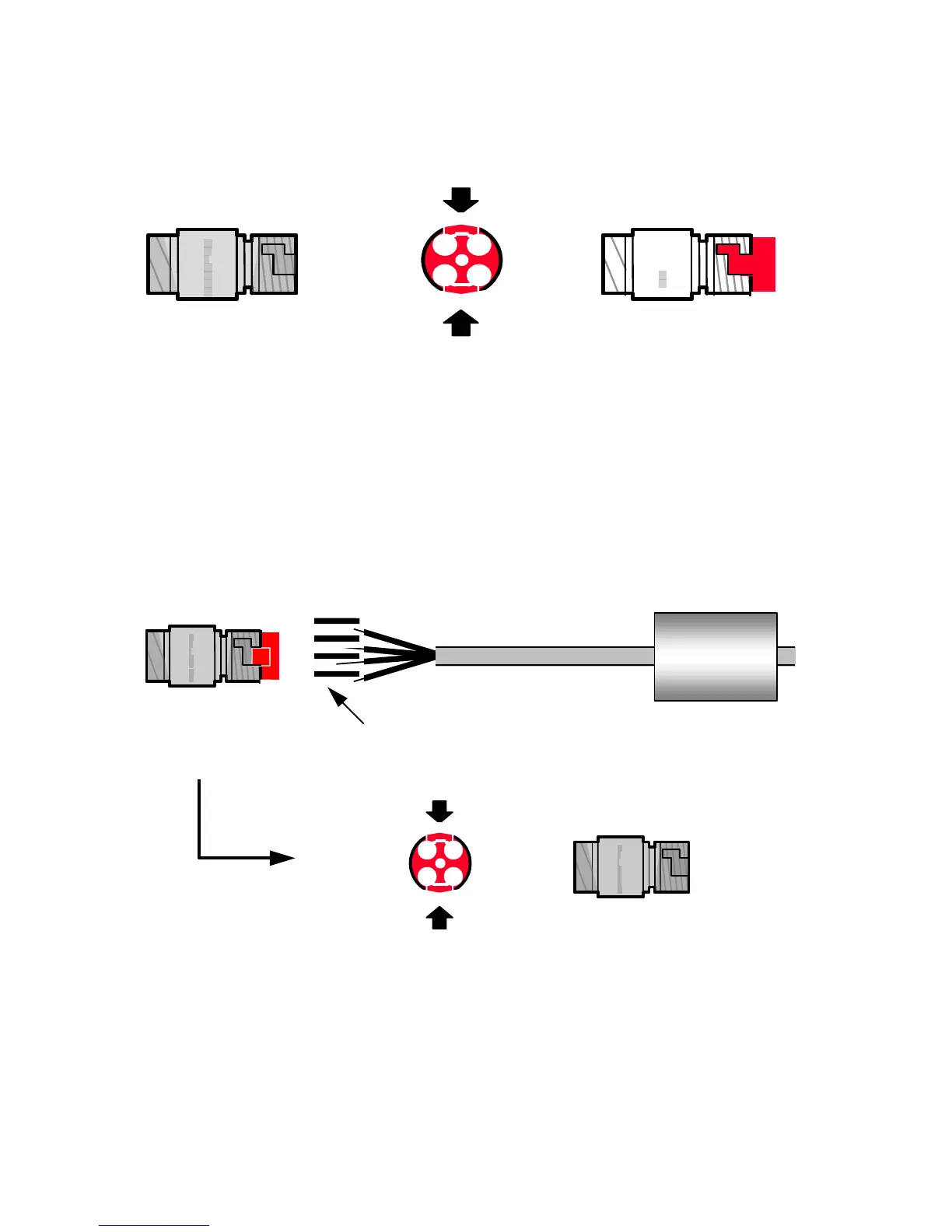

Prepare the Male Connector (the longest).
Encase the 4 contacts in the connector,
Draw the red plate while pressing on the sides (It is normal that it entirely did not leave).
Male Connector
C
L
I
P
P
E
R
Press and Draw
The red plate left
C
L
I
P
P
E
R
1
4
3
2
Insert the four contacts then, by respecting the following code:
Red Wire : point n°1 of Male Connector
Black Wire + Shielding : point n°2 of Male Connector
White Wire : point n°3 of Male Connector
Green Wire : point n°4 of Male Connector
And then, give the red plate to its place while pressing on the sides.
4 Male Contacts
45 mm Heat Shrinkable Tube
1
2
3
4
Male Connector
Insert the 4 Contacts
C
L
I
P
P
E
R
The red plate is re-entry
The contacts are blocked
Press and Draw
1
4
3
2
Green
White
Black
Red
C
L
I
P
P
E
R
The wires and contacts are now blocked. This process makes it possible to remove
the contacts very easily if necessary.
Caution: If the contacts are not entirely inserted in the connector, the red plate does
not return.
