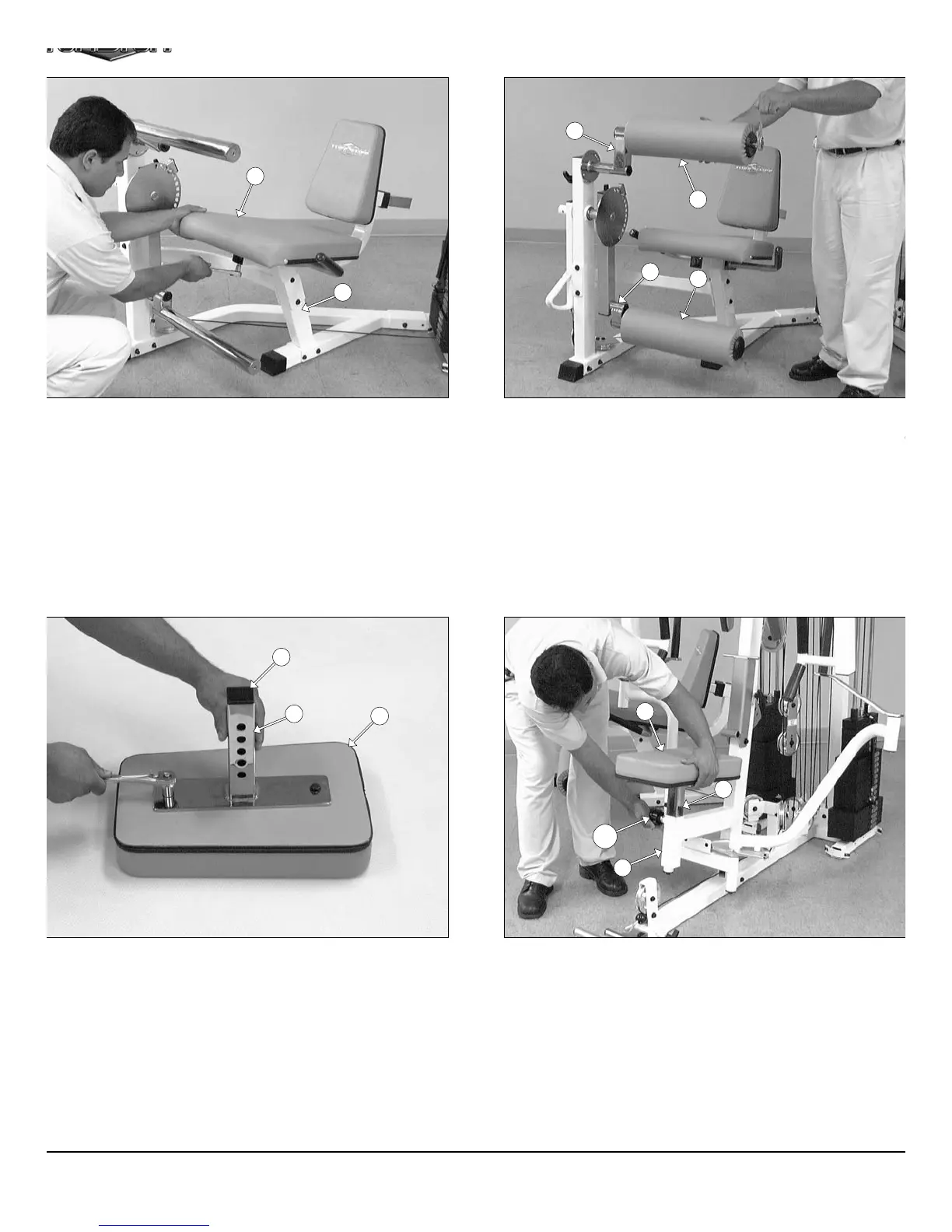

IG. 68 Attach Leg Extension Seat Pad (#48) to the Leg Exten-
i
on Seat Frame (#12) using four Hex Head Cap Screws 3/8-16 X 1
/
4 (#112), and four Flat Washers SAE 3/8” (#91).
IG. 70 Using a rubber mallet, insert one Plastic Insert Cap 1 3/4
#
86) into the tube-end of the Bench Press Adjustable Seat Frame
#
44). Next, attach the Bench Press Adjustable Seat Frame (#44) to
h
e Bench Press Seat Pad (#35) using two Hex Head Cap Screws 3/8-
6
X 1 1/4 (#112), and two Flat Washers SAE 3/8” (#91).
FIG. 69 Next, insert one of the Foam Rolls 2 X 5 1/2 X 16 (#51)
t
the Top Adjustable Leg Holder Tube (#32) and secure it into pla
c
using one Hex Head Cap Screw 3/8-16 X 1 1/2 (#111). Next, insert th
e
other Foam Roll 2 X 5 1/2 X 16 (#51) to the Swivel Foam Roll Tub
(#29) and secure it into place using one Hex Head Cap Screw 3/8-16
X
1 1/2 (#111).
FIG. 71 Attach the assembled Bench Press Adjustable Se
a
Frame (#44) to the Front Frame (#3).
19
48
12
32
51
29
51
35
86
44
138
35
44
3
