2.2 Chair Assembly
2.2.1 Seat Rotation
You can rotate the chair 360 degrees in the horizontal plane. To allow rotation turn the Rotation Chair
Handle (RCH) in counter clockwise direction and place the chair in the desired position. Firmly tighten
the RCH by turning it clockwise. There are two RCHs, one at each side, right under the seat. Record
the rotation position by reading the Seat Rotation Scale located around the tube of the chair.

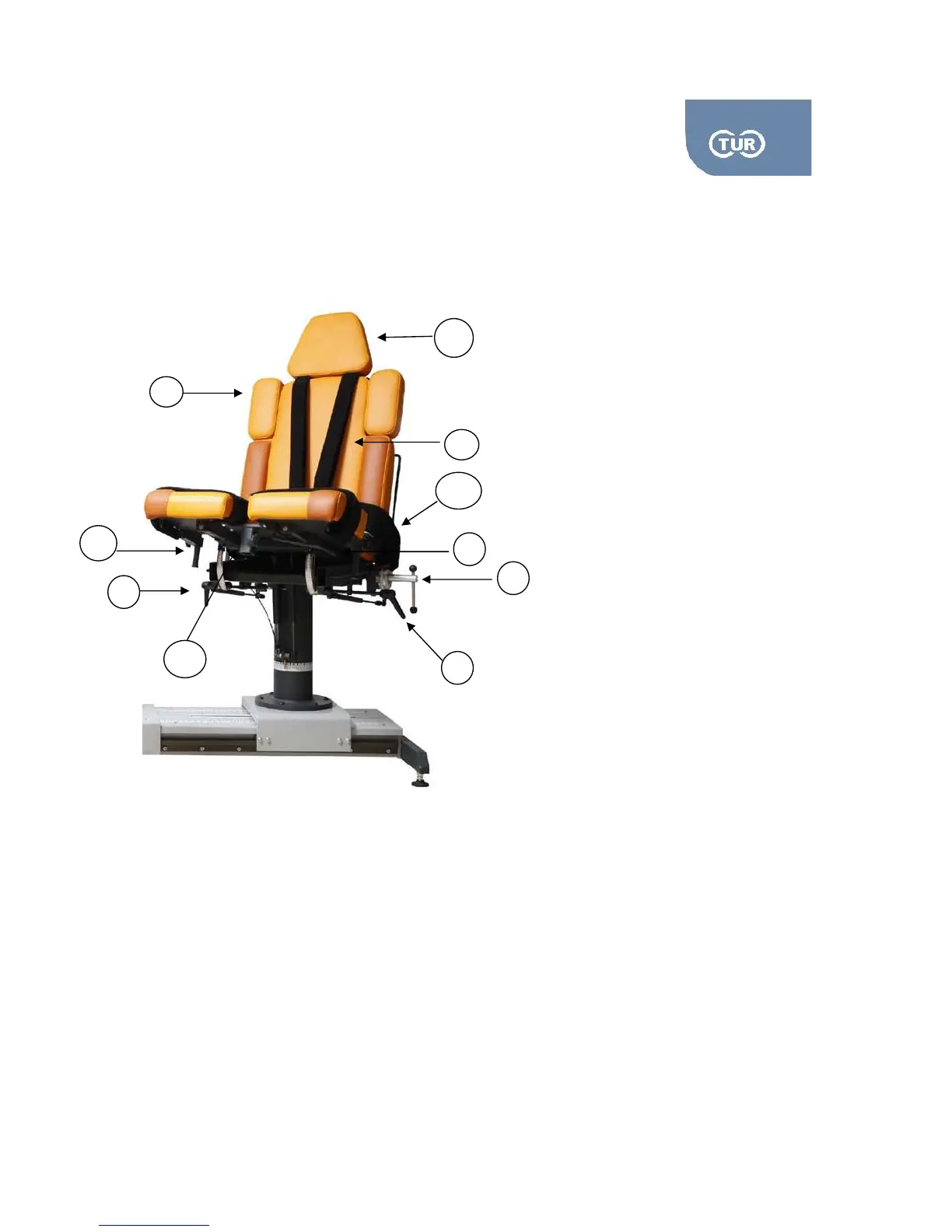

1
Seat Back Tilt Handle (STH)
2
Rotation Chair Handle (RCH)
3
Cervical Support
4
Shoulder Support
5
Belts
6
Receiving Tube
7
Hand Grips
8
Belts
4
2
1
3
3
4
