THE OVEN DOOR

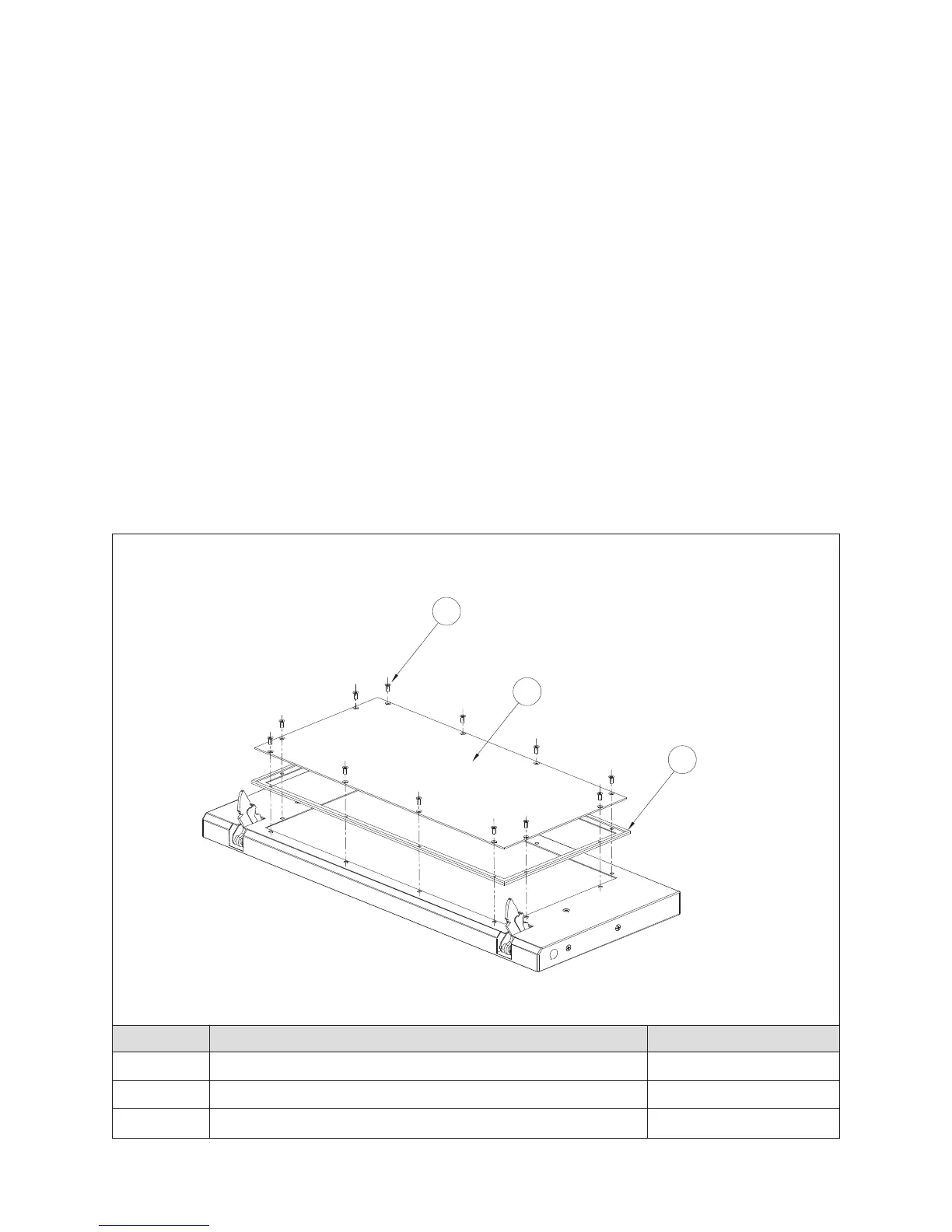

Door Gasket (Figure 52)
To remove a damaged Door Gasket:
1. Ensure “Cool Down” process is completed. (“Cool
Down” message will disappear upon completion.)
2. Remove door (page 49).
3. Remove inner plate.
4. Replace damaged gasket with P/N HHB-8101.
5. Reinstall inner plate.
6. Reattach oven door.
7. Return hinge retainers to locked state and close
oven door.
NUMBER PART PART NUMBER
63 Screw – Door Inner Plate (x10) 102809
64 Door Inner Plate HHB-8083
65 Door Gasket HHB-8101
