THE OVEN DOOR
NUMBER PART PART NUMBER
66 Door Hinge 102807
67 Push Nut (x2) 101293
68 Hole Plug (x2) 101191
69 Screw – Door Hinge (1 per hinge =2 total) 101402
: Replacing a Hinge

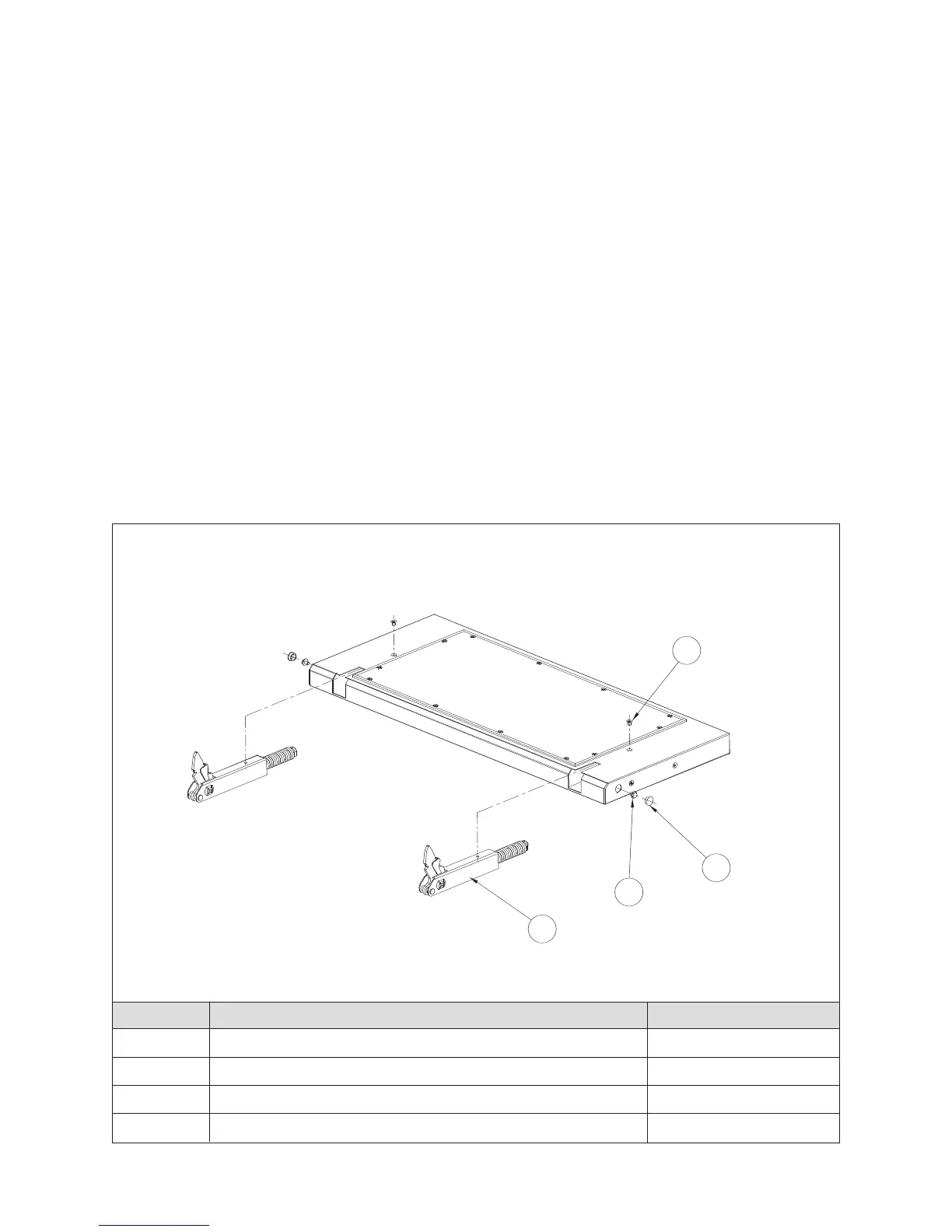

Door Hinge (Figure 53)
Spring-loaded hinge can be removed and replaced
as an entire unit.
To replace a Door Hinge:
1. Ensure “Cool Down” process is completed. (“Cool
Down” message will disappear upon completion.)
2. Remove Oven Door (page 49).
3. Replace hinge(s) with P/N 102807.
4. Reattach oven door.
5. Return hinge retainers to locked state and close
oven door.
Door Switch
See Control System for description and
replacement instructions (page 36).
