TurboChef TORNADO Service Manual

13.
100481 High Voltage Diode (x2)
14. Mag Fan Relay, Generic
NGC-3030-1 North America
NGC-3030-4 Europe, Asia-Pacific Multiphase
NGC-3030-7 Europe Single Phase
NGC-3030-12
Brazil Single Phase
Mag Fan Relay, SWY
NGC-3030-2
North America
NGC-3030-6 Europe, Brazil Single Phase
NGC-3030-9 Europe, Asia-Pacific Multiphase
Mag
Fan Relay, SBK
NGC-3030-3
North America
NGC-3030-13
Europe, Brazil Single Phase
NGC-3030-14 Indiana/North Carolina
NGC-3030-15 Europe, Asia-Pacific Multiphase
Mag Fan
Relay, Additional*
15. NGC-3061-1 Filament Transformer (2 per
oven, 1 per kit) - USA, S. Korea
15. Continued:
NGC-3061-2 Filament Transformer (2 per
oven, 1 per kit) - Europe, Asia,
Pacific, Australia, UK, Ireland,
Mexico, Brazil
NGC-3061-3
Filament Transformer (2 per
oven, 1 per kit) - Japan
16.
100083 Mag Cooling Fan
17.
101273 K3 Monitor Relay
18. 101273 K2 High Voltage Relay
19. 101273 K1 Filament Relay
20. 100599 F3 Fuse - 20 Amp
21. NGC-3015 Magnetron (2 per oven, 1 per kit)
22.
NGC-3017 Wave Guide (Rear)
23.
NGC-3016
Wave Guide (Front)
24.
100186
Magnetron Wire
25. NGC-3015 Magnetron (2 per oven, 1 per kit)
26. 102070 Magnetron Thermostat
27.
NGC-1163 Insulator, Adhesive
28.
100684
Screw #6 Sheet Metal
* See Comprehensive Part List, page 79.
F
F
A

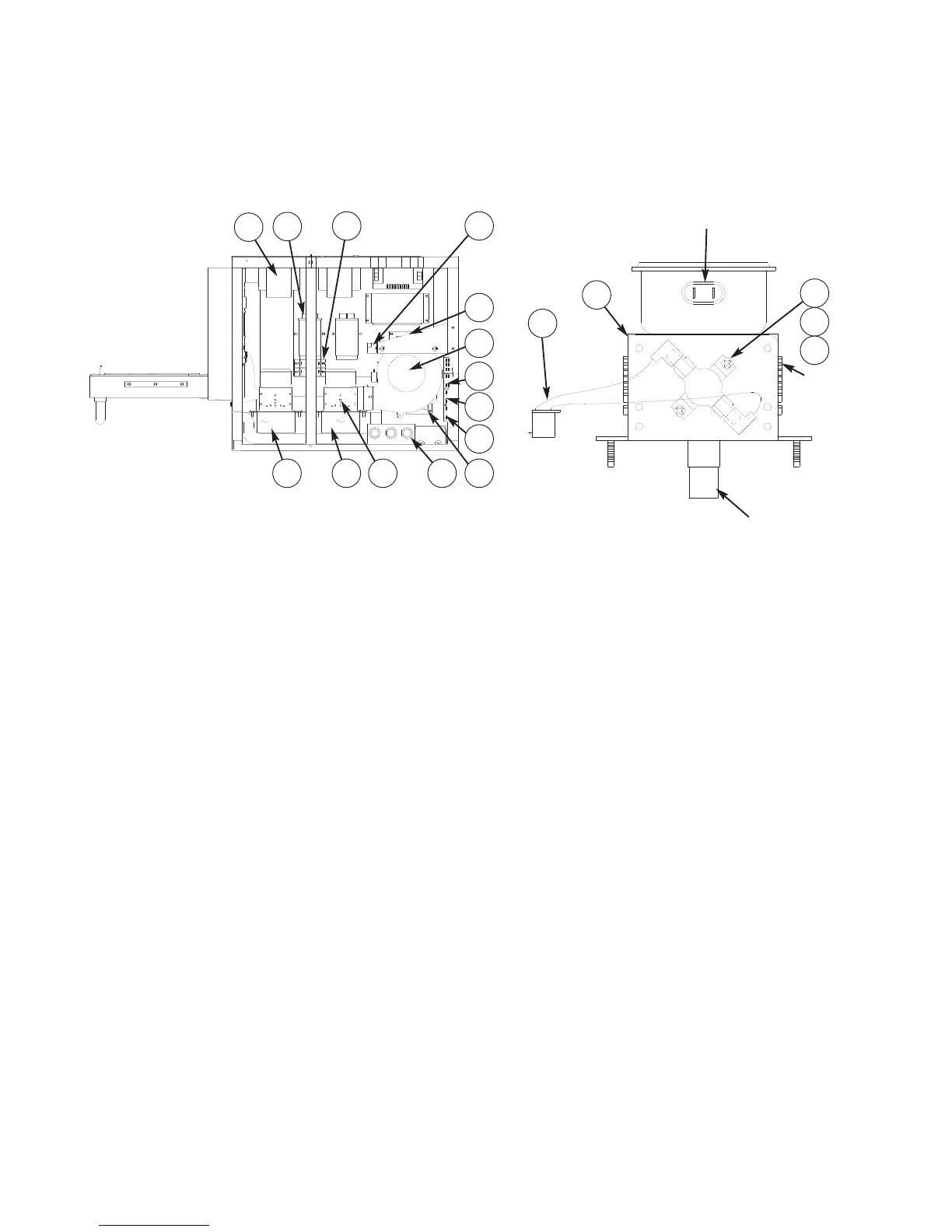

FIGURE 20: Microwave System Parts
FIGURE
21:
Microwave System Parts
11
12
13
15
15
16
14
17
18
19
20212223
FILAMENT AND HIGH
VOLTAGE TERMINALS
COOLING
FINS
(ORG)
(BLK)
ANTENNA
25
26
27
28
24
27
THE MICROWAVE SYSTEM
