TurboChef TORNADO Service Manual

70
Primary and Secondary Interlock Switch Parts
47. NGC-1076-2 Actuator, Door
48.
102809
Screw, #8-32 x 3/8” 100Þ CSK
49. 102921 Screw, #8-32 x 3/8”
50.
101557 Screw, #4-40 x 1 1/4”
51. 102012 Interlock Switches
52.
NGC-3033
Assy, Door Switch*
*See Figure 32 for Assy Detail.
SWITCH
GAP
= 0.020”
4950
51
52
TOGGLE
TO
BE LEVEL
OR NEARLY LEVEL
APPLY HI-TEMP
GREASE
TO
AREA
48
47
58
61
57
53
63
59
54
60
55
62
56
x2

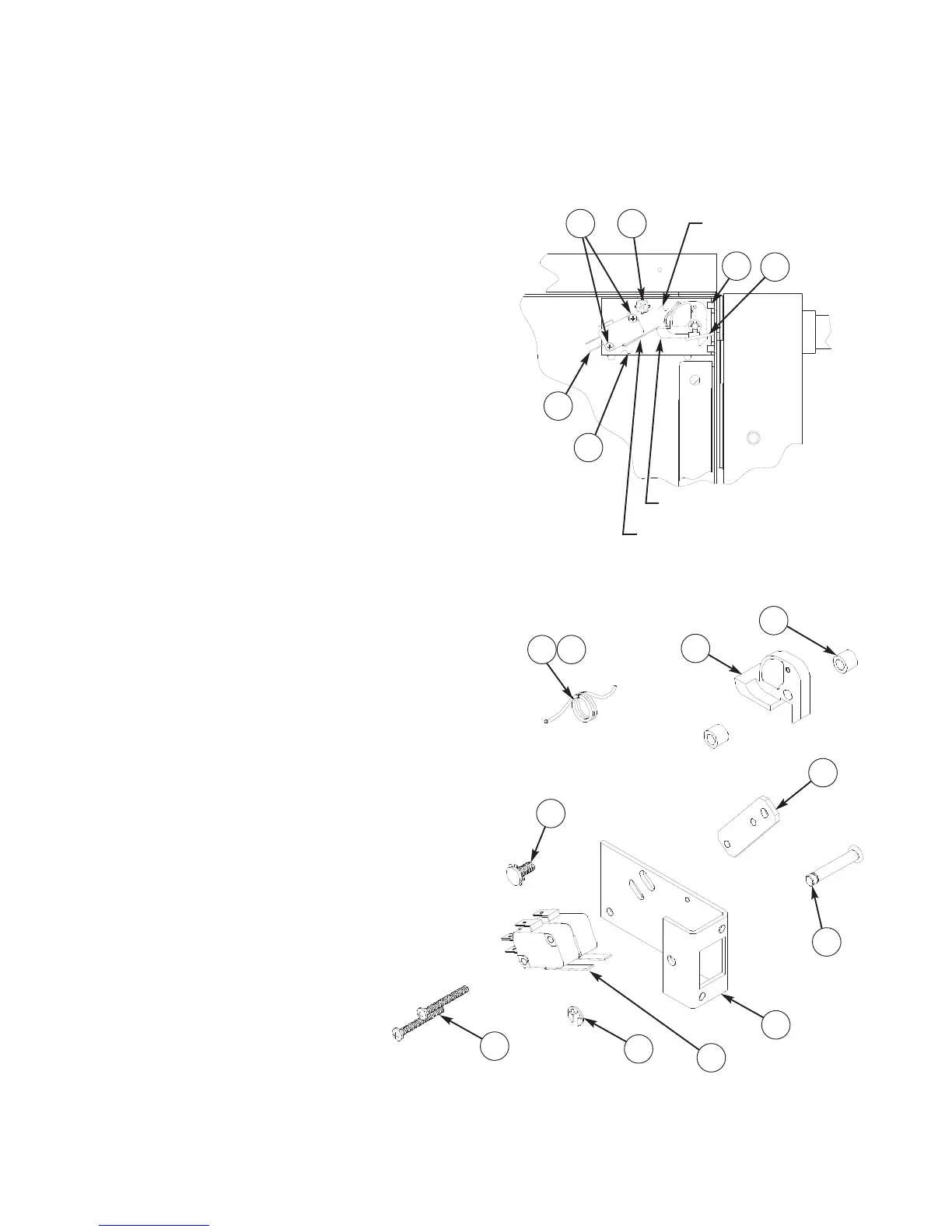

FIGURE 30: DOOR SWITCH ASSEMBLY AND PARTS
Chapter 6: The Oven Door - Page 41
SERVICE PARTS AND ILLUSTRATIONS
FIGURE 29: PRIMARY AND SECONDARY INTERLOCKS ADJUSTMENT AND PARTS - OLD SWITCH SETUP
Chapter 6: The Oven Door - Page 40
Door Switch Parts
53.
NGC-1072 Bracket Latch
54.
102012 Switch, Micro, 0.1A/125VAC
55. NGC-1087 Spring Door Latch
56.
NGC-1073 Toggle, Latch
57. 101119 Pin, Clevis, ø3/16 x 1” Lg
58. 100059 Bearings, Bronze,
3/16ID x 5/16OD x 1/4” Lg
59.
101557
Screw, #4-40 x 1.25” Lg,
PPHD, CRES
60. 102921 Screw, #8-32 x 3/8”, Internal
Tooth Sems, PPHD, SS
61.
NGC-1126 Plate, Door Switch
62.
NGC-3006
Grease, USDA H-1, Food Grade
63. 101296 Ring, E-clip
