ADJUSTING THE PRIMARY INTERLOCK SWITCH -
NEW SWITCH SETUP
The new switch assembly is identifiable by the pri
-
mary switch
being located on the left side of the
oven. Also, the serial number of the oven will fol
-
low the formatting below (X = variable digit/letter):
NGC
D(5 thru 9)XXXX (North America)
NGCXX
D(5 thru 9)XXXX (International)
1. When the oven completes BURN IN (if
required, see page 38), closely examine the latch
toggle position using the door switch gauge
(Item 75).
2. If the toggle is past the top of the window, you
must correct the toggle's position by installing
an 0.030” Shim (Item 76). See Figure 32.
3.
Verify position of toggle by opening and closing
the oven door.
4. With the toggle correctly adjusted and the door
closed, adjust the primary switch by loosening
the two #4-40 screws and #8-32 screw.
5.
Using a 0.030” (0.762 mm) spacer as a template
(included with Item 74), adjust switch lever
position to a maximum allowable distance of
0.030” (0.762 mm).
6.
Open and close the door several times to verify
the switch gap.

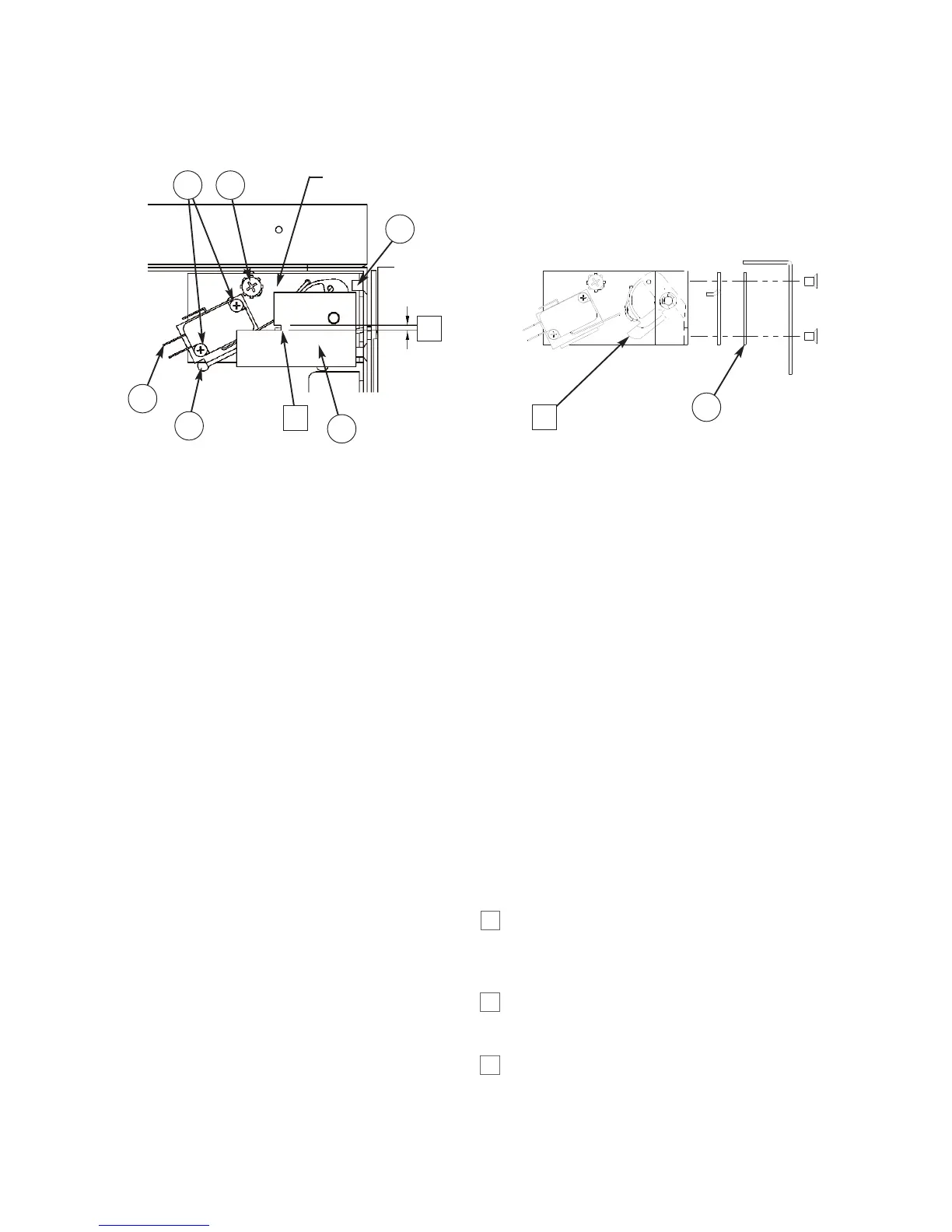

PRIMARY SWITCH ADJUSTMENT AND PARTS
Figure 32
70.
102809
Screw, #8-32 x 3/8” 100Þ CSK
71.
102921 Screw, #8-32 x 3/8”
72.
101555
Screw, #4-40 x 3/4”
73.
102012 Interlock Switch
74.
NGC-3033 Assy, Door Switch*
75. Adjustment Tools (included with Item 74)
NGC-1215
Door Switch Gauge
NGC-1340 Shim Tool, 0.060”
NGC-1344 Shim Tool, 0.030”
76. NGC-1169-1 Shim, 0.030”
NGC-1169-2
Shim, 0.045”
*Refer to FSB-10057 (included with Item 74) for
instructions on converting NGC-3033 kit into the
new switch assembly.
Assembly Notes
1. Tip of toggle must be within window notch.
Optimal is centered or below centered when the
oven is hot.
2. Tip of toggle adjustment notch. Toggle must be
within notch when oven is hot.
3.
If toggle “hangs” in position as shown, decrease
number of shims.
75
2
1
71
72
73
74
APPLY
HI-TEMP
GREASE
TO AREA
70
FIGURE
32:
Primary Switch Adjustment and Parts -
New Switch Setup
76
3
THE OVEN DOOR
42
To Next Page
