SERVICE PARTS AND ILLUSTRATIONS
71
Monitor Safety Switch Parts
64.
102804 Hinge, Right
65.
102012 Switch, Limit, Micro
66.
NGC-1126 Plate, Door Switch
67.
101912 Standoff, #8-32F/Fx1 in S
68. 102921 Screw, #8-32 x 3/8”
69.
102902 Screw, 4-40 x 5/8”
FIGURE 31: MONITOR SWITCH ADJUSTMENT AND ASSEMBLY - OLD SWITCH SETUP
Chapter 6: The Oven Door - Page 41
68
67
68
64
66
68
67
69
65
REF
x2
75
71
72
73
74
APPLY
HI-TEMP
GREASE
TO AREA
70

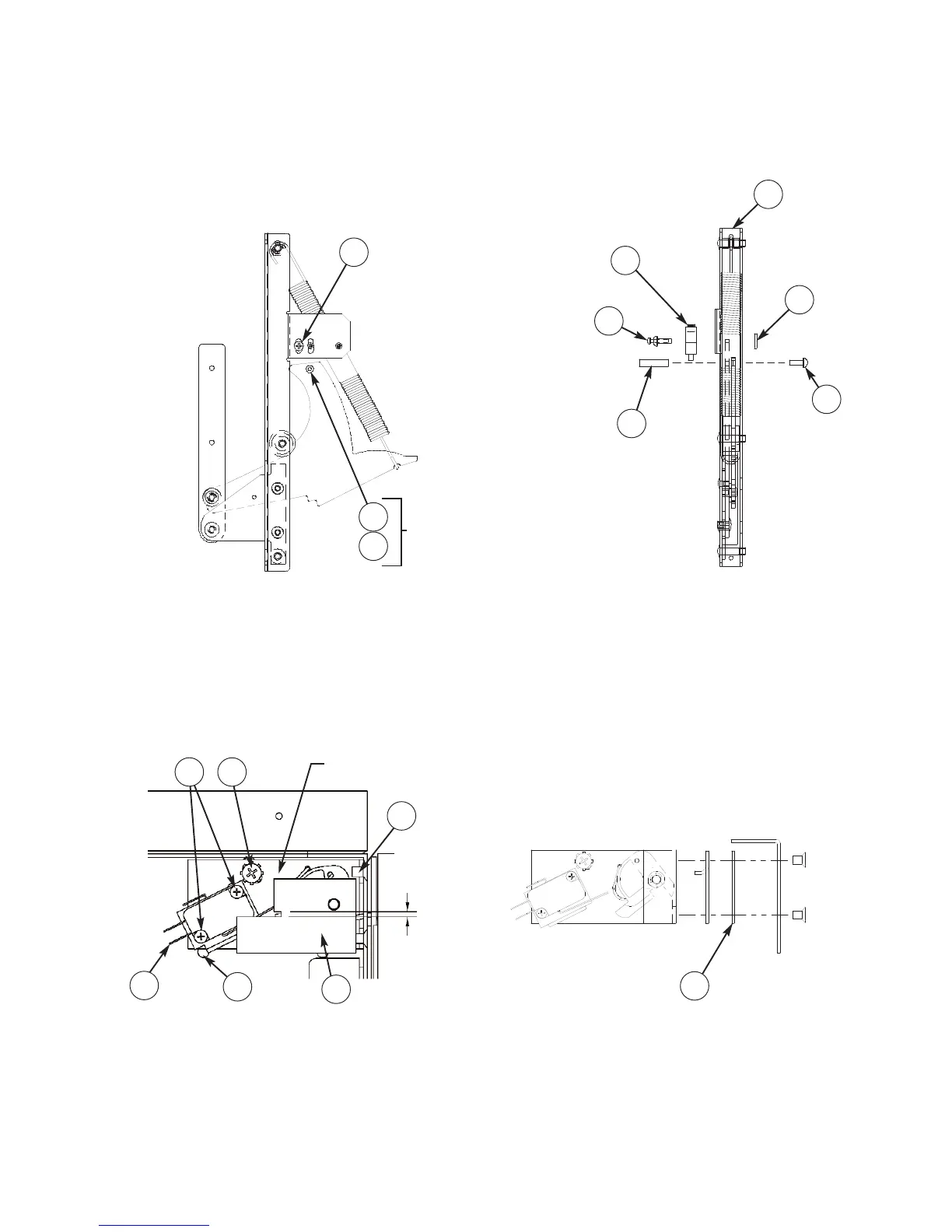

FIGURE 32: PRIMARY INTERLOCK ADJUSTMENT AND PARTS - NEW SWITCH SETUP
Chapter 6: The Oven Door - Page 42
Primary Safety Switch Parts
70.
102809 Screw, #8-32 x 3/8” 100Þ CSK
71. 102921 Screw, #8-32 x 3/8”
72. 101555 Screw, #4-40 x 3/4”
73. 102012 Interlock Switch
74. NGC-3033 Assy, Door Switch*
75. Adjustment Tools (included with Item 74)
NGC-1215 Door Switch Gauge
NGC-1340 Shim Tool, 0.060”
NGC-1344
Shim Tool, 0.030”
76.
NGC-1169-1
Shim, 0.030”
NGC-1169-2 Shim, 0.045”
76
