turbofan E23D3 Service Manual

Service Procedures
14
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

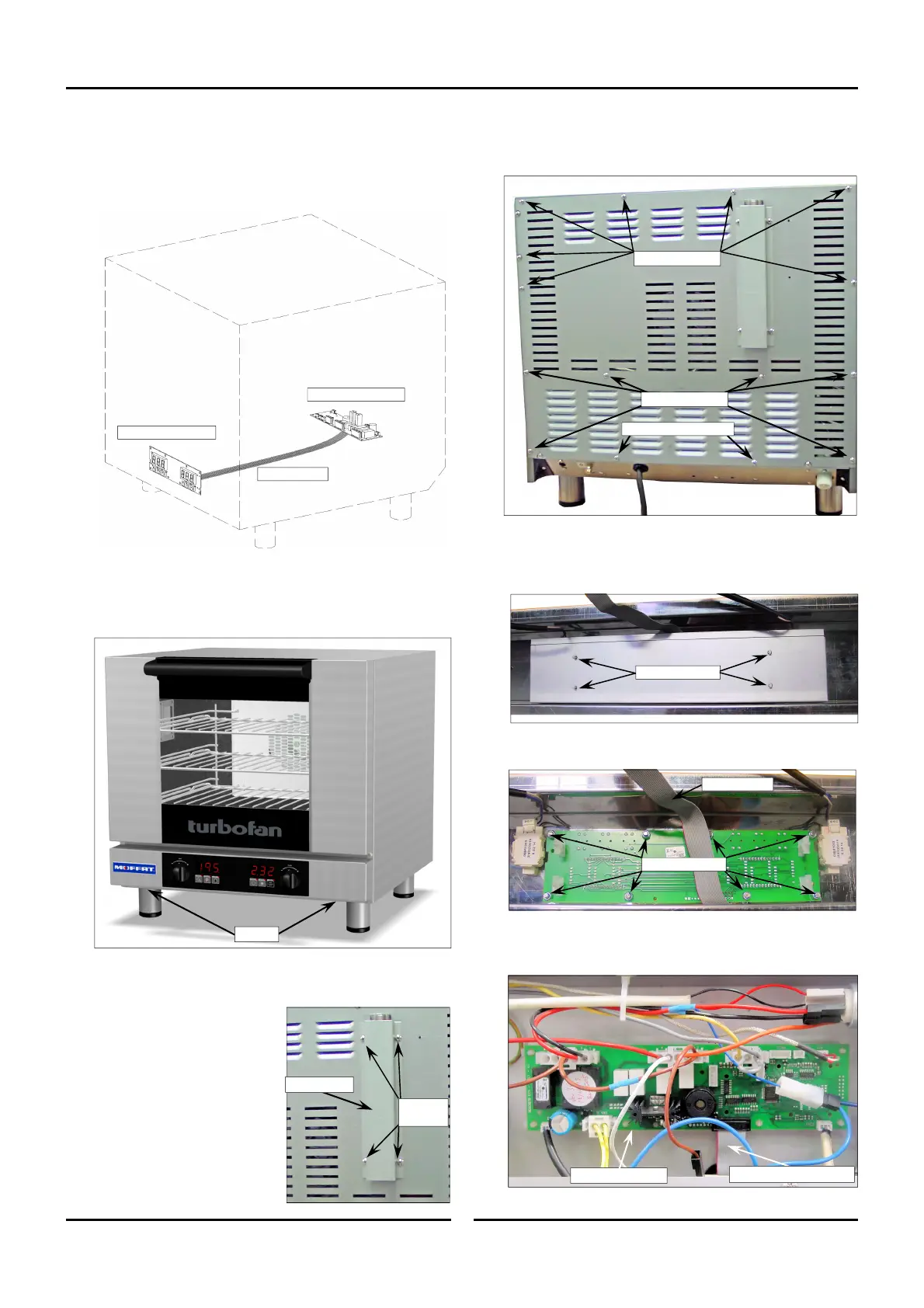

5.1 Replacement
5.1.1 Control Panel /
Controller - Front Display Board /
Rear Control Board.
To remove the Control Panel:-
1. Remove 2 screws on underside of control panel and remove
panel.
To remove the Rear Access Panel:-
1. Remove 4 screws securing the
rear vent shroud and remove
the shroud.
Screws
Remove
Screws
Vent Shroud
2. Remove screws securing the rear access panel and remove
panel. Screws at bottom of panel only require just loosening as
panel is slotted to ease re-fitting.
To remove the Controller - Front Display Board:-
1. Using pliers, carefully compress the 4 plastic fasteners securing
the cover over the front display board and remove the cover.
2. Undo securing 8 nuts and remove front display board.
3. At the rear of the oven, disconnect ribbon cable at the rear
control board and pull ribbon cable through to front of oven.
Remove 8 Nuts
Ribbon Cable
Plastic Fasteners
Just Loosen Screws
Remove Screws
Remove Screws
Ribbon Cable
Front Display Board
Rear Control Board
Rear Control Board
Disconnect Ribbon Cable
