turbofan E23D3 Service Manual

Service Procedures
24
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

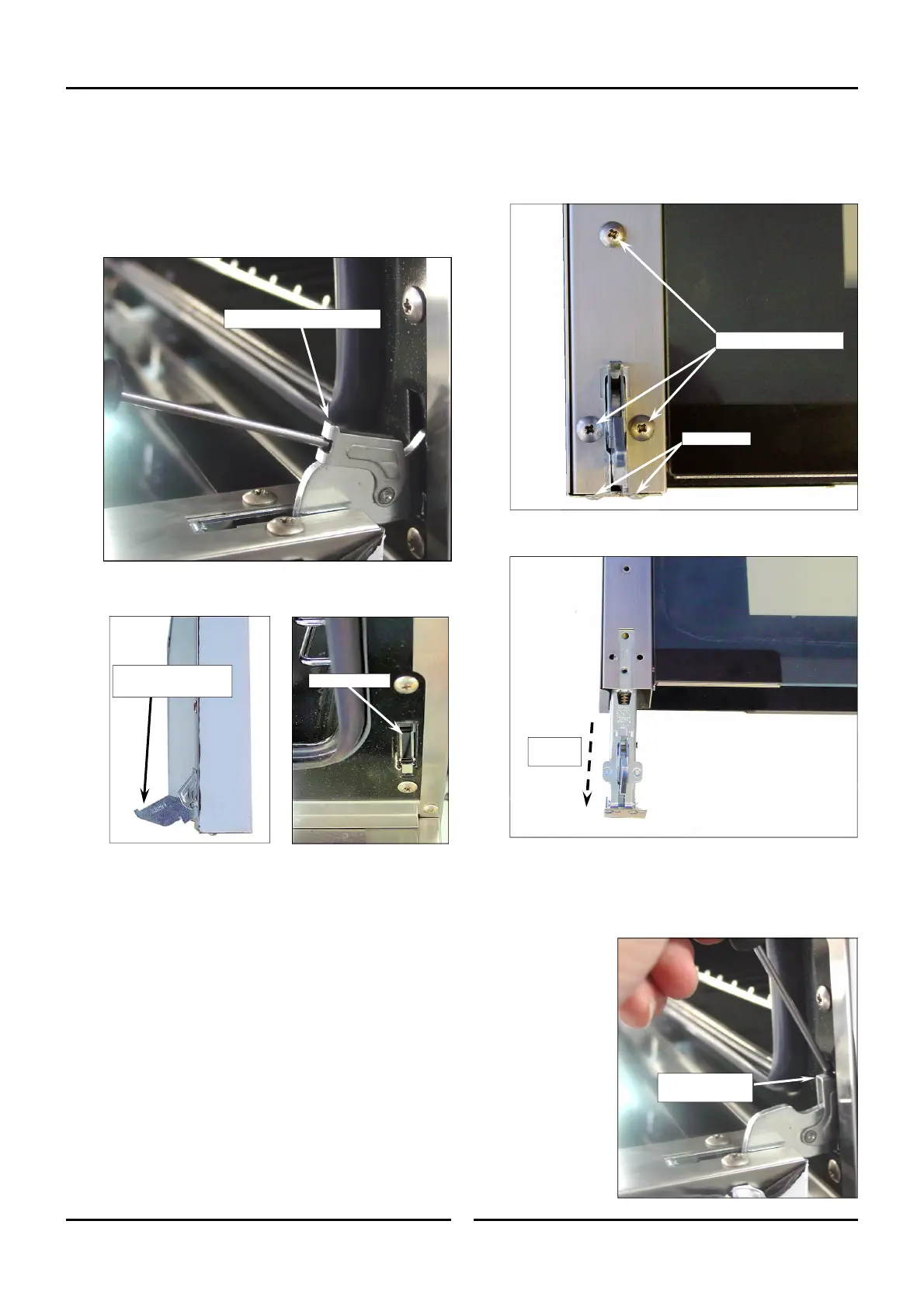

5.1.8 Door Removal /
Door Hinges /
Door Inner Glass
Door Removal:-
1. Lock hinges in open position.
2. Lift door up and away from oven.
3. To refit door, place hinges in slots and ensure they are fully
located.
4. Unlock hinges and check door closes against seal.
Door Hinge in Locked Position
Oven Hinge Slot
Door Hinge:-
1. With the oven door removed as shown earlier, remove the two
base screws at the bottom of the hinge.
2. Remove 3 hinge assembly screws.
3. Withdraw hinge assembly from bottom of the door.
4. Re-assemble in reverse order.
Door Inner Glass:-
Glass Removal
1. Open the oven door
fully.
2. Using a suitable
instrument, move
the door lock
catches from the
unlocked to the
locked position to
prevent the door
from closing.
Hinge Assembly Screws
Base Screws
Withdraw
Hinge
Door Lock Catch in
Unlocked Position
Ensure Hinge is located
in Oven Hinge Slot
