turbofan E23D3 - Exploded Parts List

Exploded Parts List
38
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1

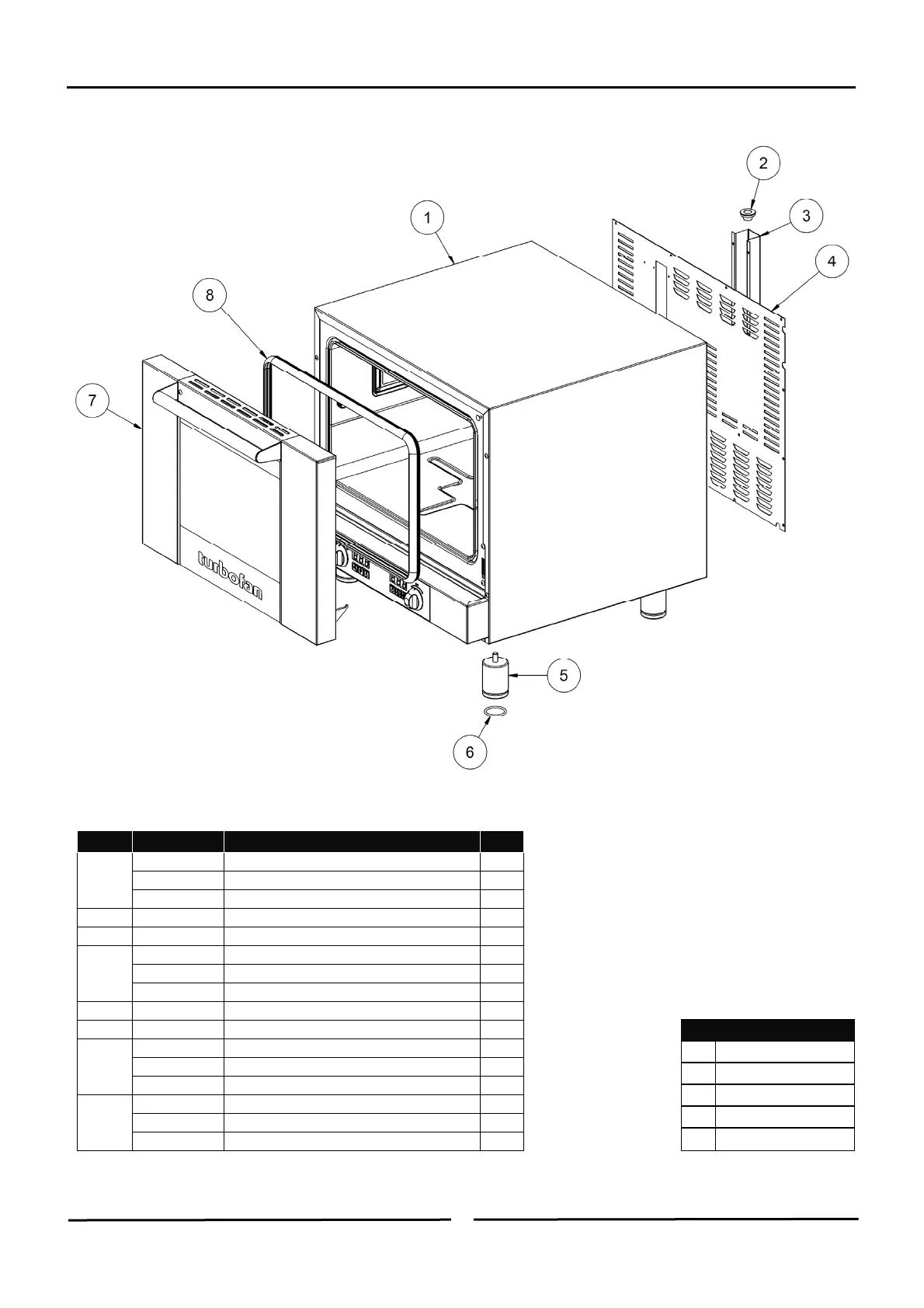

Outer Assembly - E23D3, E27D2 / E27D3, E28D4
ITEM PART No. DESCRIPTION *RPL
1
232834 WRAPPER E23 D
232823 WRAPPER E27 D
233057 WRAPPER E28 D
2 234738 VENT INSERT D
3 232680 OVEN VENT REAR COVER D
4
238860 REAR PANEL E23 D
238861 REAR PANEL E27 D
238862 REAR PANEL E28 D
5 232379 ADJUSTABLE LEG 3” / 76mm D
6 232380 FOOT O-RING C
7
233910 DOOR ASSY E23 C
232894 DOOR ASSY E27 C
232895 DOOR ASSY E28 C
232667 DOOR SEAL E23 B
232666 DOOR SEAL E27 B
234466 DOOR SEAL E28 B
8
*Recommended Parts Level
RPL Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
