turbofan E23D3 Service Manual

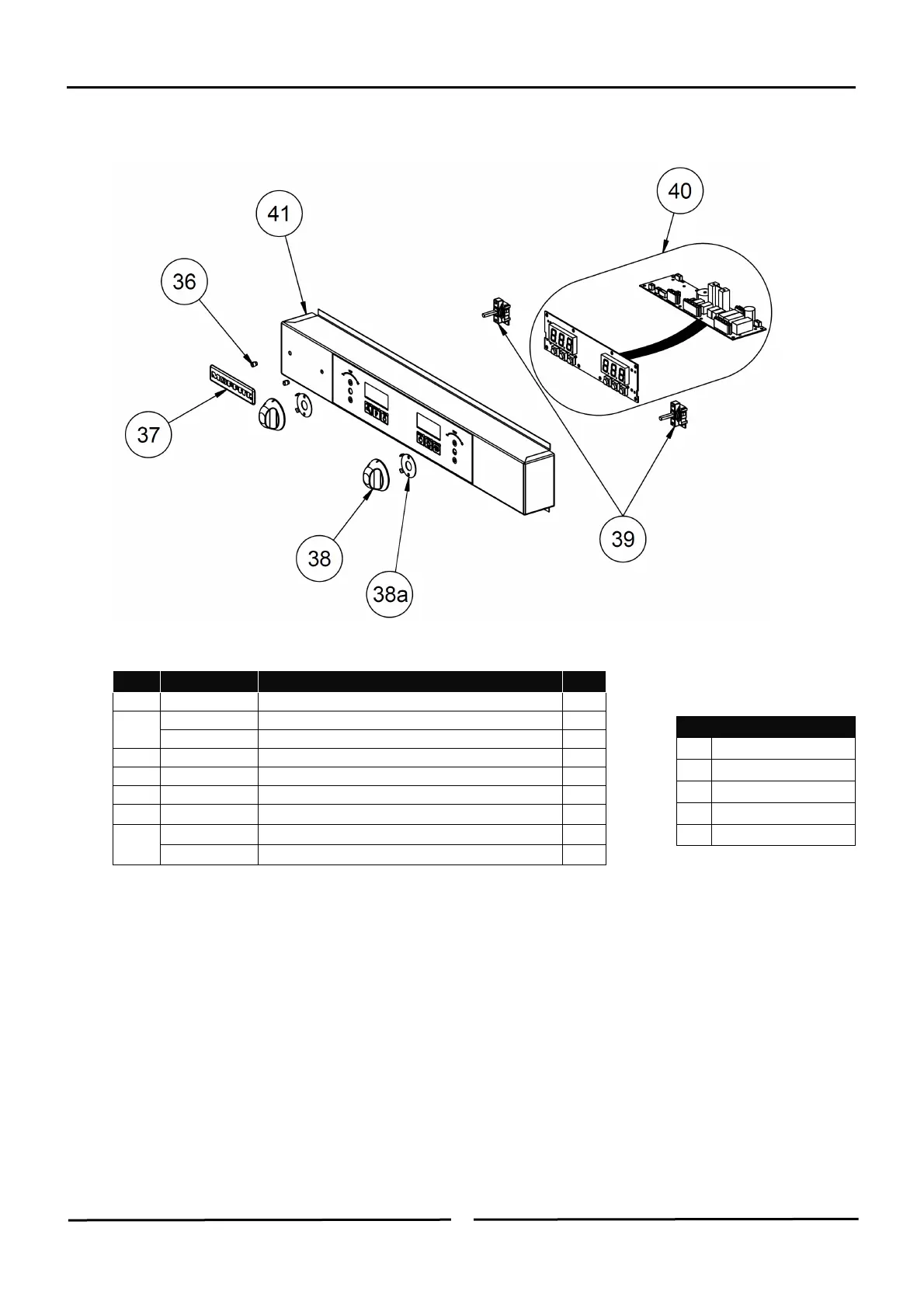

Exploded Parts List
42
Turbofan E20D Series Convection Ovens © Copyright Moffat Ltd. 10 February 2016.
Amendment 1
Control Panel - ALL
ITEM PART No. DESCRIPTION *RPL
36 228132 TUBE CLIP B
37
233865 BADGE MOFFAT D
233867
BADGE BLUE SEAL UK, CAN
D
38 234447 KNOB INDEX B
39 238047 ENCODER MOMENTARY 1.1M A
40 238194 DIGITAL CONTROLLER KIT B
41
238124 CONTROL PANEL LAMINATED E23D D
238125 CONTROL PANEL LAMINATED E27D / E28D D
38a 238895 KNOB STOP PLATE
*Recommended Parts Level
RPL Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
