turbofan E23D3 User Manual

Operation
10

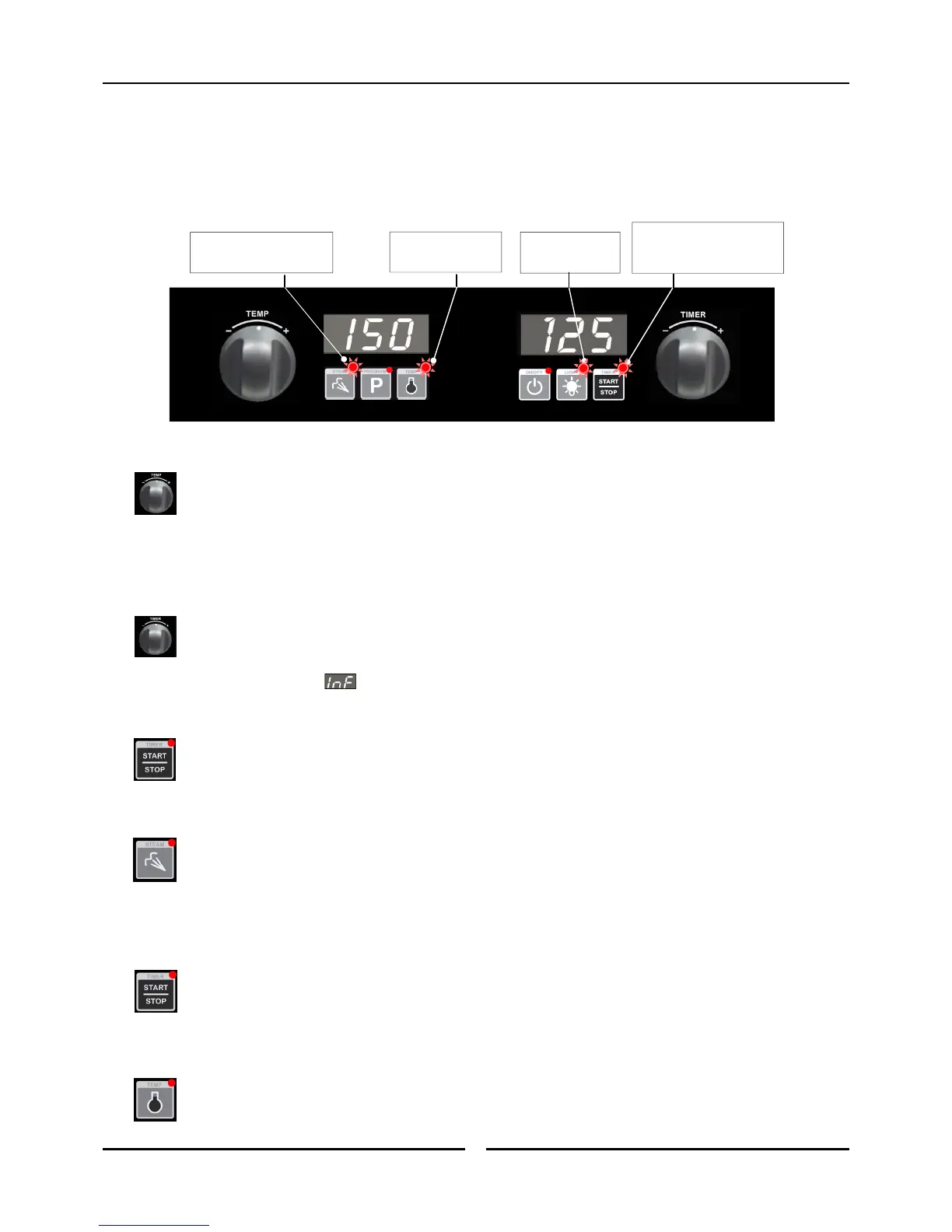

‘Temp’ LED will remain
‘On’ until oven reaches
Set Temperature.
‘Steam’ LED illuminates while
manual steam injection is
activated.
‘Light’ LED is ‘On’
when oven light is
‘On’.
‘Timer-Start/Stop’ LED is steady
‘On’ when Timer is running.
LED flashing when Timer is
paused (door open).
Cooking in Manual Mode
On oven start-up the controller defaults to the following settings:-
Oven Temperature is set to 150°C (325°F).
Refer ‘Controller - Operator Settings’ section to change default start-up temperature.
Oven Timer is not set, display shows ‘ - - -’.
Steam Level
(St0 to St5) is set to the last used level.
1. SET OVEN TEMPERATURE.
Press ‘On/Off’ key to turn ‘On’ the oven.
Rotate ‘Temp’ knob to select temperature required.
+ to increase the temperature (Max. 260°C / 500°F).
- to decrease the temperature (Min. 60°C / 140°F).
The oven will commence heating to the displayed set temperature and ‘Temp’ LED will be ‘On’.
NOTE: The oven can be used without using the timer.
2. SET TIMER.
Rotate ‘Timer’ knob to select time required.
+ to increase the time (Max. 180 minutes).
- to decrease the time (Min. 1 minute).
NOTE: Timer can be set to ‘Infinite’ . If timer is set to ‘Infinite’, timer will count elapsed time to a max of 999 minutes and
elapsed time will be shown on the right hand display.
3. STARTING TIMER.
Press ‘Timer-Start/Stop’ key to start timer operation. LED will illuminate to indicate the timer is running and timer will start
counting (down if a time has been set on the timer) (elapsed time if ‘InF’ has been set on the timer).
Opening oven door when timer is operating will pause timer and turn ‘Off’ fan and heating. Timer LED will flash and ‘dor’ will
be shown in the right hand display.
Press and hold ‘Timer-Start/Stop’ key for 3 seconds to cancel timer. ‘Timer-Start/Stop’ LED will turn ‘Off’.
4. STEAM INJECTION.
Press ‘Steam’ key to initiate steam injection.
NOTE: Refer to ‘Steam Mode’ settings at start of this section, for additional explanation of steam level adjustments.
5. CANCELLING ‘TIME UP’ ALARM (COOKING TIME COMPLETED).
When the set Cooking Time is completed, alarm will sound and Timer ‘Start/Stop’ LED flashes.
 Press ‘Timer-Start/Stop’ key to cancel alarm, oven will continue cooking at Oven Set Temperature. Display will revert to
Set Temperature and Time, ‘Timer-Start/Stop’ LED will turn ‘Off’.
 Alternatively, open oven door to cancel alarm.
Close oven door to resume cooking at Oven Set Temperature. Display will revert to Set Temperature and Time.
NOTE: Any of the above settings can be adjusted, during the cooking operation, by using the above controls and keys.
 Viewing Actual Oven Temperature. Press ‘Temp’ key during cooking, Oven Actual Temperature will display on left
hand display and ‘Temp’ LED flashes for 5 seconds, then left hand display will revert to displaying Oven Set Temperature.
