Installation
6
Installation Requirements
Unpacking
1. Remove all packaging and transit protection including all
protective plastic coating from the exterior stainless steel
panels.
2. Check the oven and supplied parts for damage. Report any
damage immediately to the carrier and distributor.
3. Check that the following parts have been supplied with your
oven:-
4 x Leg Adjustable.
Brass Adaptor.
Rubber Washer.
4. Report any deficiencies to the distributor who supplied your
oven.
5. Securely fit the 4 legs supplied with the oven.
6. Check that the available electrical supply is correct to that
shown on the Technical Data Plate located on the front right
hand side panel.
Refer to ‘Specifications’ section, ‘Oven
Specifications Tables’.
Location
1. Position the oven in its approximate working position.
2. The unit should be positioned so that the control panel and
oven shelves are easily reachable for loading and unloading.
Clearances
To ensure correct ventilation for the motor and controls, the
following minimum installation clearances are to be adhered to:-
Top 200mm / 8”.
Rear 25mm / 1”.
Left-hand side 25mm / 1”.
Right-hand side 25mm / 1”.
CLEARANCE FROM SOURCE OF HEAT.
A minimum distance of 300mm (12”) from the appliance
sides and rear is required.
Stand Mounted Ovens
For ovens that are to be mounted to a stand, the oven feet are
used to level the oven on the stand. Refer to the instructions
supplied with separately ordered stands for mounting details.
Important:
The vent located at the rear of the oven must NOT be
obstructed.
Important:
Installation shall comply with local electrical, health and safety requirements.
It is most important that this oven is installed correctly and that oven operation is correct before use.
If you have any questions regarding the proper installation and / or operation of this oven, please contact your local
Turbofan distributor.

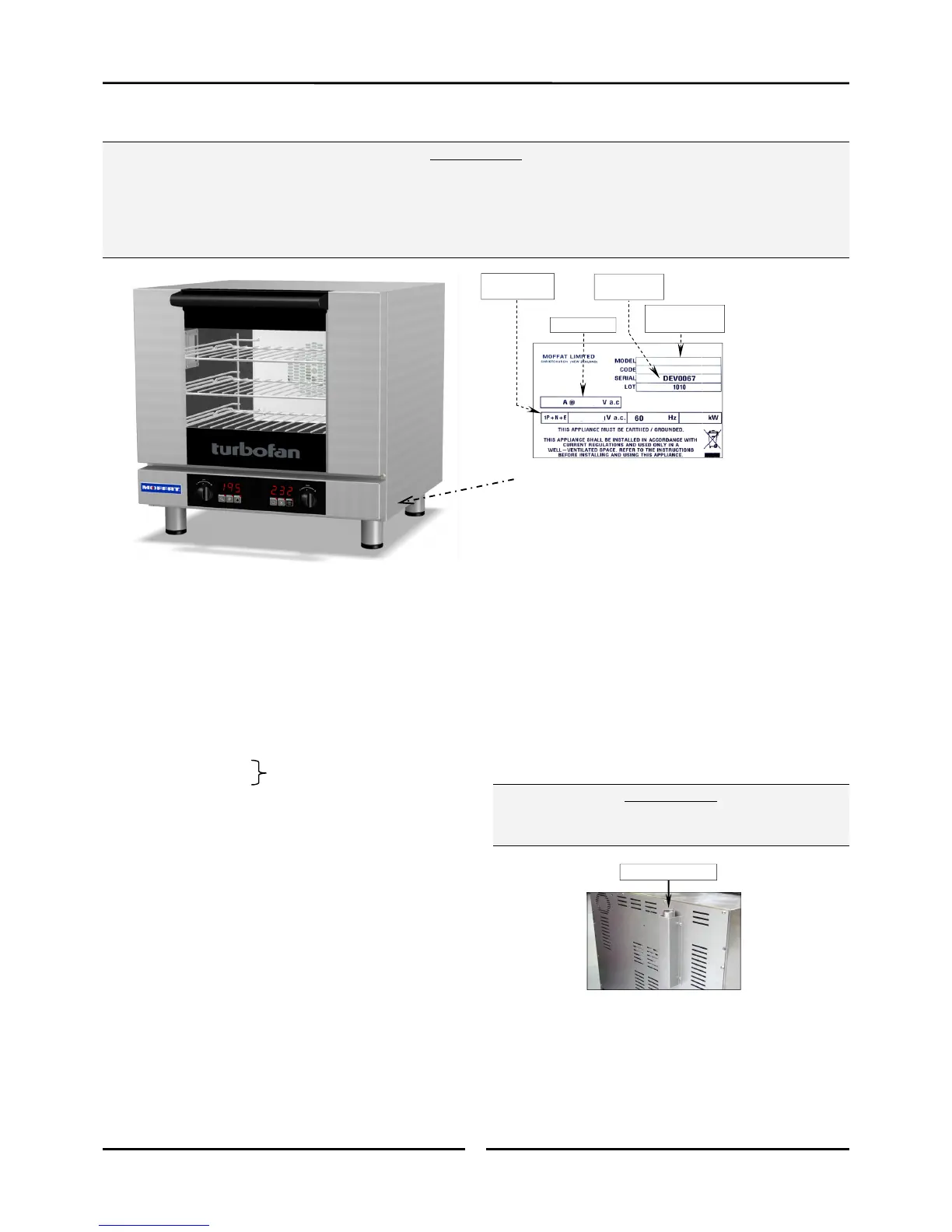

Oven Vent Location
Oven
Serial Number
*******
*******
230 - 240
3.0
240
12.5
Current Draw
Oven
Model Number
Electrical Power
Rating
Technical Data Plate - Data and Location
(example only)
USA / Canada / Mexico only.
To Next Page
