9
2017/06
Open the "Ethernet" tab by do
uble clickin
g the Ethernet interface in th
e project tree.
The IP address of the network inte
rface co
rresponds to the IP address of the TBEN-L
-PLC-
Select "eth0" under
"network interface".
The IP address is set automatically.

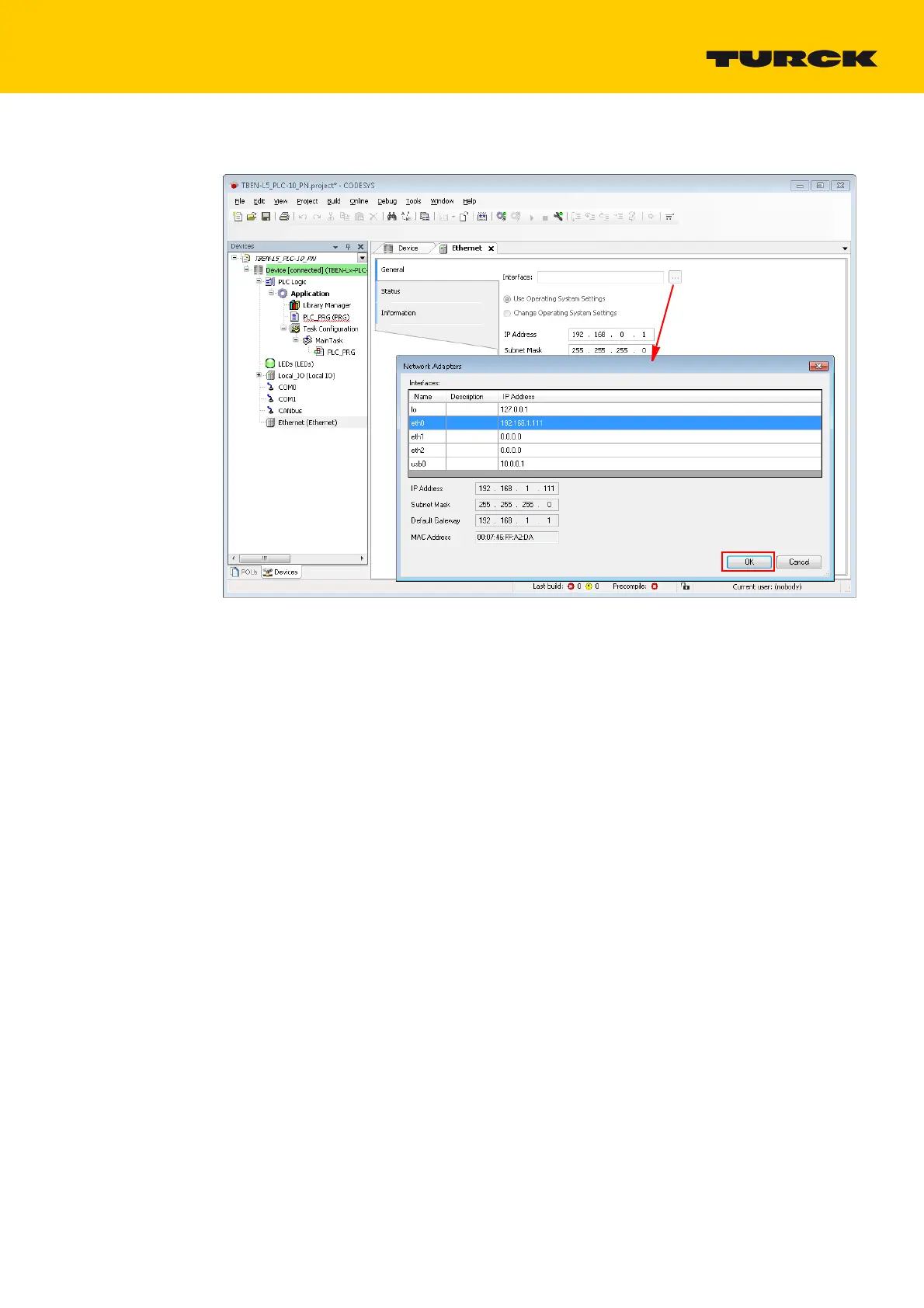

Fig. 6: Configuring th
e Ethernet interface
10
12
Table of Contents
Default Chapter
3
Table of Contents
3
1 About These Instructions
5
Target Groups
5
Explanation of Symbols
5
2 Creating a CODESYS Project and Configuring the Network
7
Installing a CODESYS Package
7
Create CODESYS Standard Project with TBEN-L-PLC
8
Configuring the Network
9
Configuring the Ethernet Interface
10
3 Using the Device as PROFINET Controller
13
Creating a CODESYS Project and Configuring the Network
13
Configuring the Device as PROFINET Controller
14
Adding the PROFINET Controller to the Project
14
PROFINET Tasks in CODESYS
15
Configuring PROFINET Devices
16
Installing the GSDML-Files
16
Scan Network for PROFINET Devices
17
Adding PROFINET Devices Manually
19
Configuring the BL20 Station
21
Configuring the TBEN-S2-4IOL (IO-Link Master)
22
Configuring the Empty Slots 2 - 5 (IO-Link-Ports)
23
Configuring the Empty Slots 6 - 8 (Diagnostics, IO-Link-Events, Module Status)
27
Communication Settings for PROFINET Devices
31
Assigning the IP Address and the Station Name
31
Setting the Communication Parameters (Send Clock, Reduction Ratio, Phase)
32
Requesting the Device Status in the Program
33
Using IO-Link Function Blocks for CODESYS
34
4 Using the Device as PROFINET Device
37
Creating a CODESYS Project and Configuring the Network
37
Configuring the PROFINET Device
38
Adding the PROFINET Device to the Project
38
Configuring the PROFINET Device (CDS3 PN-Device) in TIA Portal
41
Installing the GSDML-File
41
Configuring the PROFINET Parameters
42
Configuring the In- and Output Data
43
