3.2 Configuring the Device as PROFINET Controller
AThis information refers to standard PROFINET devices with up to 4 byte of process data as for example digital I/O
modules. For PROFINET devices with much more process data (50 …400 byte) as for example IO-Link, RFID or

serial COM interfaces, the cycle time has to be increased to 2, 4 or 8 ms.
3.2.1 Adding the PROFINET Controller to the Project
The PN-Controller from 3S – Smart Software Solutions GmbH is used.
 Add the PN-Controller to the Ethernet interface using the "Add device…" function.
Properties Compact controller
TBEN-L…PLC-10
HMI/PLC
TX500
Max. number of devices 64 64
Min. cycle time 1 ms 1 ms
Max. number of devices at 1 ms
A 81

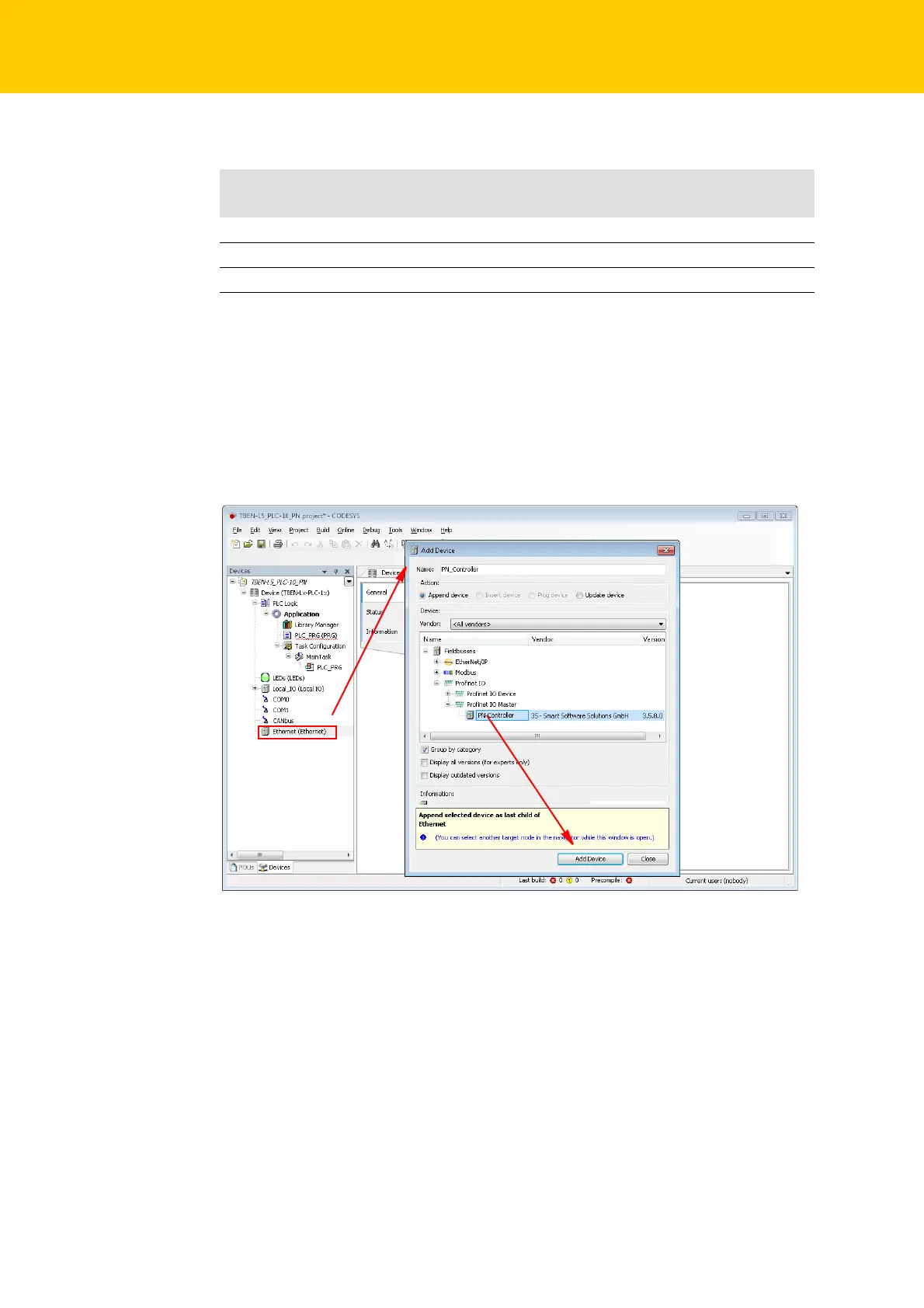

Fig. 7: Adding the PN-Controller
