turck CODESYS 3 User Manual

Using the Device as PROFINET Controller
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
20
3.3.5 Configuring the TBEN-S2-4IOL (IO-Link Master)
The TBEN-S2-4IOL is shown in the project tree as a modular slave with one basic slot and seven
empty slots.

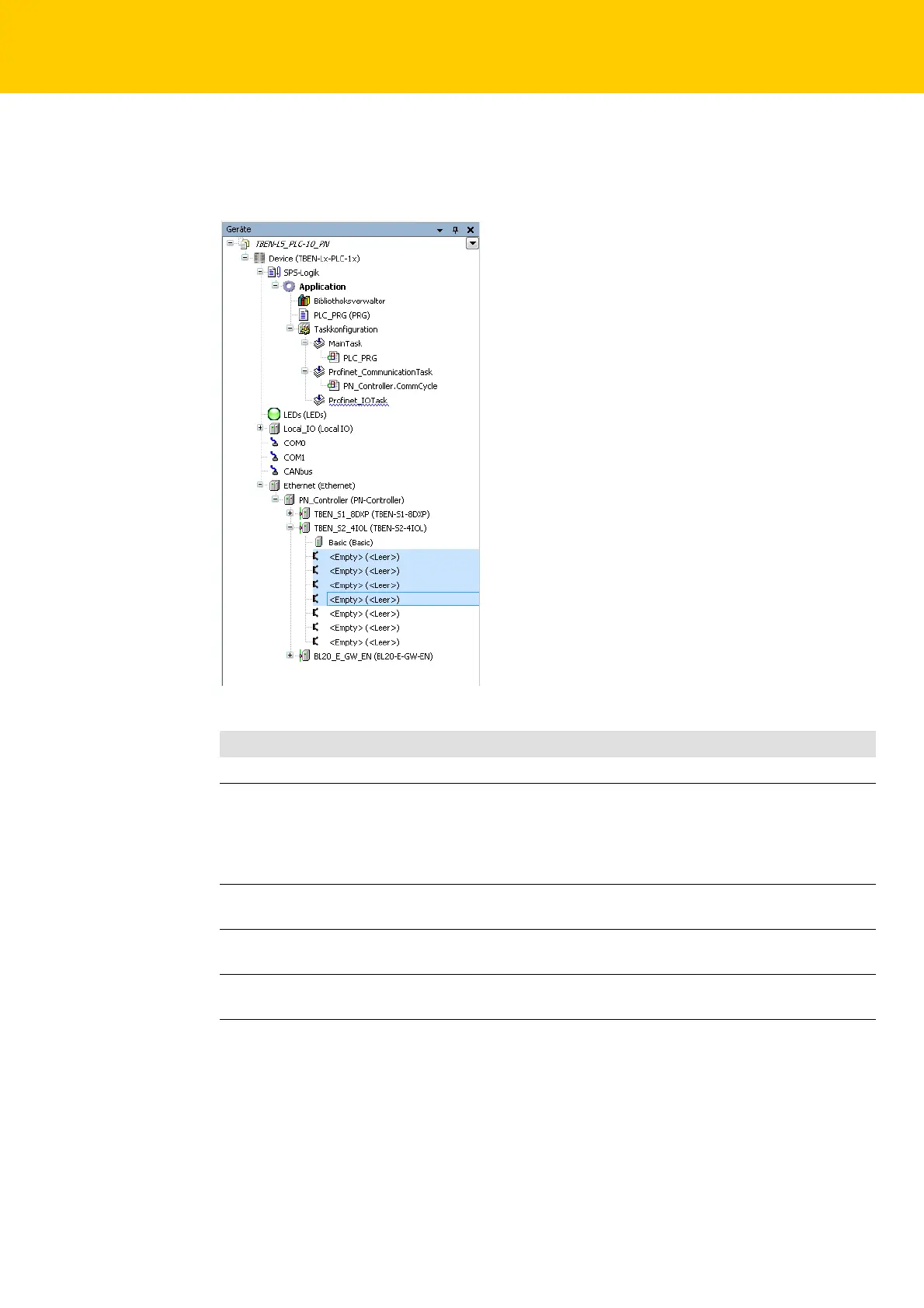

Fig. 15: TBEN-S2-4IOL in the project tree
Slot/empty slot Meaning
1
Basic
DXP-channels of the device (DXP 2, 4, 6, and 8)
2 - 5 IO-Link ports For the configuration of the four 
IO-Link ports.
Specific or generic configuration of the IO-Link
ports (see Configuring the Empty Slots 2 – 5 (IO-
Link-Ports) (page 21)).
6 Diagnostics Optional mapping of the diagnostics (IO-Link and
DXP-diagnostics) into the master's process image.
7 IO-Link Events Optional mapping of the diagnostics (IO-Link and
DXP-diagnostics) into the master's process image.
8 Module status Optional mapping of the diagnostics (IO-Link and
DXP-diagnostics) into the master's process image.
