41
2017/06
Configuring the in- and output data
Configure the in- and output data,
which have
to be exchanged wi
th the CODESYS-device.
NOTE
The configuration
of the data in TIA Portal has to be do
ne in reverse order compared to
the configuration in CODESYS. Input data
in
TIA Portal are output-data in CODESYS, and
vice ve
rsa.
The configured data le
ngths have to match.

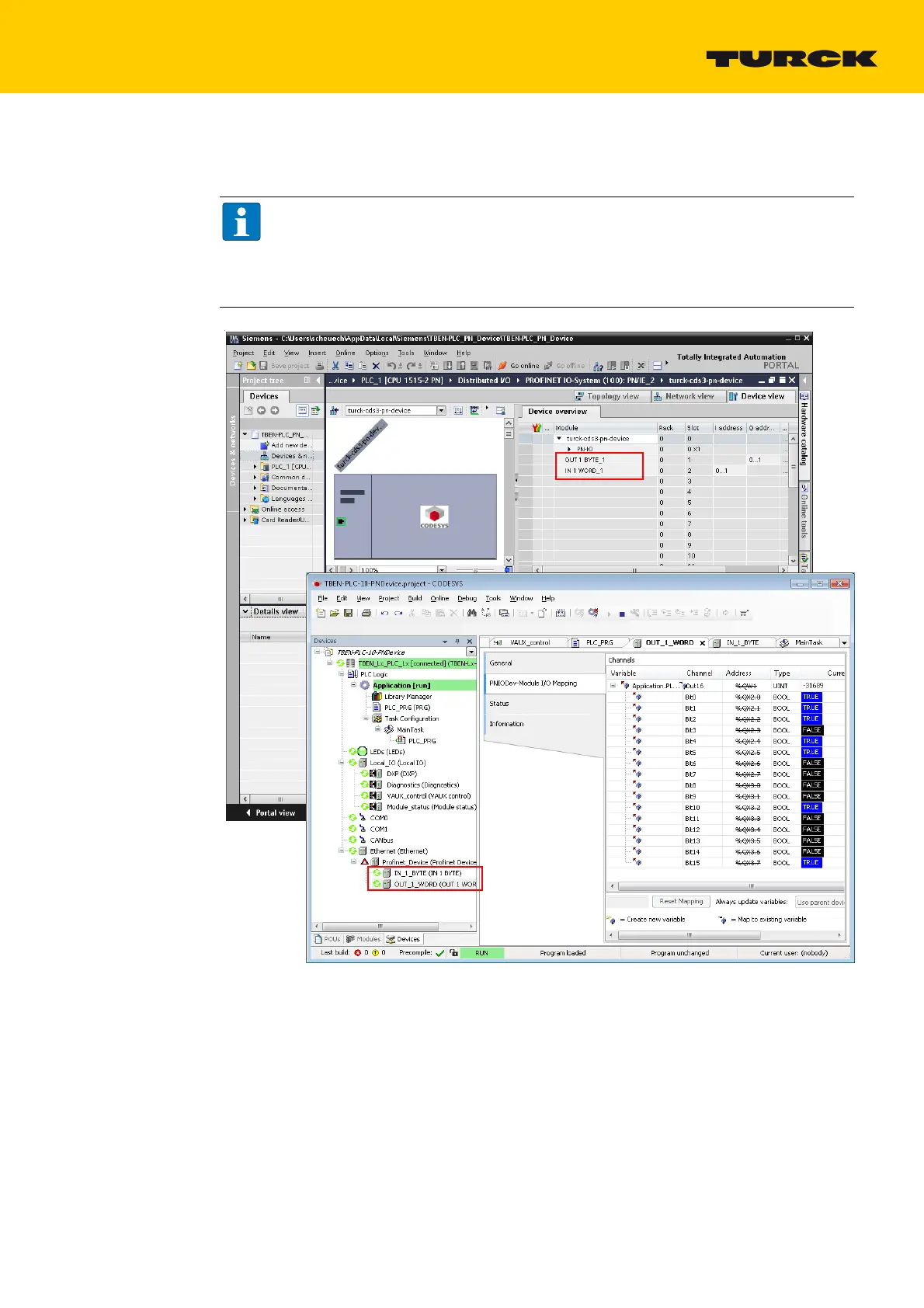

Fig. 35: Configurat
ion of in- and output data in TIA Port
al/CODESYS
