Using the Device as PROFINET Controller
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F
+49 208 4952-264 |
more@t
urck.com | www.turck.com
14
3.3
Configuring PROFINET Devices
In this example, the following Turck multipr
otocol devices are used as PROFI
NET devices:
–
TBEN-S1-8DXP
–
TBEN-S2-4IOL
–
BL20-E-GW-EN
3.3.1
Installing the GSDML-files
Download the G
SDML files from w
ww.tur
ck.com
and install them in the CODESYS Device
Repository.

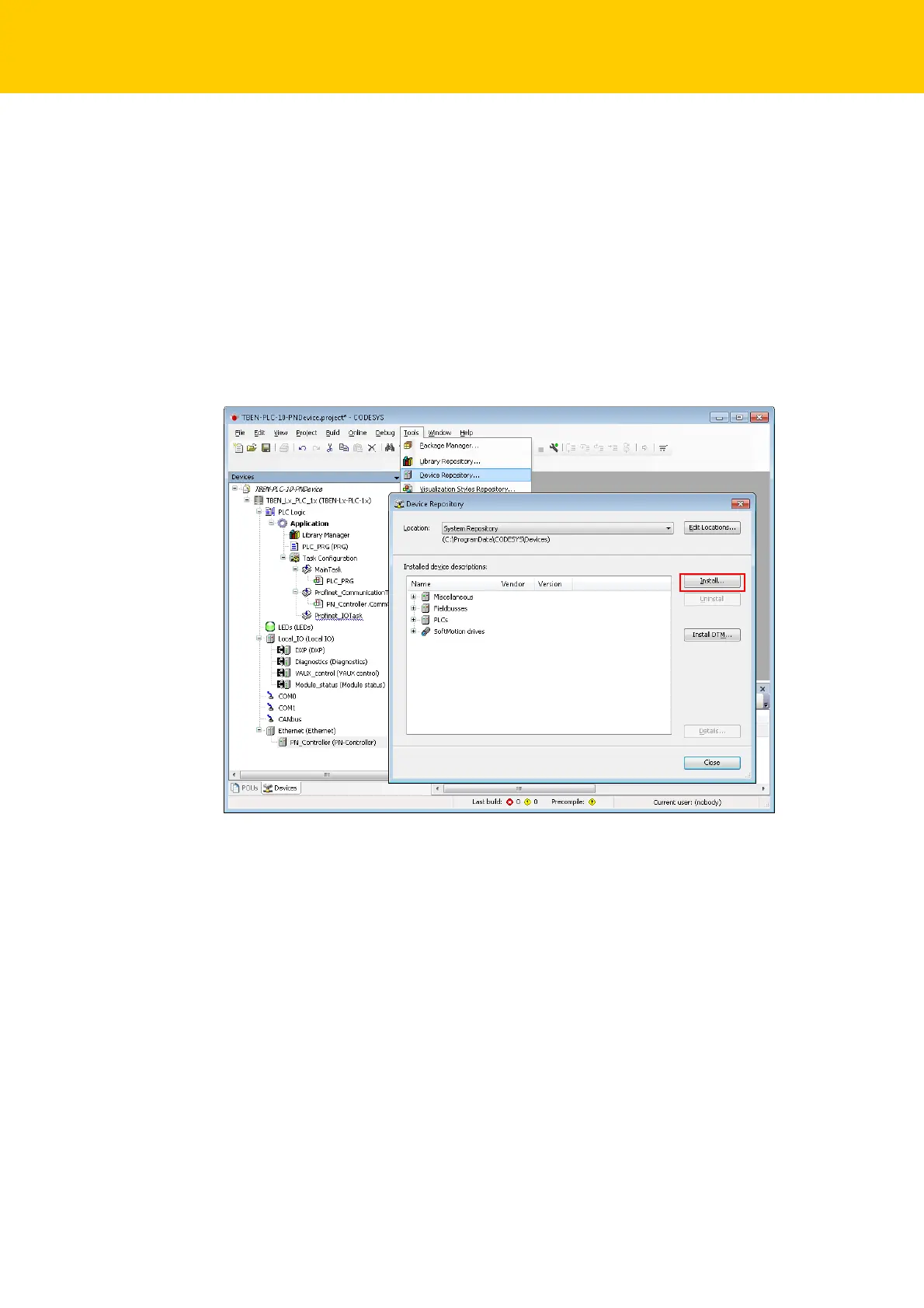

Fig. 9: CODESYS Device Repository
