2017/06
3.3.4
Configuring
the BL20 station
For modular PROFINET devices, first of all select the gateway (in this example the BL20-E- GW-
EN).
Right-click the gateway and use the "Add device"
function to add the I/O modules in the
order
in which they foll
ow the gateway.

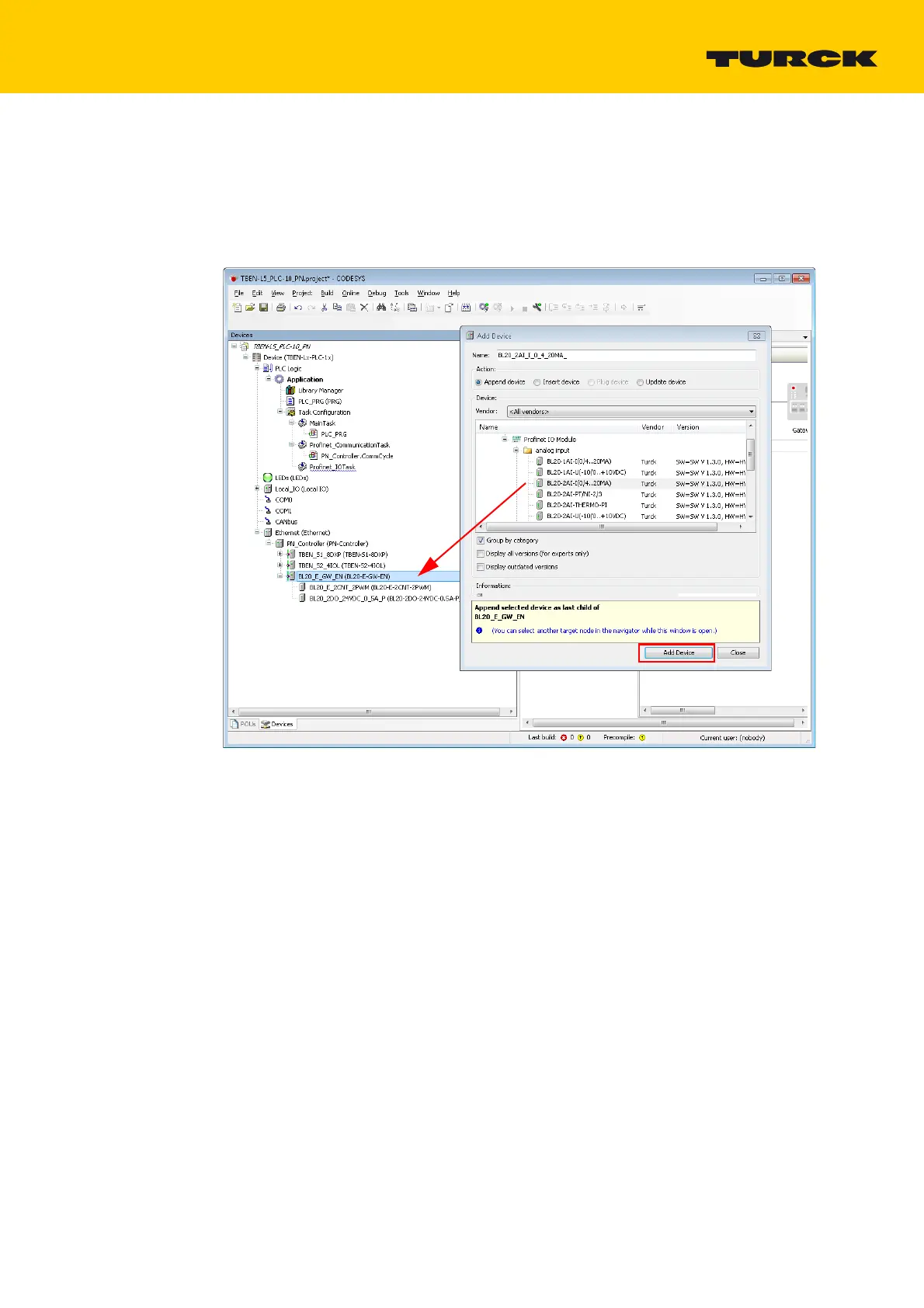

Fig. 14: Adding I/O modules to the BL20 gateway
20
22
