INC
INC
DEC
DEC
-
-
+
+
Start
Enter
Batt type
Stop
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
The left side of the first line shows the type of battery you
choose. The value on the left of the second line of the
charger is current user set. After setting the current and
voltage, press Start/Enter key for more than 3 seconds to
start the process.(charge current: 0.1-10.0A, voltage: 3.7-
22.2V).
This displays the number of cells you set up and the
processor detects. R shows the number of cells detected by
the charger and S is the number of cells set by you at the
previous screen. If both numbers are identical you can start
charging by press Start/Enter button. If not, press Batt
Type/Stop button to go back to previous screen to carefully
check the number of cells of the battery pack before going
ahead.

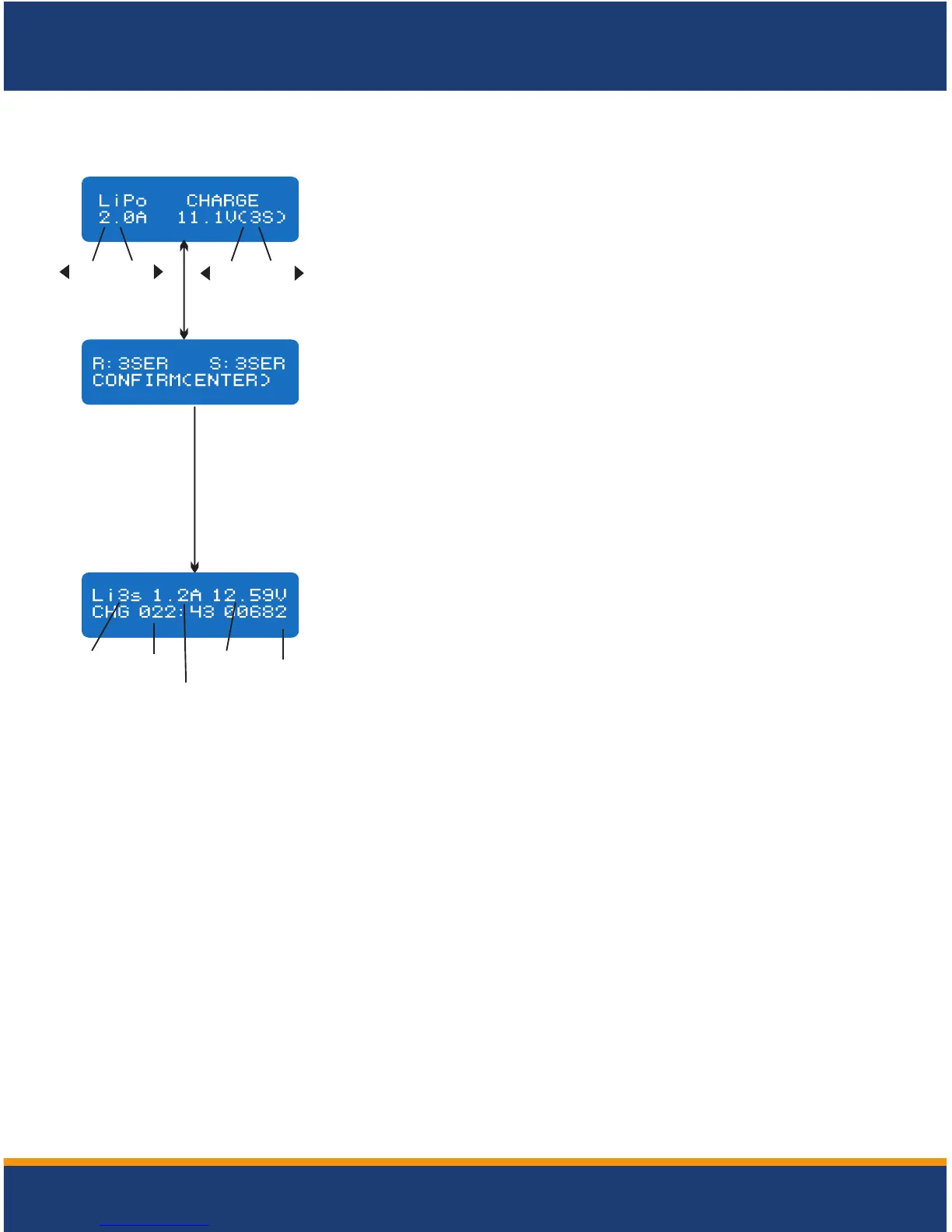

This screen shows the real-time status during charge
process. Press Batt Type/Stop key once to stop the charge
process.
This charging mode is for charging Li-Po/Ion/Fe battery without balance lead.
Charging lithium battery in the charge mode
'> 3 seconds '
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
