Battery
type
DEC
-
Batt type
Stop
Elapsed
time
INC
+
Charge
current
Battery
voltage
DEC
Start
Enter
-
INC
+
Charged
capacity

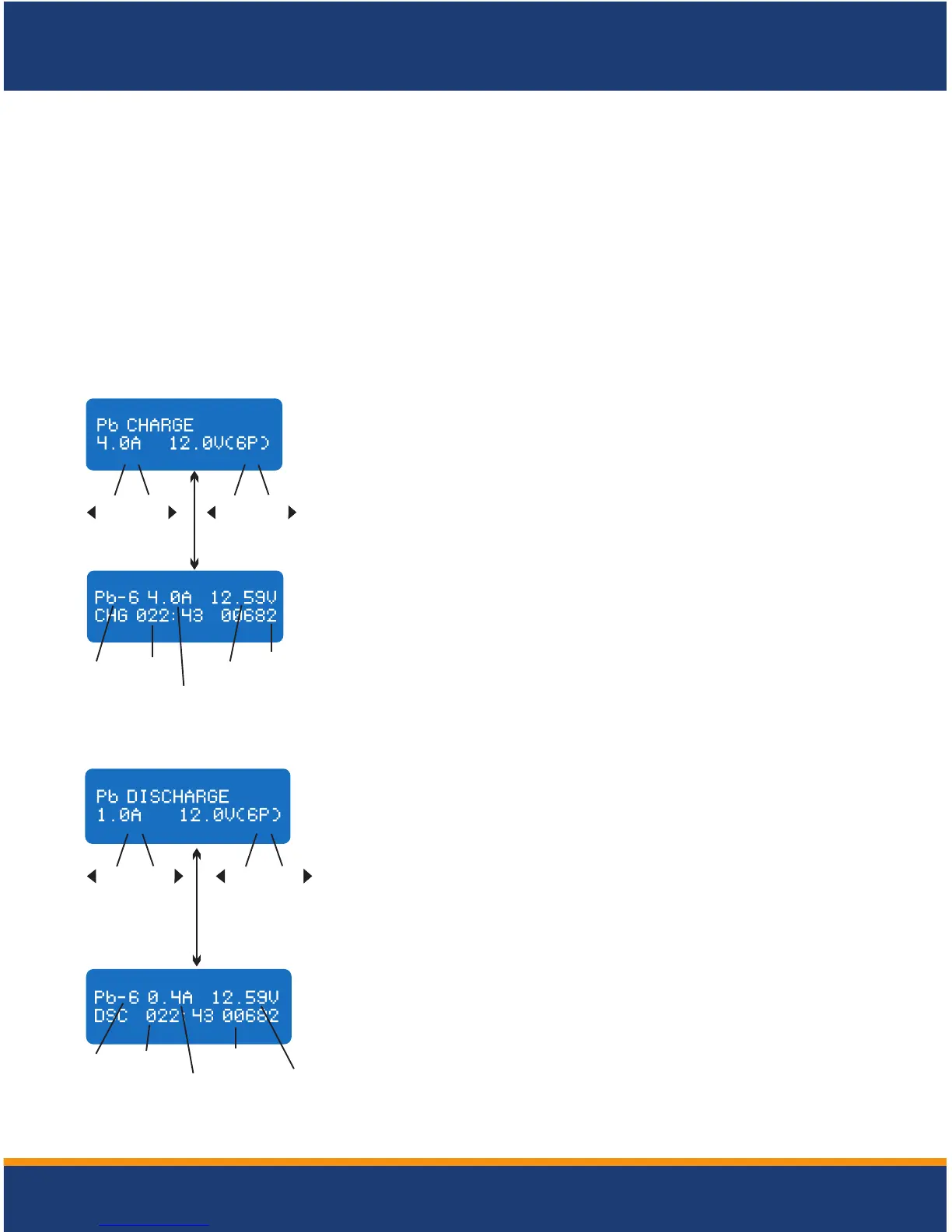

Set up the charge current on the left and nominal voltage on
the right. Range of current is 0.1-10.0A, the voltage should
match the battery being charged. Press Start/Enter key for
more than 3 seconds to start charging.
The screen displays the real-time discharging status. Press
Start/Enter key to alter discharge current. Press Start/Enter
key again to store the parameter value you set. Press Batt
Type/Stop key to end the program.
This program is only suitable for charging Pb lead-acid battery with nominal
voltage from 2 to 24V. Pb lead-acid battery is completely different from NiCd/NiMH
battery. These batteries can only deliver current lower in comparison to their capacity. The
same restriction applies to the charging process. Consequently, the optimum charge
current can only be 1/10 of the capacity. Pb battery can not be used for fast-charging,
please follow the instructions provided by the battery manufacturer. Due to the chemistry
characteristic of Pb battery, the cut off point may be difficult to detect sometimes. We
recommend user to use CAPACITY CUT OFF feature to protect the battery. You can
press Start/Enter key to make it blink and alter the value of parameters using INC or
DEC key, press Start/Enter key to store the value.
Charging Pb (lead-acid) battery in the charge mode
DEC
-
Batt type
Stop
INC
+
DEC
Start
Enter
-
INC
+
Set up the discharge current on the left and nominal voltage
on the right. Range of discharge current is 0.1-5.0A, the
voltage should match the battery being charged. Press
Start/Enter key for more than 3 seconds to start charging.
The screen displays the real-time discharging status. Press
Start/Enter key to alter discharge current. Press Start/Enter
key again to store the parameter value you set. Press Batt
Type/Stop key to end the program.
Battery
type
Elapsed
time
Discharge
current
Battery
voltage
Discharged
capacity
Discharging of the Pb battery
'> 3 seconds '
'> 3 seconds '
