14
The part TX, including the lower connection panel LCM, must be placed facing the available
power supply outlet.

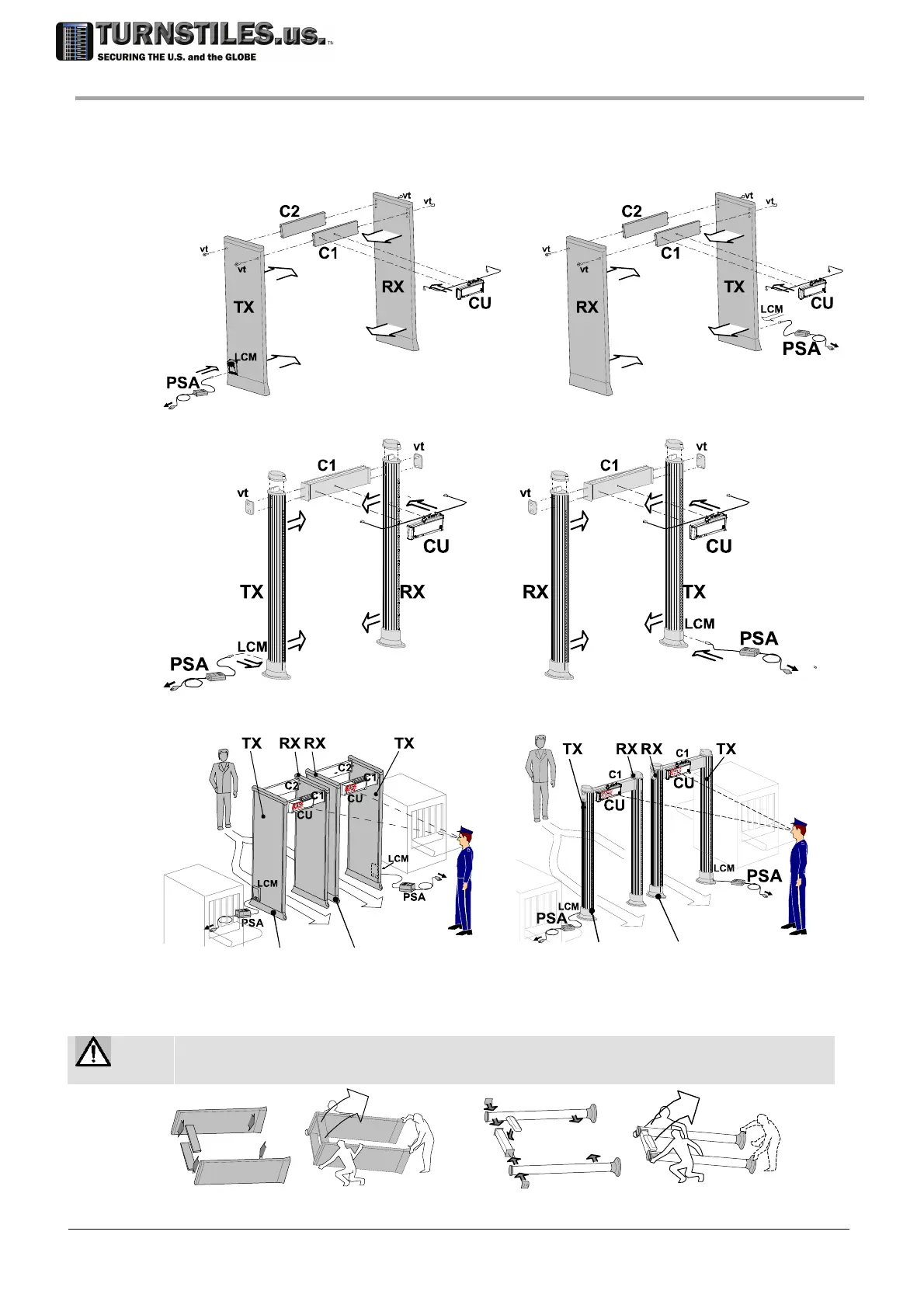

According to the previous rules, the archway can be assembled in two different configurations
(Configuration A or Configuration B), swapping the position of the TX and RX parts.
Configuration A Configuration B
Configuration A Configuration B
XRU
XRU
XRU
XRU
Configuration A Configuration B Configuration A Configuration B
Typical application fitted with two Metal Detectors and two X-Ray Units
It is recommended that the archway is assembled on the floor, in horizontal position. Whenever needed,
and specifically when lifting up the assembled archway from the floor and moving it to the final location,
two or more people are mandatory.
