Tuthill KINNEY KD Series User Manual

Operator’s Manual 1808 022016 ENG
7
04
Description
KD-3 0 KD-5 0
Free Air Displacement 33 CFM (5 6 m
3
/h) 5 2 CFM (88 m
3
/h)
Inlet Connection (NPT) 1-1/2 in. (38 mm) 1-1/2 in. (38 mm)
Discharge Connection (NPT) 1-1/4 in. (32 mm) 1-1/4 in. (32 mm)
Pump Speed (RPM) 5 7 1 900
Motor Speed (RPM) 1,7 25 1,7 25
Motor Horsepower 1-1/2 in. (38 mm) 2 in. (5 1 mm)
Table 4-1 – Pump Specifi cations
KD-3 0 BELT
DRIVE
KD-3 0 DIRECT
DRIVE
KD-5 0 BELT
DRIVE
KD-5 0 DIRECT
DRIVE
Oil Capacity (K inney AX) 4 qt (3.8 L) 4 qt (3.8 L) 12 qt (11.4 L) 12 qt (11.4 L)
Weight Complete Pump 200 lb (91 kg) 65 0 lb (295 kg) 230 lb (104 kg) 65 0 lb (295 kg)
Height 27 in. (69 mm) 37 in. (94 mm)
32-1/2 in.
(83 mm)
34-1/2 in.
(88 mm)
Width
20-1/2 in.
(5 2 mm)
18 in. (46 mm)
20-1/2 in.
(5 2 mm)
18 in. (46 mm)
Length 27 -7 /8 in. (7 1 cm)
44-1/4 in.
(112 cm)
28-5 /8 in. (7 3 cm)
42-1/4 in.
(112 cm)
Typical Noise Leve l @ 10 Torr < 85 dB A < 85 dB A < 85 dB A < 85 dB A
Table 4-2 – Complete System Specifi cations
The two rotary pistons pump in parallel and are
drive n by two eccentric cams keyed to a shaft. See
Figure 4-1 on page 7.

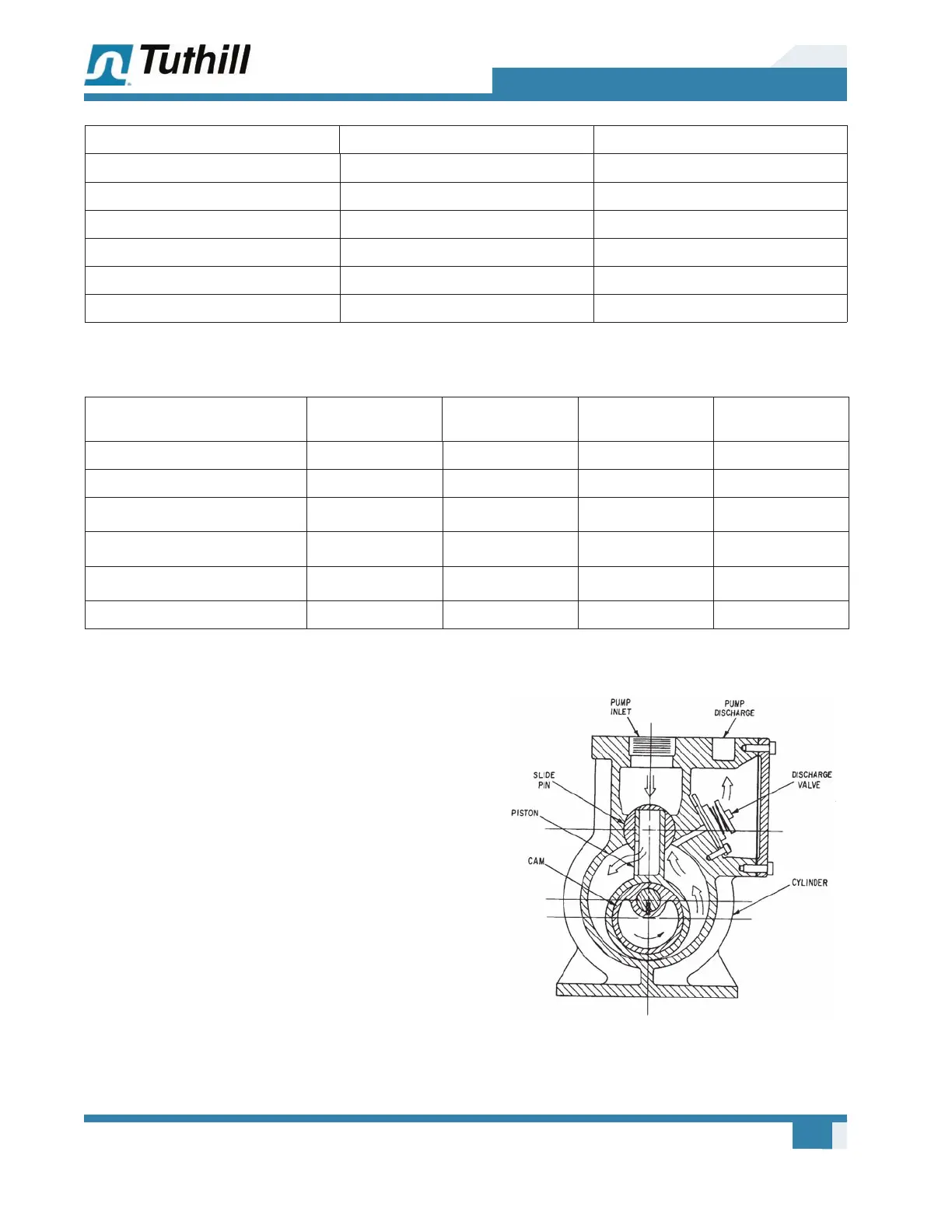

Figure 4-1 – Operating Cycle
