Operator’s Manual 1808 022016 ENG
16
07
Maintenance

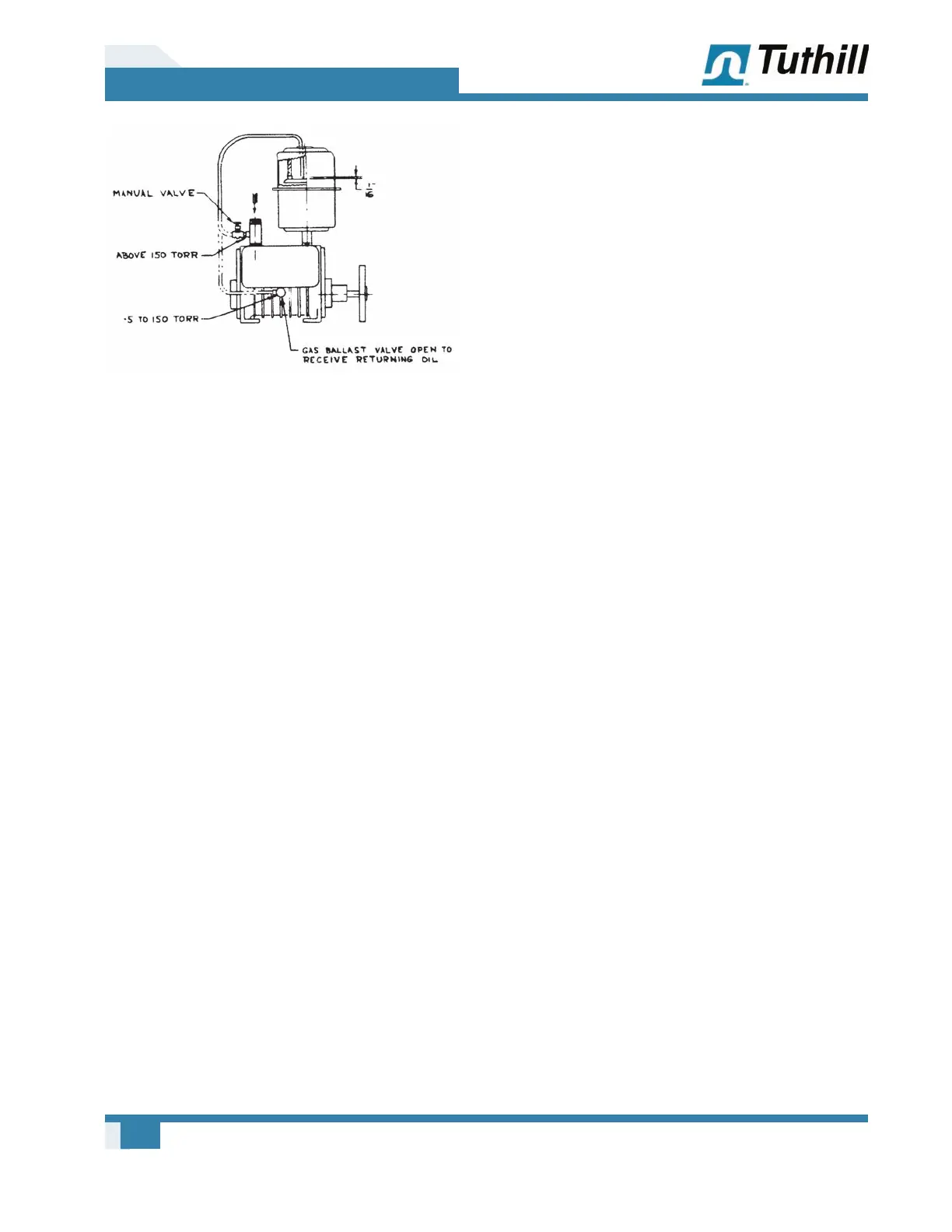

Figure 7-1 – Return Line
One of the following two areas can be selected for
the oil to return to the pump when operating above
Torr
• f the pump operating range is between and
Torr, the returning oil should enter the pump
through the gas ballast valve, in which case the
valve must be left open.
• hen the operating range is above Torr,
the returning oil should enter the pump at the
suction port area.
An alternative to the above arrangements is
to drain the collected oil into a container and
periodically return it to the pump through the oil
fi ll. This arrangement is preferred if the collected
oil contains a substantial amount of water. n this
event, leave the oil to stand until the oil and water
separate, at which time the water will be decanted,
before returning the oil to the pump. ith this
arrangement, take special care to keep the oil
clean.
