18.0 CONNECTOR PINOUTS

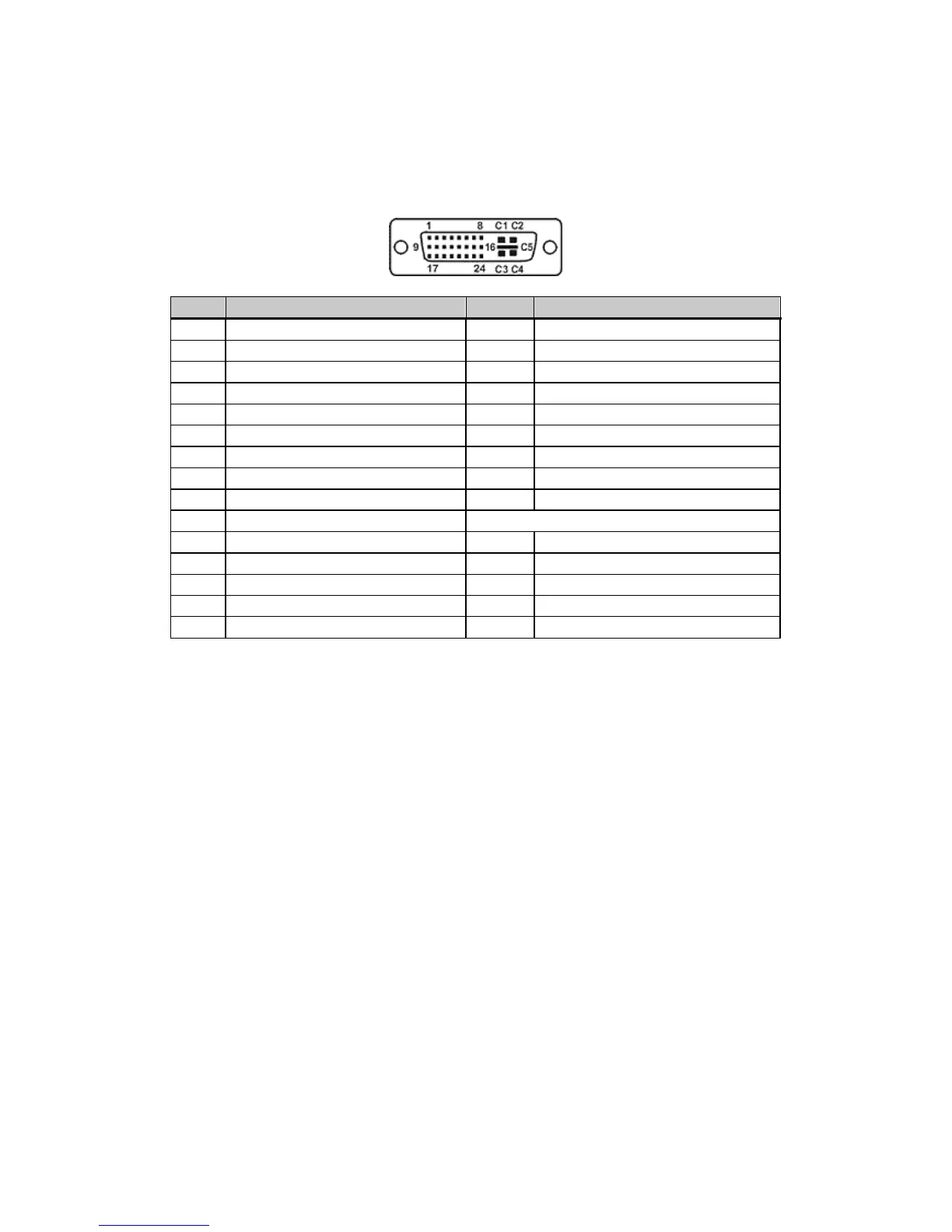

18.1 DVI-I connector
PIN# SIGNAL PIN# SIGNAL
1 T.M.D.S DATA 2- 16 HOT PLUG DETECT
2 T.M.D.S DATA 2+ 17 T.M.D.S DATA 0-
3 T.M.D.S DATA 2/4 SHIELD 18 T.M.D.S DATA 0+
4 Not used 19 T.M.D.S DATA 0/5 SHIELD
5 Not used 20 Not used
6 DDC CLOCK 21 Not used
7 DDC DATA 22 T.M.D.S CLOCK SHIELD
8 ANALOG VERT. SYNC 23 T.M.D.S CLOCK+
9 T.M.D.S DATA 1- 24 T.M.D.S CLOCK-
10 T.M.D.S DATA 1+
11 T.M.D.S DATA 1/3 SHIELD C1 ANALOG RED
12 Not used C2 ANALOG GREEN
13 Not used C3 ANALOG BLUE
14 +5V POWER C4 ANALOG HORZ SYNC
15 GND C5 ANALOG GROUND
18.2 RS232 / DB9 connector
1. 1 N/C
2. 2 RX (Receive data)
3. 3 TX (Transmit data)
4. N/C
5. GND (Signal return)
6. N/C
7. RTS (Request to send)
8. CTS (Clear to send)
9. N/C
18.3 4 Pin mini-DIN S-video connector (YC) input
1. Y (Luminance)
2. GND
3. GND
4. C (Chrominance)
