TVLogic F-7H mk2 User Manual

7. Other Functions
[5] Luma(Y’) Zone Check
• Color Pattern Type
- Displays the Luma(Y’) level of the input
image in colors.
- Y’ ≥ 100% : Pixels with higher Y’ level than
100 turn to red.
- Y’ ≤ 0% : Pixels with lower Y’ level than 0 turn
to green.
- Pixels with Y’ levels designated by the user
are displayed in following colors - yellow,
pink, cyan.
- Factory Default Y’ (Border line between pink
and yellow) level is 75% and the pink color is
assigned to pixels with Y’ level from 70% to
75%.
- Yellow color is assigned to pixels with Y’ level
from 75% to 85%, and Cyan from 60% to
70%.
- This function is designed for a better
performance in setting the exposure when
shooting with vDSLR cameras.
• Zebra Pattern Type
- Displays the pixels with designated Luma(Y’)
levels with zebra pattern.
- Y’ ≥ 100%: Pixels with Y’ level over 100% turn
to red diagonal stripes.
- Y’ ≤ 0% : Pixels with Y’ level under 0% turn to
green diagonal stripes.
- User dened Y’ levels are displayed as black
diagonal stripes.
- Factory Default Y’ level is 70% and the pixels
with Y’ level from 65% to 75% is displayed
with zebra pattern.
- Pixels with 10% of Y’ level is displayed as
black diagonal stripes.
- This function is designed for a better
performance in setting the exposure when
shooting with vDSLR cameras.

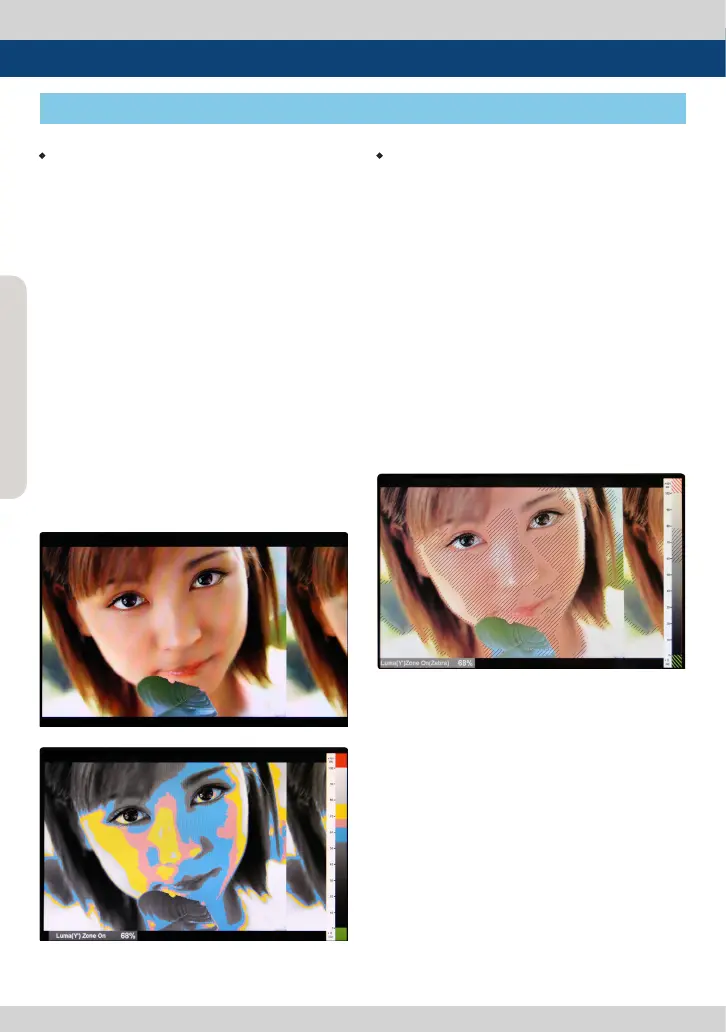

<Luma Zone Check OFF>
<Luma Zone Check ON_Color Pattern Type>
<Luma Zone Check ON_Zebra Pattern Type>
FHD High Bright Field Monitor 30
