7. Other Functions
[8] DSLR Scale
• This function is designed for some DSLR
cameras of Canon(7D) that output
dierent resolution from the operation
mode (StandBy, Record, Play Back)
• Select the Camera model in the [Display/
Vide]- [DSLR Camera Sel.] menu.
• CANON (5D/550D)
- In StandBy mode of Canon 5D Mark II, 1080i
of HD resolution is indicated. However, real
output resolution is 1620x1080 so blank
area is displayed on the screen because the
16:9 aspect ratio is not realized.
- In this case, use DSLR SCALE function to
enlarge the 1920x1080 image and display
full screen.
- In Recording mode of CANON 5D Mark II, the
output resolution is SD(480p).
- Although it is SD, the real output resolution
is 640x390 not 720x480.
※
Note
1. When you compare the circle chart or the
camera shooting chart with DSLR connected
monitor(HDMI) and HDMI to SDI Conversion
connected monitor, The function of Live/Rec
16:9 mode should be selected to compare
circle and it is equal to its actual. If the circle is
compared in Live/Rec Full mode, the output
of the circle is deformed.
2. Both the DSLR Camera connected monitor
and HDMI to SDI Conversion connected
monitor should be compared to circle in
Zeroscan mode. It is deformed if user selects
in Overscan and Underscan mode.

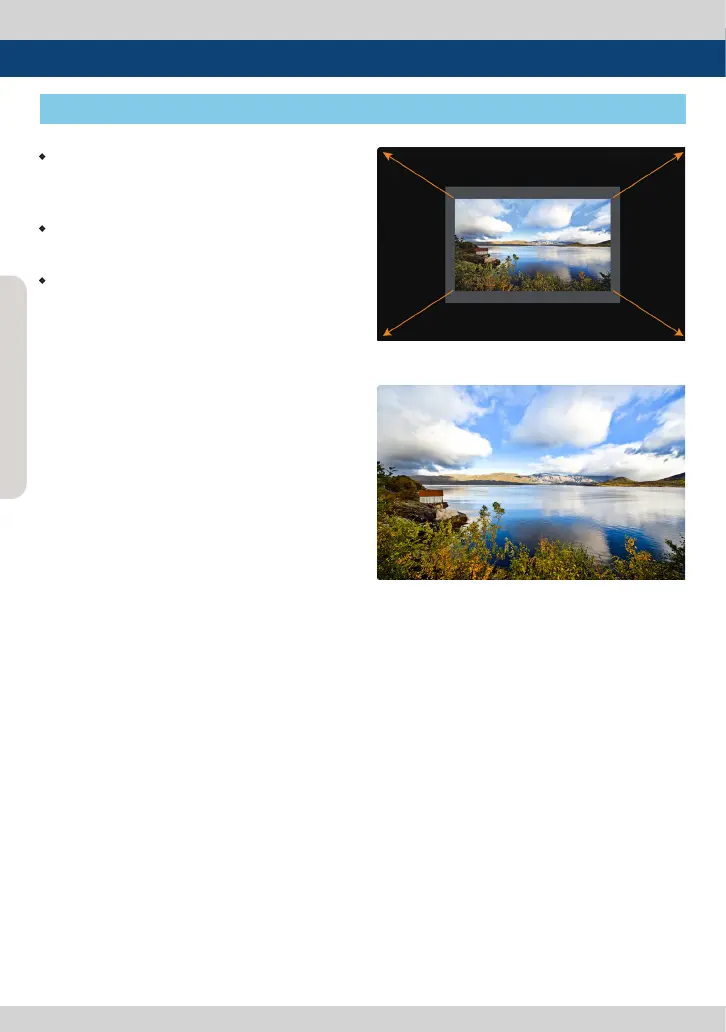

<DSLR Scale ON>
<DSLR Scale OFF>
FHD High Bright Field Monitor 32
