TVLogic LVM-075A User Manual

Multi Format LCD Monitor 23
● This product provides a REMOTE
CONTROL mode. The user may connect
RJ-45 jack to the REMOTE terminal on the
rear of the unit and designate a function
for each pin.
● The default settings are as follows:
PIN 1 : SDI-A Channel
PIN 2 : SDI-B Channel
PIN 3 : HDMI Channel
PIN 4 : TALLY R
PIN 5 : TALLY G
PIN 6 : User Scan
PIN 7 is POWER ON/OFF use only, PIN 8 is GND
- Use the ENTER button and UP/DOWN button
to set the desired function.

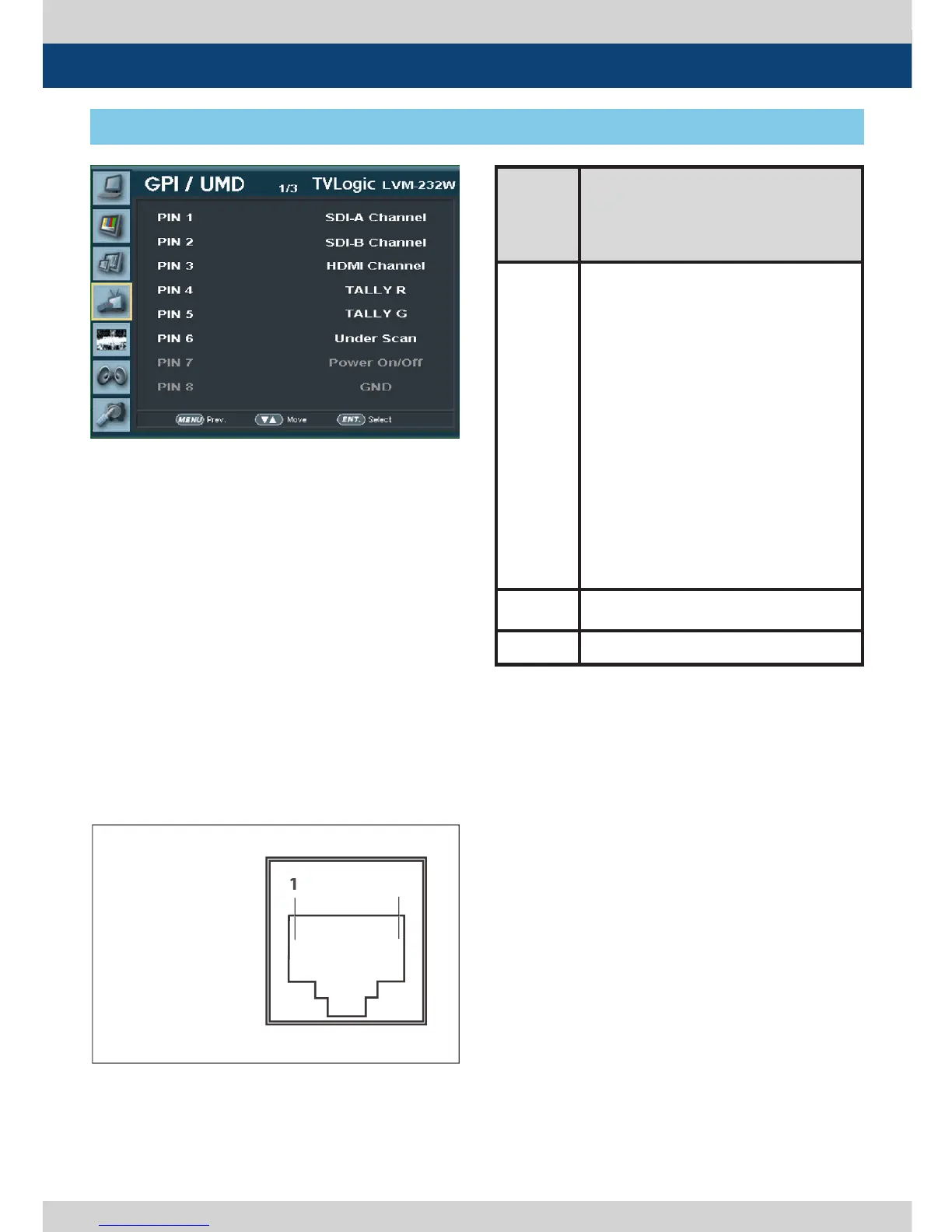

[4] GPI / UMD
5. Menu Operations
REM
O
TE (
R
J
-45
)
1:
P
in1
2
:
P
in2
3:
P
i
n
3
4:
P
in4
5: P
i
n5
6:
P
i
n
6
7:
P
in7
8
:
G
ND
1
8
Menu
Classi-
cation
Settable Values
PIN
1~6
NONE, ANALOG CHANNEL, HDMI
CHANNEL, SDI-A/B CHANNEL
TALLY RED, TALLY GREEN, BLUE
ONLY, UNDERSCAN, ASPECT
HVDELAY, 16:9 MARKER, 15:9
MARKER, 14:9 MARKER,
13:9 MARKER, 4:3 MARKER, 4:3 ON
AIR MARKER,
1.85:1 MARKER, 2.35:1 MARKER,
1.85:1 & 4:3 MARKER
CENTER MARKER, SAFETY AREA
80%, SAFETY AREA 88%,
SAFETY AREA 90%, SAFETY AREA
93%, SAFETY AREA 100%
Dynamic UMD, Focus Assist,
CC608(ANC), CC608(L21), CC708
PIN 7
POWER ON/OFF CONTROL
PIN 8
GND
