<Dynamic UMD Protocol (TSL V3.1)>
*
Transmission (18 Byte) (PC or Device -> Monitor)
*
[HEADER] : Display address (0~126) + 80 hex.
*
[CONTROL BYTE]
bit 0 : Tally 1 (1=on, 0=o)
bit 1 : Tally 2 (1=on, 0=o)
bit 2 : Tally 3 (1=on, 0=o)
bit 3 : Tally 4 (1=on, 0=o)
bit 4 : bright data (Not used)
bit 5 : bright data (Not used)
bit 6 : reserved (Not used)
bit 7 : cleared to 0 (Not used)
*
[DISPLAY DATA] : 16 displayable ASCII characters.
[4] GPI / UMD
5. Menu Operations

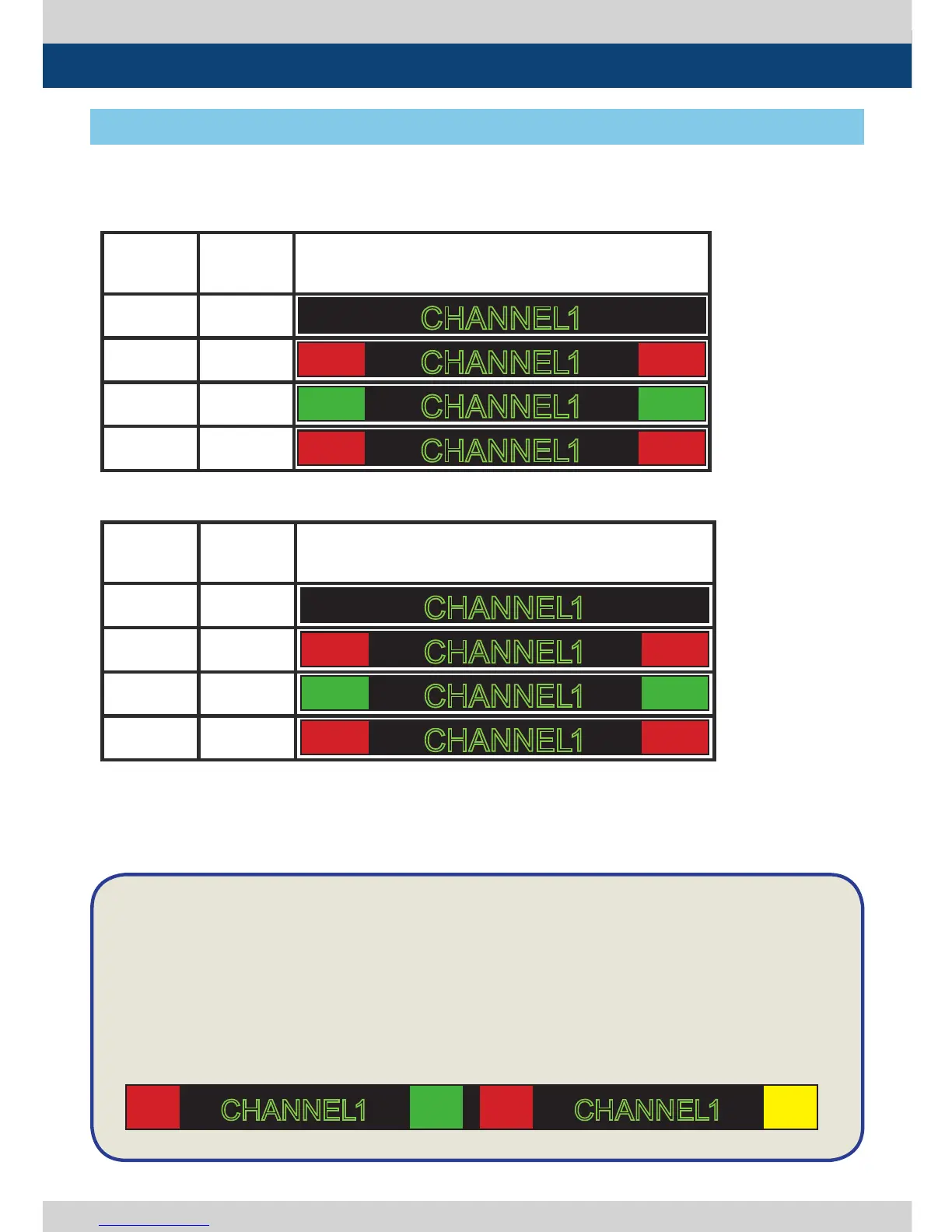

Bit 1
(Tally2)
Bit 1
(Tally1)
Operation
0 0
CHANNEL1
0 1
CHANNEL1
1 0
CHANNEL1
1 1
CHANNEL1
Bit 1
(Tally4)
Bit 1
(Tally3)
Operation
0 0
CHANNEL1
0 1
CHANNEL1
1 0
CHANNEL1
1 1
CHANNEL1
The following appearance of UMD DISPLAY is set as D-UMD(D-8C), D-UMD TALLY TYPE
and TALLY1 ~ TALLY4 COLOR.
D-UMD TALLY TYPE USER COLOR
TALLY1 COLOR RED
TALLY2 COLOR GREEN
TALLY3 COLOR RED
TALLY4 COLOR YELLOW
CHANNEL1 CHANNEL1
● Tally Type - Default
- S-8C(Single 8 Character) & S-16C(Single 16 Character)
● D-UMD TALLY TPYE – USER COLOR
- Color selections between TALLY1 ~ TALLY4.
- D-8C(Dual 8 Character)
