TVLogic LVM-075A User Manual

Multi Format LCD Monitor 33
[7] DISPLAY & SET

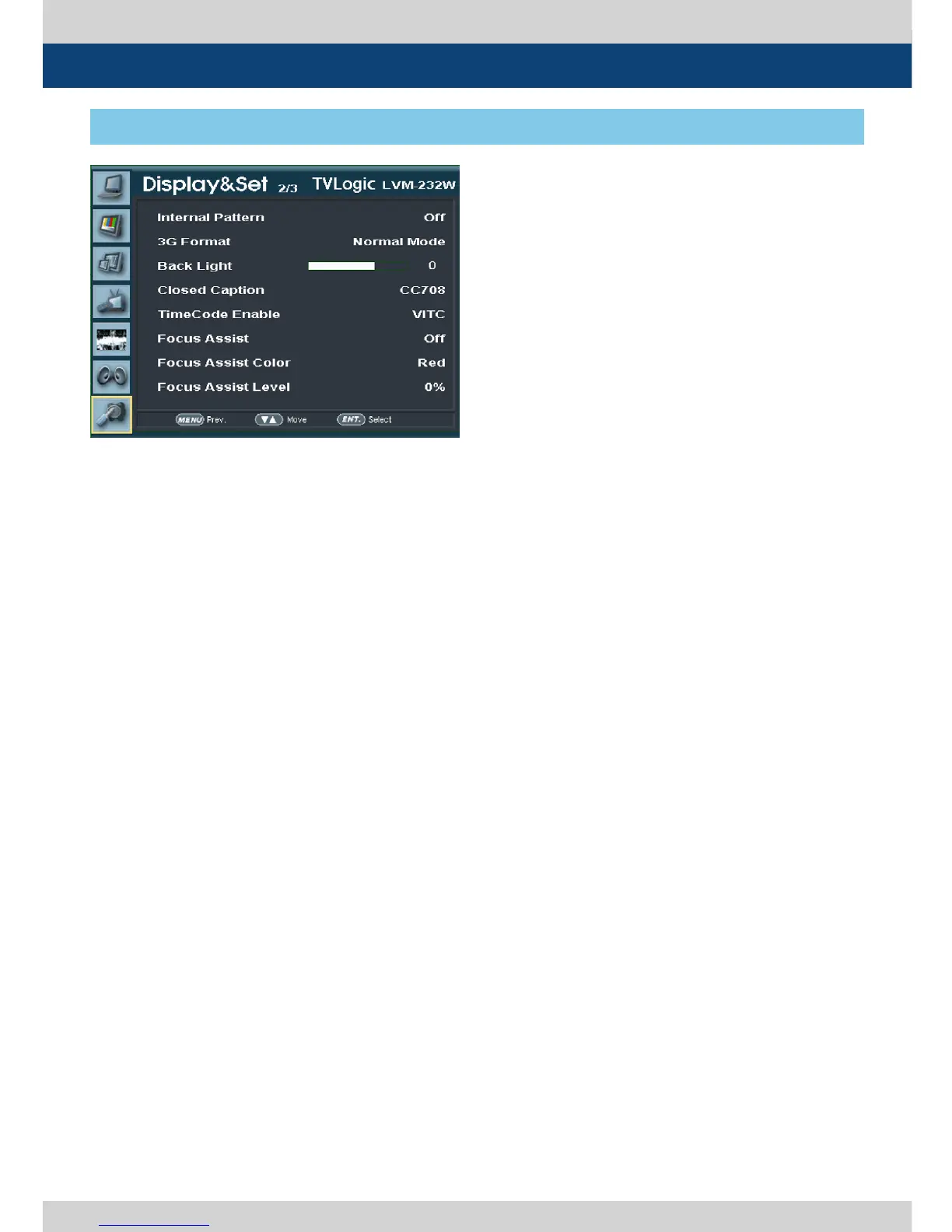

5. Menu Operations
● Internal Pattern
- The items displays internal Gray/
ColorBar+Pluge pattern.
- Gray pattern range is 0%~100% and is set by
every 5%.
● 3G Format
- You can select 3G FORMAT such as (NORMAL
MODE(AUTO - A 422 10BIT_YCbCr 50/60P),
A 444 10/12BIT_YCbCr, A 444 10/12BIT_RGB,A
422 12BIT_YCbCr, B 444 10/12BIT_ YCbCr, B
444 10/12BIT_RGB, B 422 12BIT_YCbCr, B 422
10BIT_YCbCr 50/60P) in order to support 3G
SDI A/B.
- It detects the signal automatically in
NORMAL MODE, when there is Payload
signal.
● Back Light
- The item shows current backlight value.
- When you Set Default, it returns to original
value.(Factory shipment.)
Available value is 0~100.
● Closed Caption
- The item controls closed caption.
- Available modes are OFF, 708, 608(LINE21)
and 608(ANC).
* 608 : CEA-608-B, 708 : CEA-708-C standards
display only.
● TimeCode Enable
- The item sets timecode.
- Available modes are OFF, VITC and LTC.
● Focus Assist
- The item makes you check which point your
camera’s focus is on easily by showing a
color on focused area.
- Available value changes in order of [(Mono)
On], [(Color) On] and [O].
* (Mono) On : Shows edge of focused area in a
designated color and the other area in black
& white applying Luma (Y’).
* (Color) On : Shows edge of only focused area
in a designated color.
● Focus Assist Color
- The item selects the color of FOCUS ASSIST.
- Available values are red, green and blue.
● Focus Assist Level
- The item controls focus assist level.
- Available values are between 0~100. Larger
value means greater detail detection.
- Focus assist color is presented when the
dierence between the border selections
exceeds the selected value.
- The feature is only available when FOCUS
ASSIST mode is selected. FOCUS
ASSIST mode can be selected by pressing
[BLUE ONLY/MONO] button.
