TVLogic LVM-075A User Manual

Multi Format LCD Monitor 43

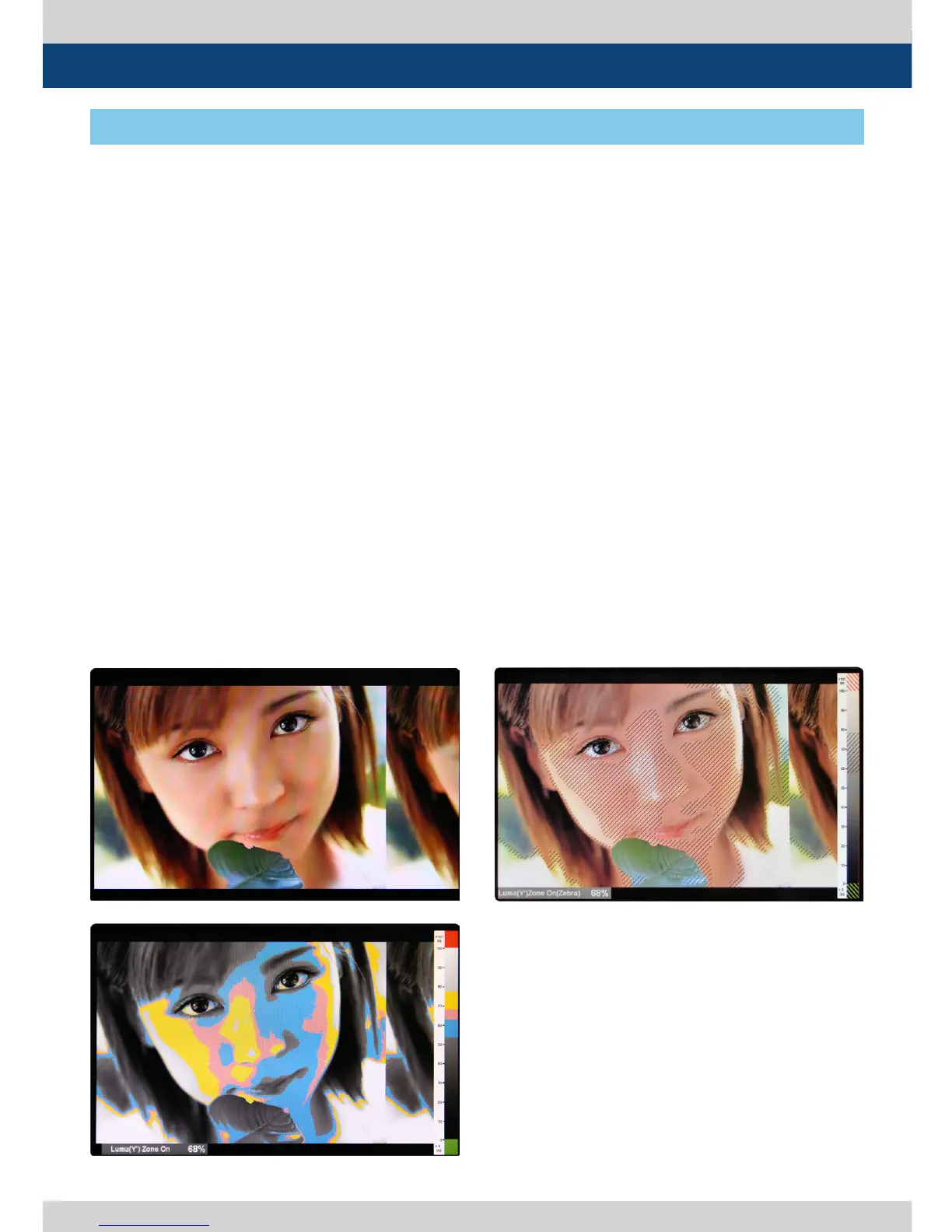

<Luma Zone Check OFF>
<Luma Zone Check ON_Color Pattern Type>
<Luma Zone Check ON_Zebra Pattern Type>
[6] LUMA(Y') ZONE CHECK
● Color Pattern Type
- Displays the Luma(Y’) level of the input
image in colors.
- Y’ ≥ 100% : Pixels with higher Y’ level than
100 turn to red.
- Y’ ≤ 0% : Pixels with lower Y’ level than 0 turn
to green.
- Pixels with Y’ levels designated by the user
are displayed as following colors - yellow,
pink, cyan.
- Factory Default Y’ (Border line between pink
and yellow) level is 75% and pink color is
assigned to pixels with Y’ level from 70% to
75%.
- Yellow color is assigned to pixels with Y’ level
from 75% to 85%, and Cyan from 60% to 70%.
- This function is designed for better
performance in setting the exposure of
lighting when shooting with vDSLR cameras.
● Zebra Pattern Type
- Displays the pixels with designated Luma(Y’)
levels with zebra pattern.
- Y’ ≥ 100%: Pixels with Y’ level over 100%
turn to red diagonal line.
- Y’ ≤ 0% : Pixels with Y’ level under 0% turn to
green diagonal line.
- User dened Y’ levels are displayed as black
diagonal line.
- Factory Default Y’ level is 70% and the pixels
with Y’ level from 65% to 75% is displayed
with zebra pattern
- Pixels with 10% of Y’ level is displayed as
black diagonal line.
- This function is designed for better
performance in setting the exposure of
lighting when shooting with vDSLR cameras.
8. Other Functions
