TVLogic LVM-075A User Manual

28 Multi Format LCD Monitor

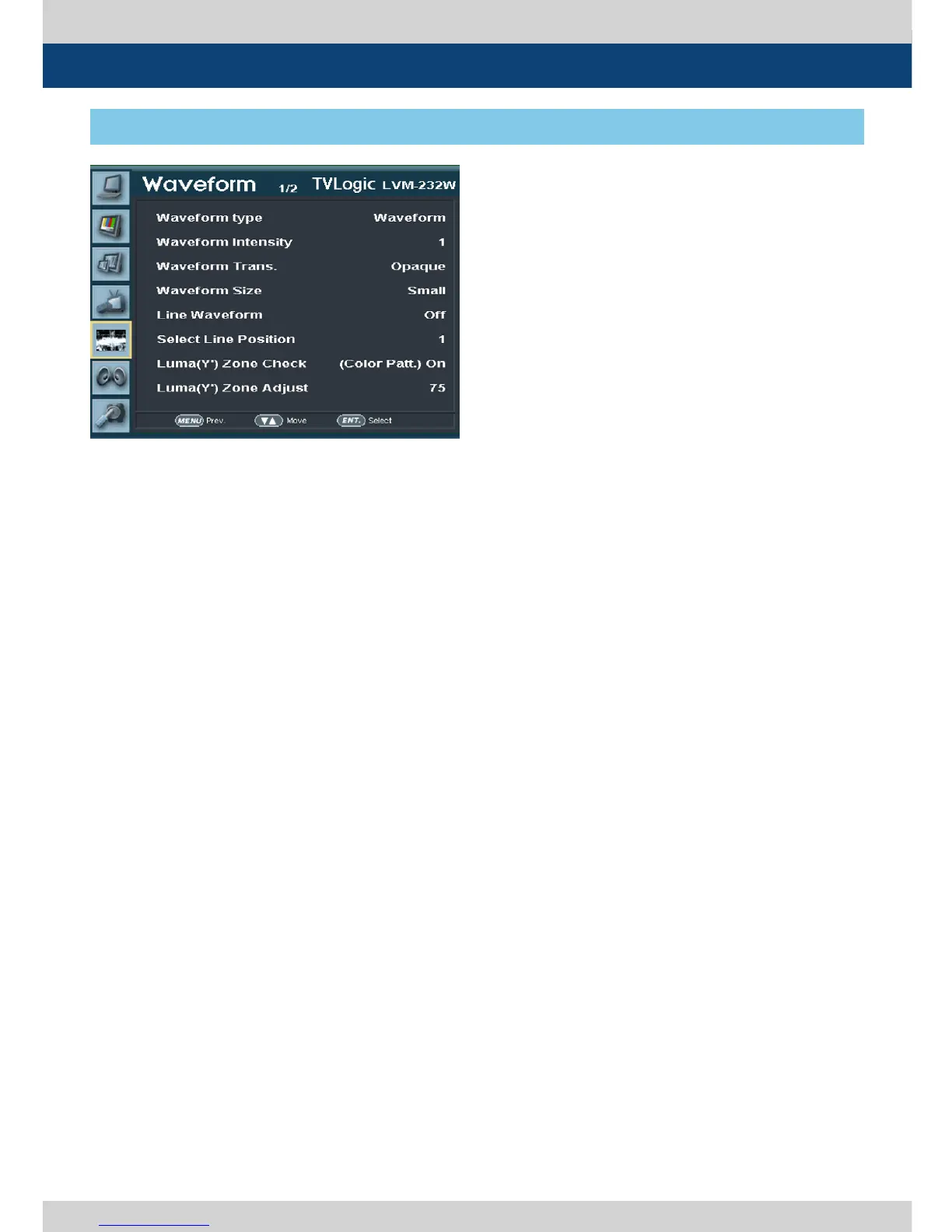

[5] WAVEFORM
5. Menu Operations
● Waveform type
- The item sets Waveform and Vectorscope.
- The operation order is WAVE FORM >
VECTOR SCOPE > WAVE FORM WIDE > WAVE
FORM YCbCr > WAVE_VECTOR > FULL
WAVEFORM(Y) > FULL VECTORSCOPE.
*
Waveform : Displays the shape and form of
luminance level of a signal.
*
Vectorscope : Displays color components of
the input signals.
It is divided into 2 kinds depending on HD
input and SD input. 100% and 75% graphics
show in a picture.
*
Waveform YCbCr : Displays the components
of luminance level and Cb/Cr components of
a signal.
*
Wave_Vector : Displays Waveform(Y) and
VectorScope at the same time.
*
Full waveform(Y) : Displays Waveform(Y) in a
whole screen.
*
Full Vectorscope : Displays Vectorscope in a
whole screen.
● Waveform Intensity
- The item controls the brightness of the
WAVEFORM/VECTOR display.
- Available values are between 1 ~ 63. The
higher the number the brighter the
waveform will be.
● Waveform Trans.
- The item controls the transparency level of
the WAVEFORM/VECTOR.
- Available values are OPAQUE and TRANS.
*
If the option is set to OPAQUE, the main
OSD will overlap with the waveform/vector.
However, it will automatically display it
as transparent and goes back to opaque if
the main OSD disappears.
● Waveform Size
- The item controls the size of WAVEFORM/
VECTOR.
- Available modes are SMALL, LARGE and FULL.
● Line Waveform
- Selects if the monitor shows the whole data
from the picture or the data from a certain
line of the picture when WAVEFORM/
VECTOR functions.
